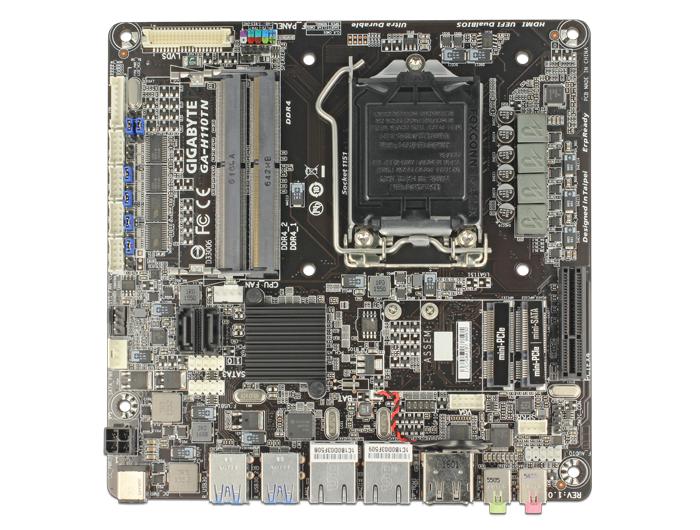

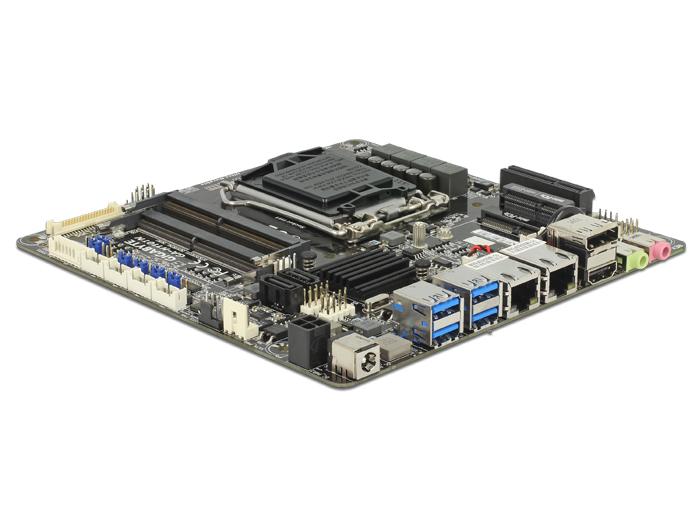

Description:
Processor overview
Specification:
24/7 Operation - Extended Lifecycle up to 5 Years
Processor socket LGA 1151 for:
Intel® Core⢠i7 / i5 / i3, Intel® Pentium, Intel® Celeron - L3 cache
Chipset: Intel® H110 Express
Memory socket:
2 x DDR4 SO-DIMM up to 32 GB, supports 2133 MHz,
dual channel memory architecture
(Due to a Windows 32bit operating system limitation, when more
than 4 GB of physical memory is installed, the actual memory size
displayed will be less than the size of the physical memory installed.)
LAN: 2 x Intel® GigaLAN (10/100/1000)
Audio: Realtek ALC887 5.1/7.1 channel HD
Graphics:
DiplayPort (Maximum resolution 4096 x 2304@60 Hz)
HDMI (Maximum resolution 4096 x 2160@24 Hz)
Expansions slots:
1 x PCIe x 4 (Gen 3)
1 x Mini PCIe (half size) (Gen 2)
Storage:
2 x SATA 6Gb/s
1 x mSATA (can also work as mini PCIe Gen 2)
Internal I/O:
1 x CPU fan header
1 x System fan header
2 x SATA 6 Gb/s
1 x SATA power connector
1 x Front panel header
1 x Front panel audio header
1 x battery cable header
2 x USB 2.0 header
4 x Serial port header (2 x RS232 - 2 x RS232/422/485)
4 x Serial port power select jumper
1 x D-Sub header
1 x Digital microphone header
1 x GPIO header
1 x LVDS header
1 x LVDS drive voltage jumper
1 x Flat panel display header
1 x Flat panel display power jumper
1 x Flat panel display switch header
1 x Backlight switch header
1 x Speaker header
1 x Buzzer header
1 x Clear CMOS jumper
1 x Chassis intrusion header
1 x 4 pin ATX 12V power connector

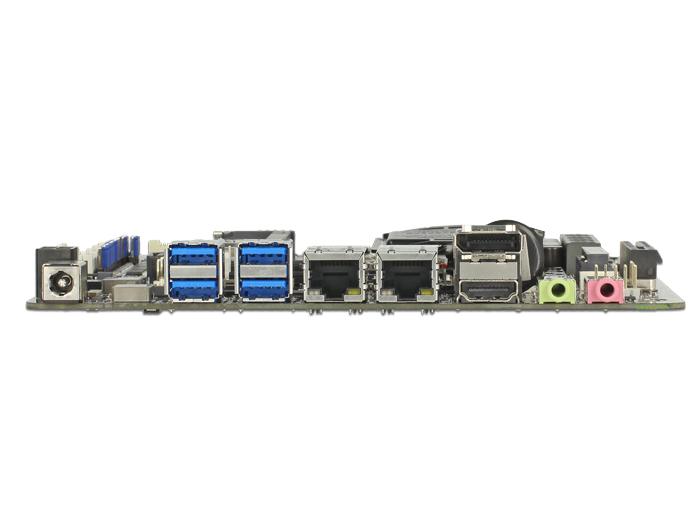

External I/O:
1 x HDMI
1 x DisplayPort
4 x USB 3.0
2 x GigaLAN (RJ45)
2 x Audio (Line out / Mic in)
Operating temperature: Industrial Grade -10°C - 60°C
Power supply requirements: Input PWR: 12/19-24V DC-In
Form factor: Mini ITX 17cm x 17cm
System requirements:
Package content:
1 x Mainboard

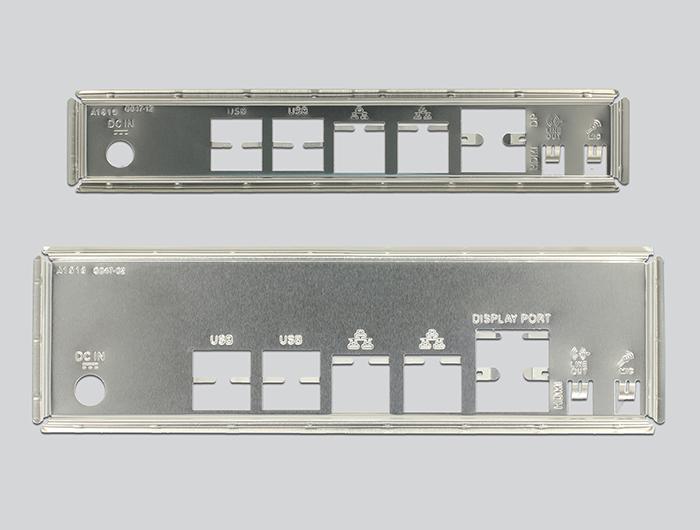

1 x I/O shield - Mini-ITX
1 x I/O shield - Thin Mini-ITX
1 x Driver DVD

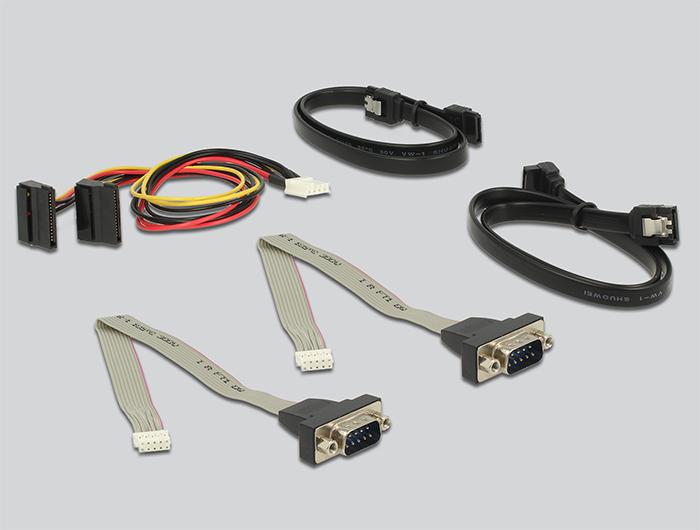

2 x Serial cable
2 x SATA cable
1 x SATA power cable
1 x VGA cable
1 x Manual
