Description:
Specification:

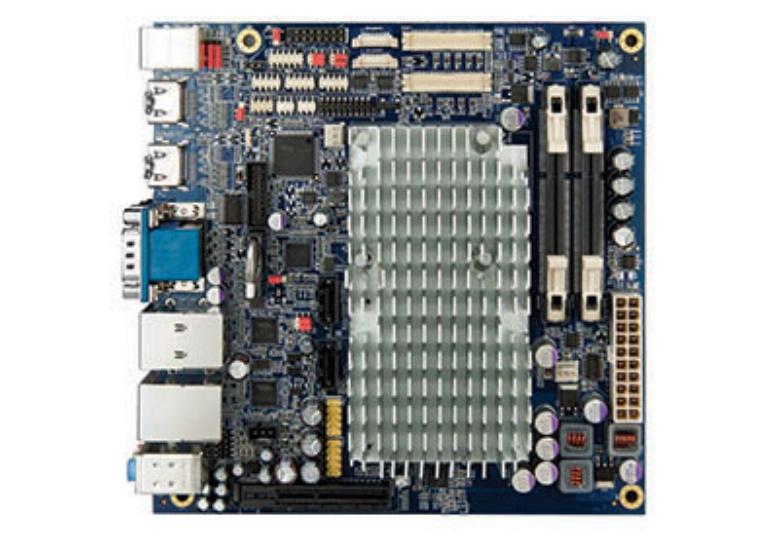

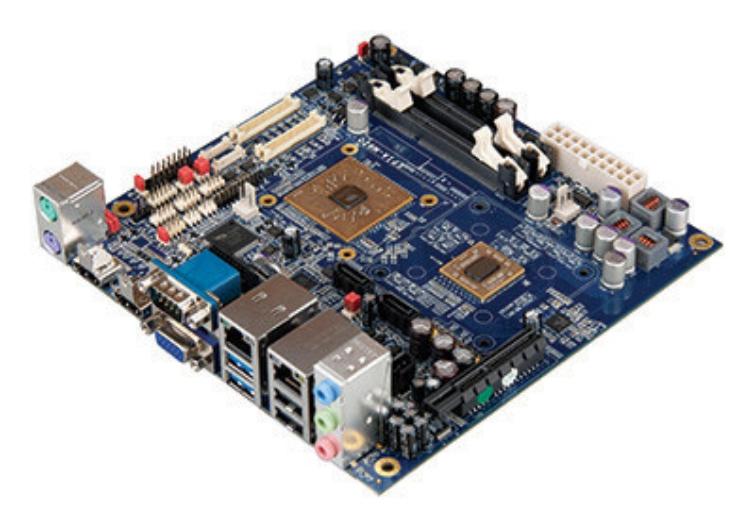

Processor: 1.6 GHz VIA EDEN X4 Quad Core (Fanless)
Chipset: VIA VX11H Media System Processor
BIOS: AMI Aptio UEFI BIOS, 4MB Flash
Memory socket: 2 x DDR3 1333 SODIMM up to 8GB memory per slot
Graphics: Integrated Chrome® 640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
LAN: Realtek RTL8111G VIA VT6130
Audio: VIA VT2021 High Definition Audio Codec
Super I/O: Fintek F71869E
Expansion slot: 1 x PCIe x4
Storage: 2 x SATA

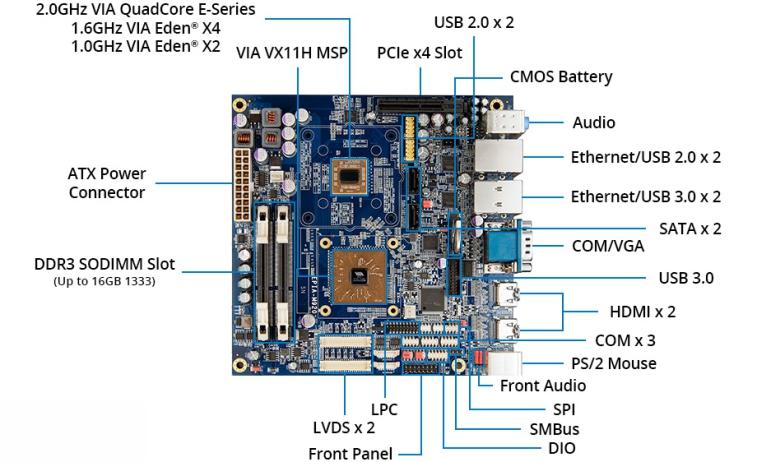

Internal I/O:
2 x SATA connectors
2 x SATA DOM power selectors
1 x USB 3.0 pin header for 1 port
2 x USB 2.0 pin headers for 4 ports
1 x LVDS Dual channel 18/24-bit panel connector
1 x LVDS Single channel 18/24-bit panel connector
3 x COM port pin headers (powered with selectable 5V/12V)
1 x LPC pin header
1 x SMBus pin header
1 x S/PDIF-out connector
1 x Digital I/O pin header (4 GPI + 4 GPO)
1 x Front audio pin header for Line-out, Mic-in
2 x Smart Fan pin headers for CPU and system
2 x Backlight control connectors for inverter power and brightness control
1 x SD card (SDHC/SDXC) pin header
1 x ATX power connector

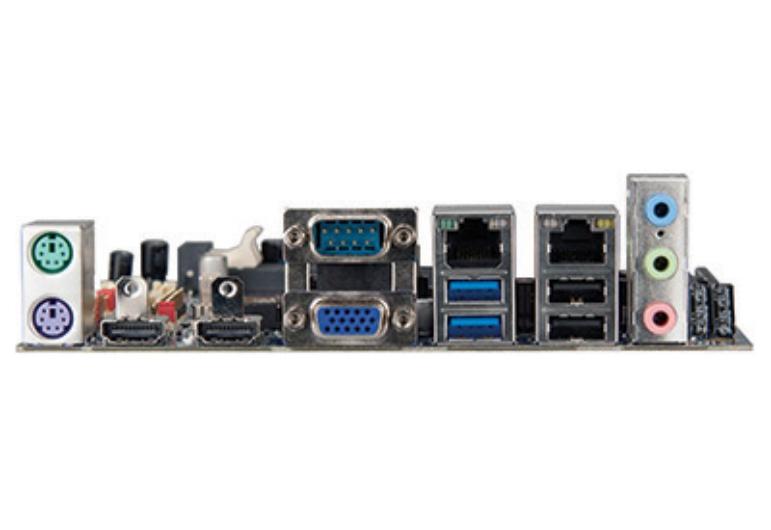

External I/O:
2 x USB 3.0 ports
2 x USB 2.0 ports
2 x HDMI ports
1 x xVGA port
1 x COM (powered with selectable 5V/12V)
2 x Gigabit Ethernet ports
3 x Audio jacks: Line-in, Line-out, and Mic-in
2 x PS/2 keyboard/mouse ports
Power Supply: ATX power connector
Operating System: Windows 10/8.1/8/7, WES 7, Linux, POSReady 7
System Monitoring: Wake-on-LAN, Keyboard Power-on, Timer Power-on, System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature: 0°C ~ 60°C
Operating Humidity: 0% ~ 95% (non-condensing)
Form Factor: Mini-ITX (17cm x 17cm, 6.7" x 6.7")
System requirements:
Package content:
1 x Mainboard
1 x SATA cable
1 x Driver CD
Specification:
Processor: 1.6 GHz VIA EDEN X4 Quad Core (Fanless)
Chipset: VIA VX11H Media System Processor
BIOS: AMI Aptio UEFI BIOS, 4MB Flash
Memory socket: 2 x DDR3 1333 SODIMM up to 8GB memory per slot
Graphics: Integrated Chrome® 640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
LAN: Realtek RTL8111G VIA VT6130
Audio: VIA VT2021 High Definition Audio Codec
Super I/O: Fintek F71869E
Expansion slot: 1 x PCIe x4
Storage: 2 x SATA
Internal I/O:
2 x SATA connectors
2 x SATA DOM power selectors
1 x USB 3.0 pin header for 1 port
2 x USB 2.0 pin headers for 4 ports
1 x LVDS Dual channel 18/24-bit panel connector
1 x LVDS Single channel 18/24-bit panel connector
3 x COM port pin headers (powered with selectable 5V/12V)
1 x LPC pin header
1 x SMBus pin header
1 x S/PDIF-out connector
1 x Digital I/O pin header (4 GPI + 4 GPO)
1 x Front audio pin header for Line-out, Mic-in
2 x Smart Fan pin headers for CPU and system
2 x Backlight control connectors for inverter power and brightness control
1 x SD card (SDHC/SDXC) pin header
1 x ATX power connector
External I/O:
2 x USB 3.0 ports
2 x USB 2.0 ports
2 x HDMI ports
1 x xVGA port
1 x COM (powered with selectable 5V/12V)
2 x Gigabit Ethernet ports
3 x Audio jacks: Line-in, Line-out, and Mic-in
2 x PS/2 keyboard/mouse ports
Power Supply: ATX power connector
Operating System: Windows 10/8.1/8/7, WES 7, Linux, POSReady 7
System Monitoring: Wake-on-LAN, Keyboard Power-on, Timer Power-on, System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature: 0°C ~ 60°C
Operating Humidity: 0% ~ 95% (non-condensing)
Form Factor: Mini-ITX (17cm x 17cm, 6.7" x 6.7")
System requirements:
Package content:
1 x Mainboard
1 x SATA cable
1 x Driver CD
