Active and passive cooling configurations DirectX 11 and 3D stereoscopic display Hardware acceleration for MPEG-2, MPEG-4, WMV9, VC-1 and H.264 video Support for up to 16GB of DDR3 at speeds up to 1333MHz Rich connectivity options with support for 2 HDMI ports, one VGA port and two 18/24-bit LVDS Supports dual Gigabit Ethernet, three USB 3.0 and six USB 2.0 ports F...
Description:
Specification:
Processor:
VIA Dual Core Nano X2 1,0GHz - Fanless
Chipset:
VIA VX11H Media System Processor
System Memory:
2 x DDR3 1333 SO-DIMM socket up to 16GB
Graphics:
Integrated VIA Chromotion 5.0 DX11
Expansions Slots: 1 x PCIe x 4
Onboard Serial ATA: 2 x SATA Connenctors
Onboard Lan: 2 x VIA VT6130 PCIe Gigabit Ethernet Conroller
Onboard Audio: VIA VT2021 HD Audio Codec
Onboard Super I/O: Fintek F71869E
Internal I/O:
2 X USB 2.0 pin header for 4 ports
1 x USB 3.0 pin header for 1 port
2 x SATA connectors
2 x SATA DOM power selectors
1 x LVDS Dual channel 18/24-bit (DVP, VT1636)
1 x LVDS Single channel 18/24-bit (VX11H internal))
2 x Backlight control connectors for inverter power and brightness control
1 x Front audio pin header (Line-out, Mic-in)
1 x PS/2 Keyboard/mouse pin header
3 x RS232 pin header )2 fromVX11H, configurable 5V712V)
1 x LPC pin header
1 x SMBUS pin header
1 x S/PDIF out connector
1 x Digital I/O pin header (GPI x 4, GPO x4)
1 x Front panel pin header
2 x Smart fan pin headers for CPU and Sys.
1 x ATX power connentor
1 x SD Card (SDHC/SDXC)
1 x SPI
1 x Clear CMOS

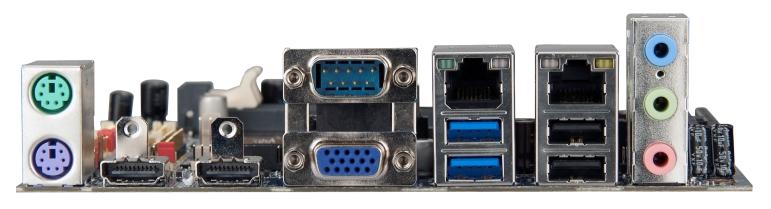

External I/O:
1 x Com Port
1 x VGA
2 x HDMI
2 x GigalLan
2 x USB 3.0
2 x USB 2.0
3 x Audio
2 x PS/2
BIOS: AMI BIOS Rom APTIO uFFi 4MB
For Operating System:
Windows 7, Windows Embedded Standard 7, POSReady 7,
Windows XP, Windows XP Embedded
Power: ATX power
Management:
Wake on Lan, Keyboard power on, Time power on,
System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature: 0°C - 60°C
Compliance:
CE/FCC/BSMI/RoHS
Form Factor: Mini-ITX 17cm x 17cm
System requirements:
Package content:
1 x SATA cable
1 x I/O bracket

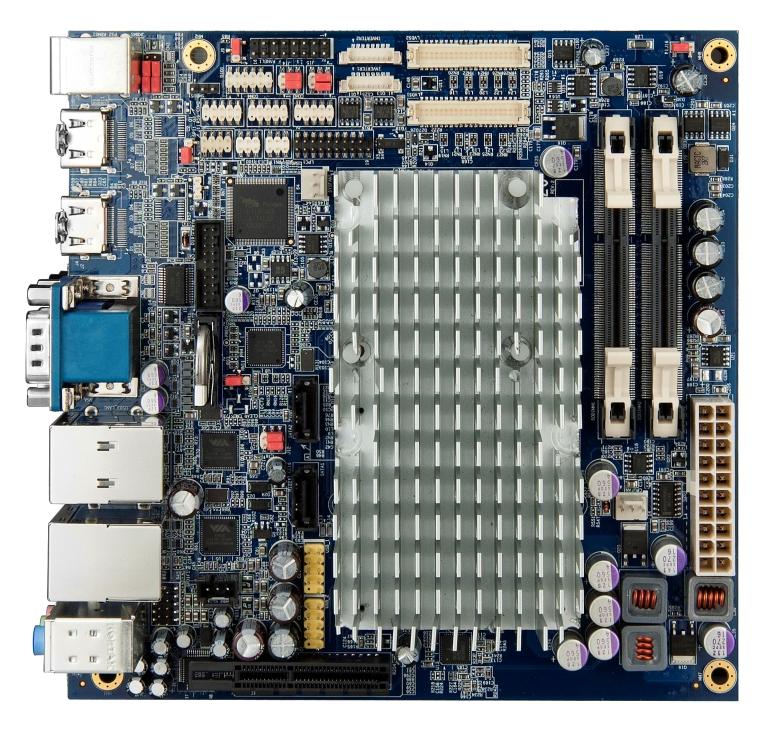

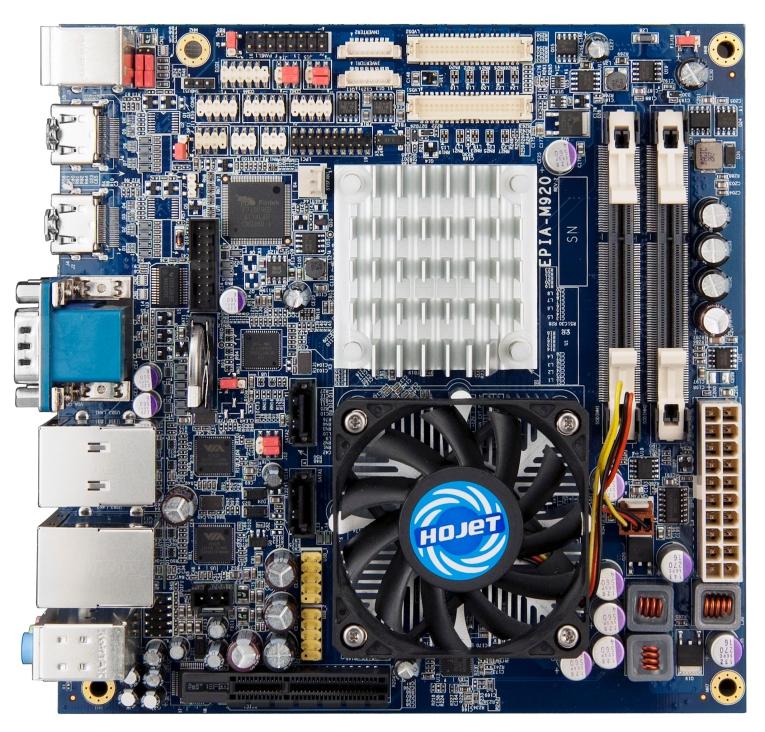

- Active and passive cooling configurations
- DirectX 11 and 3D stereoscopic display
- Hardware acceleration for MPEG-2, MPEG-4, WMV9, VC-1 and H.264 video
- Support for up to 16GB of DDR3 at speeds up to 1333MHz
- Rich connectivity options with support for 2 HDMI ports, one VGA port and two 18/24-bit LVDS
- Supports dual Gigabit Ethernet, three USB 3.0 and six USB 2.0 ports
- Four COM ports and support for SD (SDXC/SDHC)
- Available with ATX or DC-in power supply support
- Windows 7/WES7/ XP, and Linux OS & driver support
- Designed for advanced Industrial Automation, POS, Kiosk, ATM, Gaming, Digital Signage, Healthcare and Digital Media Applications
Specification:
Processor:
VIA Dual Core Nano X2 1,0GHz - Fanless
Chipset:
VIA VX11H Media System Processor
System Memory:
2 x DDR3 1333 SO-DIMM socket up to 16GB
Graphics:
Integrated VIA Chromotion 5.0 DX11
Expansions Slots: 1 x PCIe x 4
Onboard Serial ATA: 2 x SATA Connenctors
Onboard Lan: 2 x VIA VT6130 PCIe Gigabit Ethernet Conroller
Onboard Audio: VIA VT2021 HD Audio Codec
Onboard Super I/O: Fintek F71869E
Internal I/O:
2 X USB 2.0 pin header for 4 ports
1 x USB 3.0 pin header for 1 port
2 x SATA connectors
2 x SATA DOM power selectors
1 x LVDS Dual channel 18/24-bit (DVP, VT1636)
1 x LVDS Single channel 18/24-bit (VX11H internal))
2 x Backlight control connectors for inverter power and brightness control
1 x Front audio pin header (Line-out, Mic-in)
1 x PS/2 Keyboard/mouse pin header
3 x RS232 pin header )2 fromVX11H, configurable 5V712V)
1 x LPC pin header
1 x SMBUS pin header
1 x S/PDIF out connector
1 x Digital I/O pin header (GPI x 4, GPO x4)
1 x Front panel pin header
2 x Smart fan pin headers for CPU and Sys.
1 x ATX power connentor
1 x SD Card (SDHC/SDXC)
1 x SPI
1 x Clear CMOS
External I/O:
1 x Com Port
1 x VGA
2 x HDMI
2 x GigalLan
2 x USB 3.0
2 x USB 2.0
3 x Audio
2 x PS/2
BIOS: AMI BIOS Rom APTIO uFFi 4MB
For Operating System:
Windows 7, Windows Embedded Standard 7, POSReady 7,
Windows XP, Windows XP Embedded
Power: ATX power
Management:
Wake on Lan, Keyboard power on, Time power on,
System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature: 0°C - 60°C
Compliance:
CE/FCC/BSMI/RoHS
Form Factor: Mini-ITX 17cm x 17cm
System requirements:
Package content:
1 x SATA cable
1 x I/O bracket
