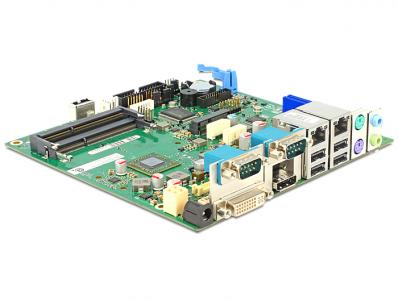

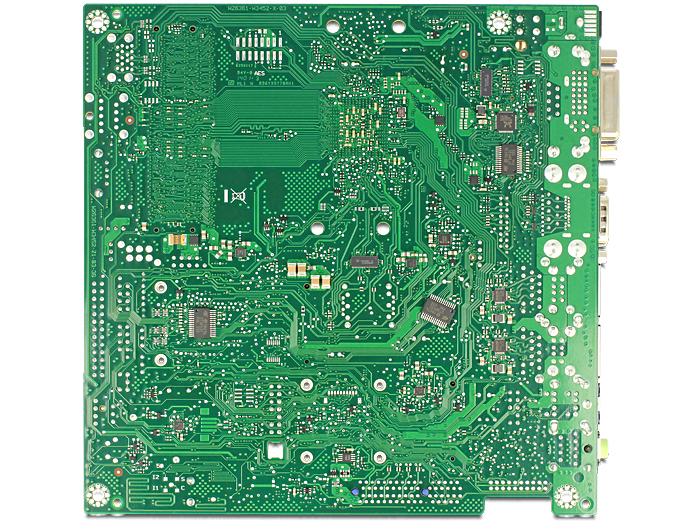

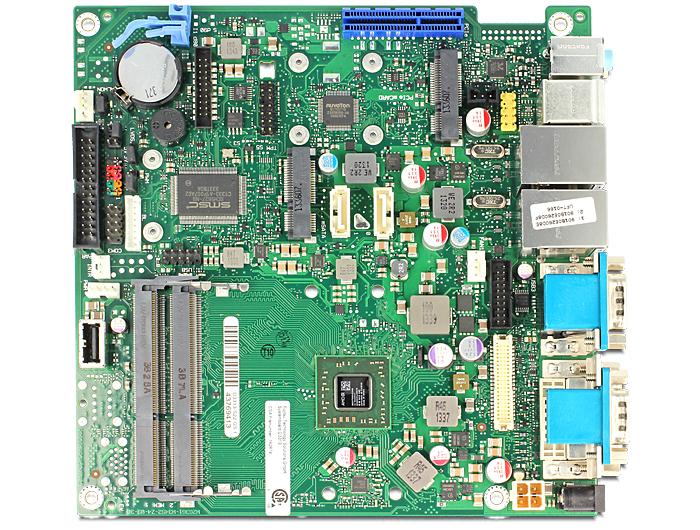

The Fujitsu Industrial Mainboard D3313-S is the most interesting platform for industrial applications with different requirements. Thanks to the AMD embedded SoC processor platform, the G-series, the D3313-S requirements of low energy consumption with the AMD Embedded SoC GX210HA fulfilled to a high graphics performance with the AMD Embedded GX-420CA quad-core processor. The Fujitsu D3313-S is...
Description:
The Fujitsu Industrial Mainboard D3313-S is the most interesting platform for industrial applications with different requirements. Thanks to the AMD embedded SoC processor platform, the G-series, the D3313-S requirements of low energy consumption with the AMD Embedded SoC GX210HA fulfilled to a high graphics performance with the AMD Embedded GX-420CA quad-core processor. The Fujitsu D3313-S is designed for 24/7-Operation
Specification:
Processor: AMD GX-217GA 1,65 GHz Dual Core / 15W
Chipset: AMD Embedded G-Series
Memory: 2 x Socket (1.5V/1.35V) for Single Channel SO-DIMM DDR3-1333 MHz CL9 or DDR3-1600MHz CL11 SDRAM, unbuffert, no ECC
Espansion Slots:
1 x PCIe x4 (Gen2) mechanical open slot for usage of x16 cards
1 x Mini PCIe (Gen2) incl. USB2.0 for fullsize and haflsize cards
Storage:
1 x mSATA (SATAIII) fullsize
2 x SATA 6 Gb/s
Graphics: AMD Radeon HD8280E
Lan: Realtek RTL 8111G
Audio: Realtek ALC 671
Internal I/O:
1 x LVDS 24bit Dual Channel
2 x SATA 6Gb/s
2 x USB 3.0
2 x USB 2.0
1 x S/PDIF
1 x USB 2.0 for USB-Stick
1 x Serial
1 x Fan CPU
1 x Fan System
1 x Intrusion (Case open)
1 x Feature connector (8bit Gerneral Purpose I/O)
1 x Frontpanel (Power Switch, LED, Intel 10pin header)
1 x Onboard Power output (+5V/2A + 12V/2A) for drives
1 x Onboard (internal input) DC-in 12V / 19-24V @xxA
1 x LVDS 24bit Dual Channel
1 x LVDS Backlight Inverter
External I/O:
1 x DVI-I
1 x DisplayPort
1 x HDMI
2 x Audio line
2 x GigaLan
2 x PS/2
4 x USB 2.0
2 x COM (RS232, FIFO, 16550 compatible)
1 x DC-in 12V / 19-24V @xxA
System requirements:
Package content:
1 x Mainboard

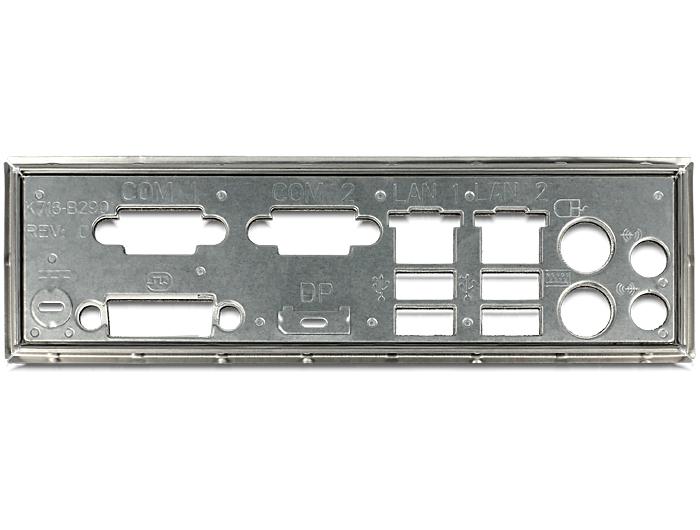

1 x I/O Shield
1 x Driver CD
