Equip Wandhalterung 60"-100"/100kg 1TFT 1Gelenk Neigung sw

EQUIP

650322

New

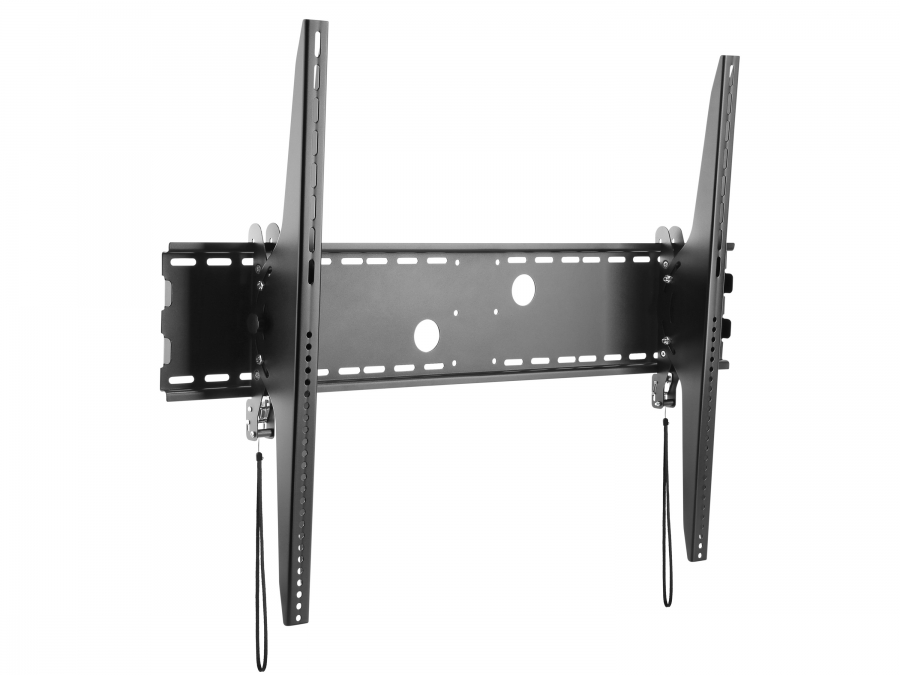

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

Maximum weight capacity100 kg
Maximum screen size2.54 m (100")
Mounting typeWall
Minimum VESA mount200 x 200 mm
Maximum VESA mount1098 x 807 mm
Minimum screen size152.4 cm (60")
Panel mounting interface200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,1000 x 400,1000 x 600,1000 x 800
Number of displays supported1

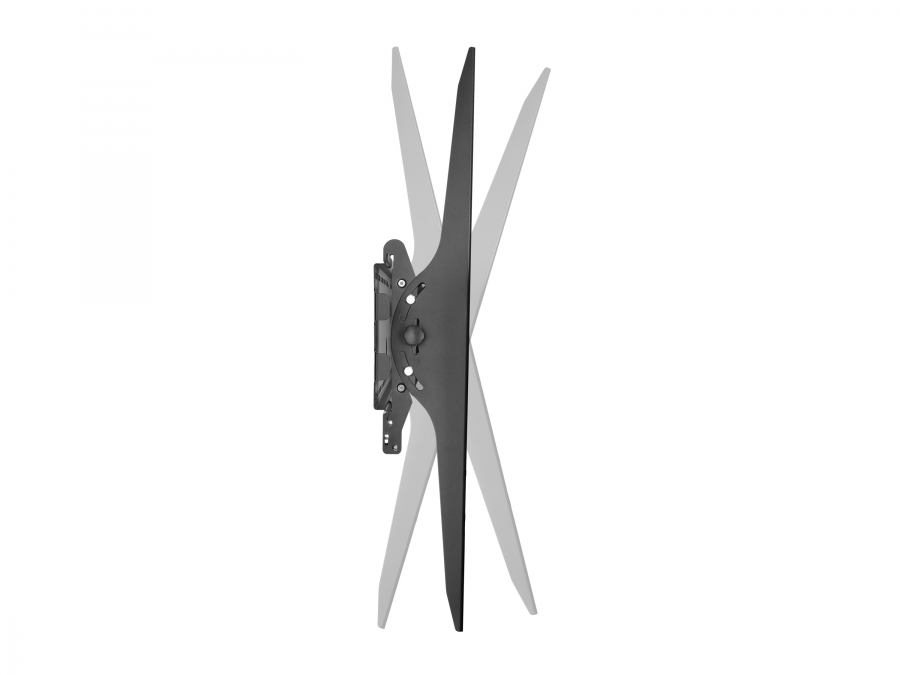

Tilt angle range-15 - 15°
Distance to the wall (max)13 cm
Product colourBlack
Housing materialSteel
Screws includedY
Quick installation guideY
Width1140 mm
Depth130 mm
Height832 mm
Weight8.19 kg
Package width1178 mm
Package depth232 mm
Package height68 mm
Package weight9.51 kg
Master (outer) case width1195 mm
Master (outer) case length155 mm
Master (outer) case height250 mm
Master (outer) case gross weight19.6 kg
Products per master (outer) case2 pc(s)
Harmonized System (HS) code85299097
Country of originChina
