Equip Wandhalterung 37"-70"/35kg 1TFT 4Gelenke neig/schwe sw

EQUIP

650342

New

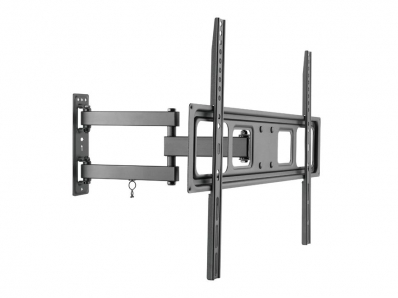

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

Maximum weight capacity35 kg
Maximum screen size177.8 cm (70")
Mounting typeWall
Minimum VESA mount200 x 200 mm
Maximum VESA mount600 x 400 mm
Minimum screen size94 cm (37")
Panel mounting interface200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Number of displays supported1
Tilt adjustmentY

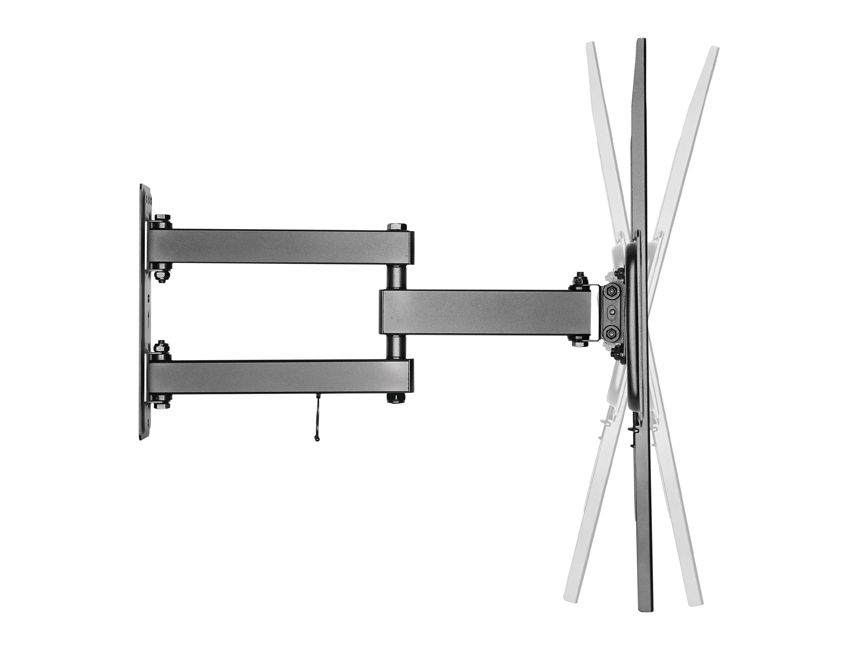

Tilt angle range-15 - 10°
Pan range-90 - 90°

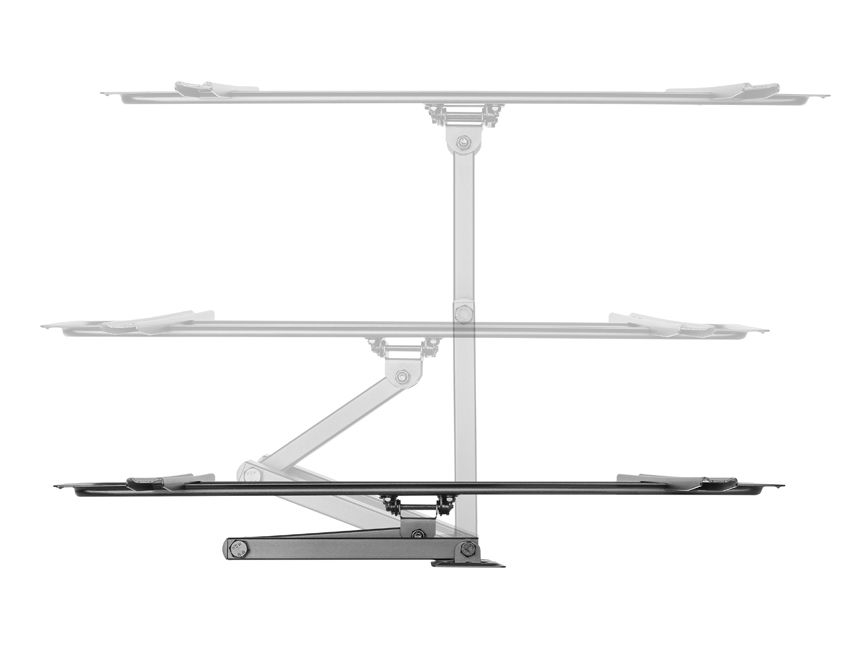

Distance to the wall (max)42.7 cm
Distance to the wall (min)6.3 cm
Product colourBlack
Housing materialStainless steel
CertificationROHS
ManualY
Mounting kitY
Width655 mm
Depth (max)42 cm
Height427 mm
Weight3.12 kg
Quantity per pack1 pair(s)
Package width231 mm
Package depth68 mm
Package height677 mm
Package weight3.54 kg
Package typeBox
Master (outer) case width430 mm
Master (outer) case length245 mm
Master (outer) case height690 mm
Master (outer) case gross weight22 kg
Products per master (outer) case6 pc(s)
Harmonized System (HS) code85299097
Country of originChina
