Equip Wandhalterung 45"-70"/70kg 1TFT 1Gelenk Push-In-Pop sw

EQUIP

650352

New

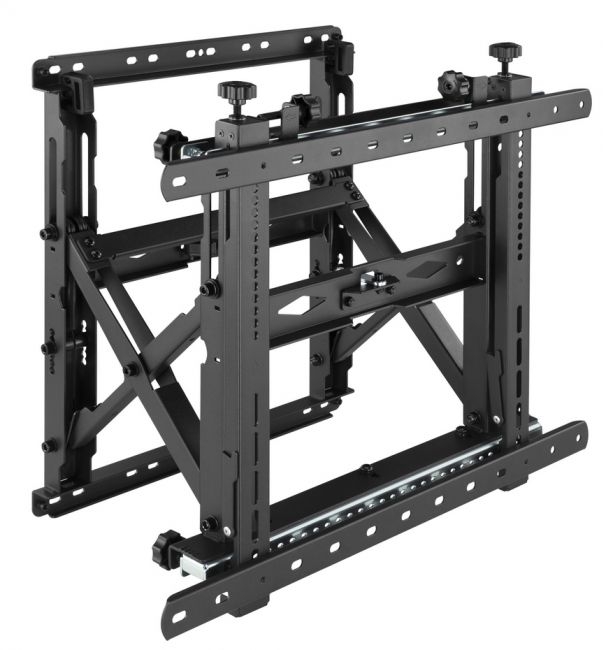

The equip® 650352 Video Wall TV Mount Bracket is a video wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. The Pop-out feature gives easy-access to any display for quick serviceability. This is one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Saving installation time and cost.

Maximum weight capacity70 kg
Maximum screen size177.8 cm (70")
Mounting typeWall
Minimum screen size114.3 cm (45")
Maximum VESA mount600 x 400 mm
Number of displays supported1
Suitable for TVY
Panel mounting interface200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Distance to the wall (min)12 cm
Distance to the wall (max)32.5 cm
Tilt angle range-3 - 2°
Cable managementY
Tilt adjustmentY
Product colourBlack
Housing materialMetal, Plastic
Anti-theft functionY
Sustainability certificatesRoHS
Width325 mm
Depth544 mm
Height640 mm
Weight13.2 kg
Package width566 mm
Package depth135 mm
Package height585 mm
Package weight15.1 kg
Screws includedY
ManualY
Master (outer) case width566 mm
Master (outer) case length135 mm
Master (outer) case height585 mm
Master (outer) case gross weight15.1 kg
Products per master (outer) case1 pc(s)
Harmonized System (HS) code85299097
