Equip Wandhalterung 32"-55"/50kg 1TFT 4Gelenke neig/schwe sw

EQUIP

650315

New

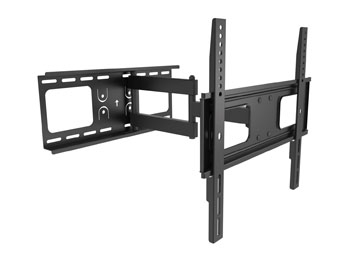

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

Maximum weight capacity50 kg
Maximum screen size139.7 cm (55")
Mounting typeWall
Minimum VESA mount200 x 200 mm
Maximum VESA mount400 x 400 mm
Minimum screen size81.3 cm (32")
Panel mounting interface200 x 200,300 x 300,400 x 200,400 x 400
Number of displays supported1
Tilt angle range-20 - 10°
Swivel angle range-90 - 90°
Distance to the wall (max)47.5 cm
Distance to the wall (min)6.2 cm
Product colourBlack
Housing materialSteel
CertificationCE
Screws includedY
Quick installation guideY
Width410 mm
Depth470 mm
Height480 mm
Weight4 kg
Package width220 mm
Package depth70 mm
Package height520 mm
Package weight4.3 kg
Harmonized System (HS) code85299097
