Delock Mini PCIe I/O PCIe half size 1 x RJ45 2.5 Gigabit LAN

Reference 95271

Condition: New

More info

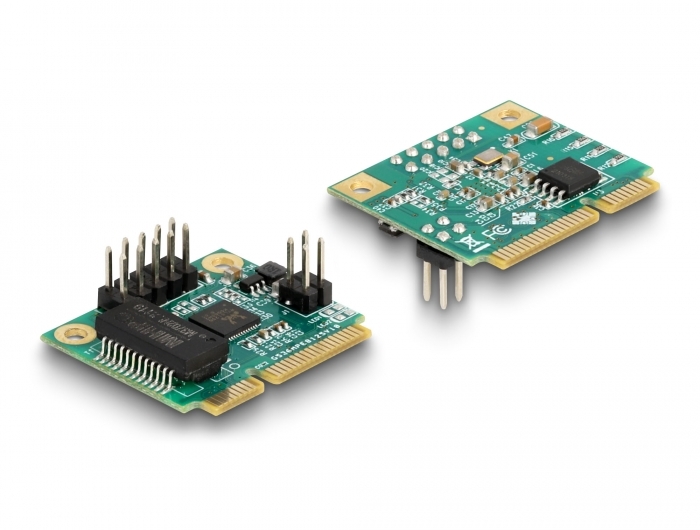

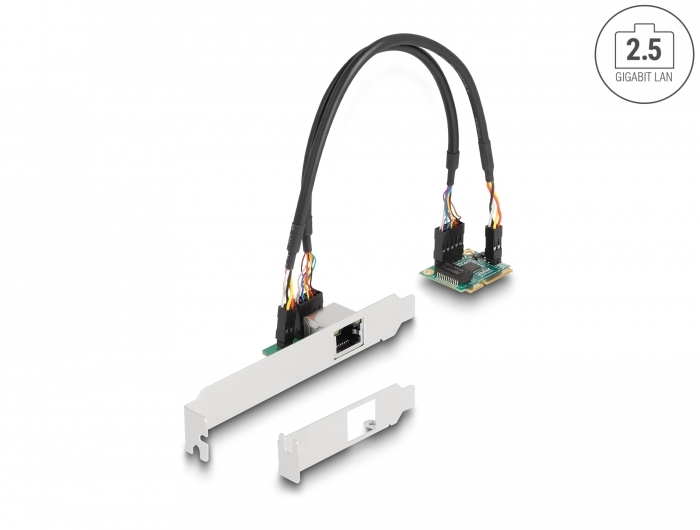

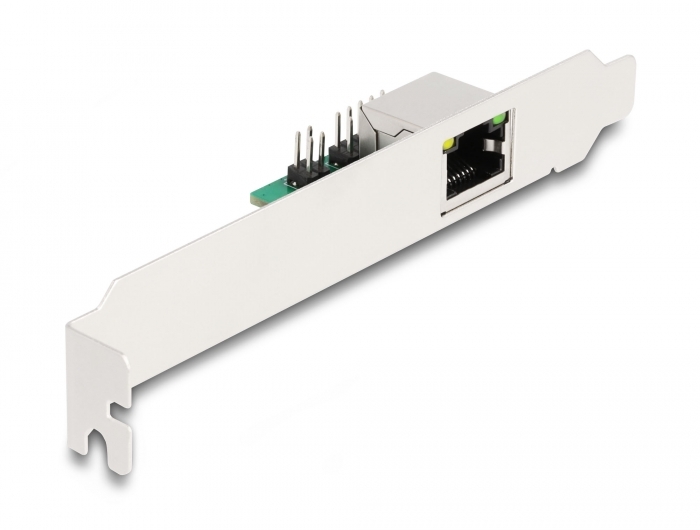

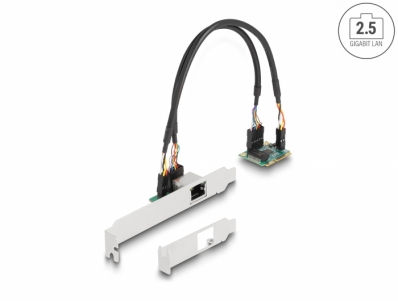

This Mini PCIe module by Delock expands a system by one 2.5 Gigabit LAN interface, which can be lead out via the slot bracket.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

System requirements:
• Windows 8.1/10/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
• PC with one free slot

Specification:
• Connectors:
  internal: 1 x Mini PCIe male
  external: 1 x 2.5 Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8125B
• Form factor: Mini PCIe half size
• Interface: PCI Express revision 2.1
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
  PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 9k Jumbo Frames
• LED indicator for link and activity
• Cable length with connectors: ca. 25 cm

Package content:
• Mini PCIe module

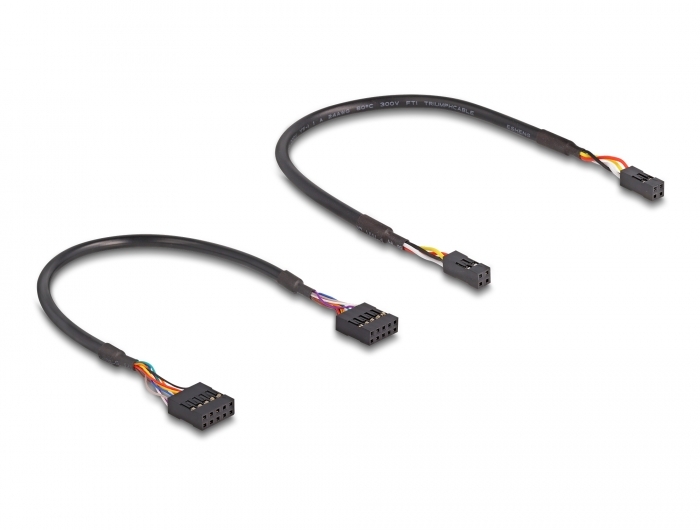

• 2 connecting cable
• Slot bracket
• Low profile bracket
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/95271/pdf.html?sprache=en
