Delock Mini PCIe I/O PCIe full size 1 x SFP Gigabit LAN

Reference 95267

Condition: New

More info

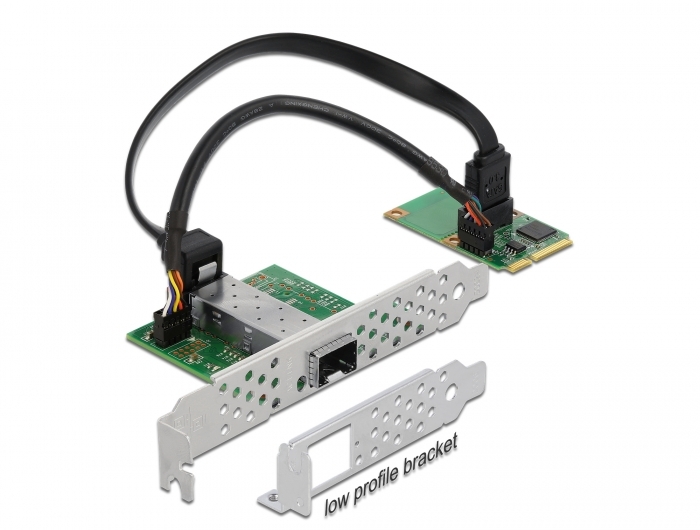

This Mini PCIe module by Delock expands a system by one Gigabit LAN SFP interface, which can be lead out via the slot bracket.
With the perforation, the length can be shortened from full size to half size.

System requirements:
• Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Motherboard with a free Mini PCIe slot with a PCIe interface
• PC with one free slot
• SFP module

Specification:
• Connectors:
  internal: 1 x Mini PCIe male
  external: 1 x SFP slot for 1 Gbps SFP module
• Chipset: Intel i210
• Form factor: Mini PCIe full size / half size
• Interface: PCI Express revision 2.1
• Data transfer rate:
  Ethernet up to 10 Mbps
  Fast Ethernet up to 100 Mbps
  Gigabit Ethernet up to 1000 Mbps
  PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 9k Jumbo Frames
• Supports PXE
• Cable length with connectors: ca. 18 cm

Package content:
• Mini PCIe module
• 2 connecting cable
• Slot bracket
• Low profile bracket
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/95267/pdf.html?sprache=en
