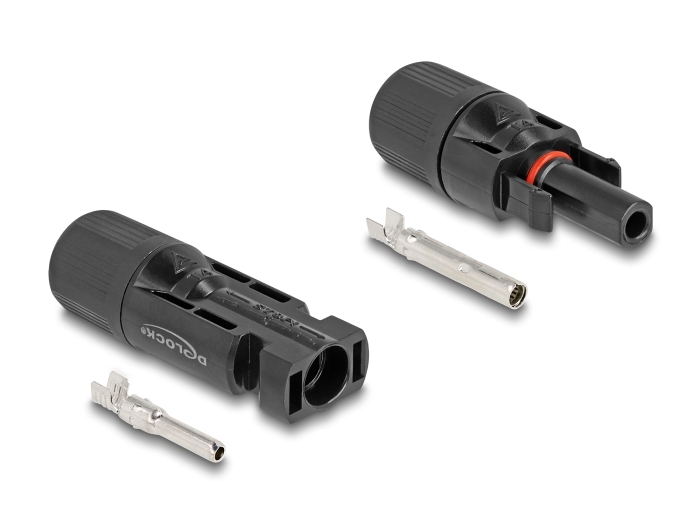

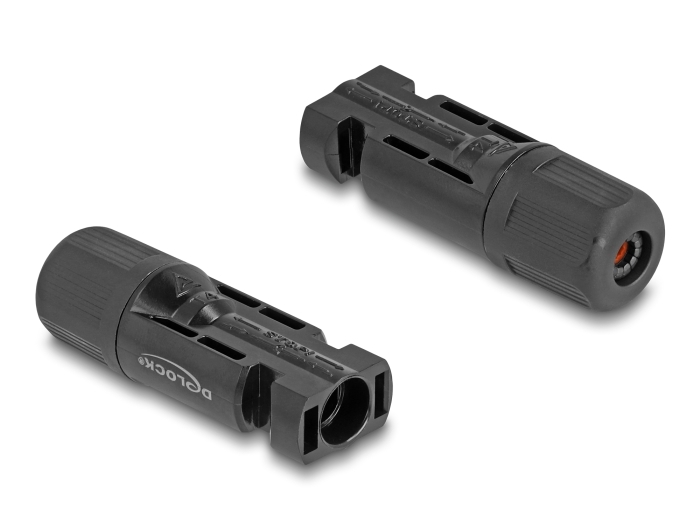

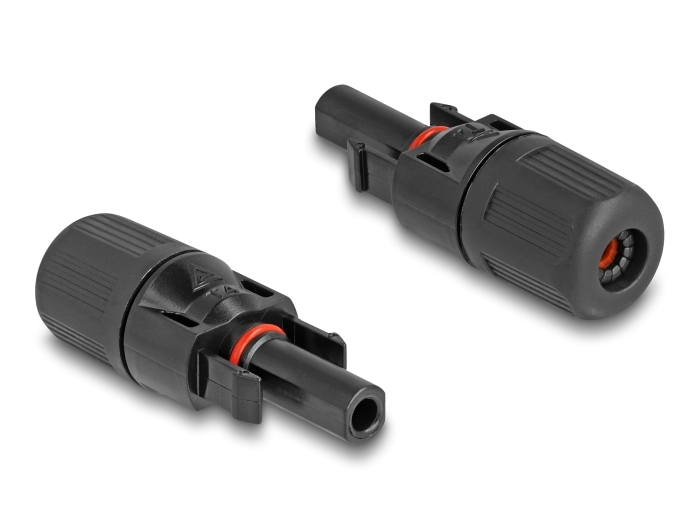

Delock DL4 Solar Connectors for cables for crimping, male and female, black 2 pcs

Reference 60670

Condition: New

More info

These DL4 solar connectors for cables by Delock can be used for cable assembly in order to forward the energy generated by a photovoltaic system.

DL4 connectors
The DL4 plugs and sockets have a snap-in function, which avoids unwanted interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.

The DL4 solar connectors are protected from dirt and moisture.

System requirements:
• A free DL4 port

Specification:
• Connectors:
  1 x DL4 male
  1 x DL4 female
• Cable cross section: ca. 2.5, 4, 6 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C ~ 90 °C
• Protection class: IP67
• Voltage: max. 1000 V
• Colour: black
• Dimensions (LxWxH):
  plug ca. 5.9 x 1.9 x 1.2 cm
  female ca. 5.0 x 1.9 x 1.9 cm

Package content:
• DL4 connectors

Data sheet:
http://www.delock.de/produkt/60670/pdf.html?sprache=en
