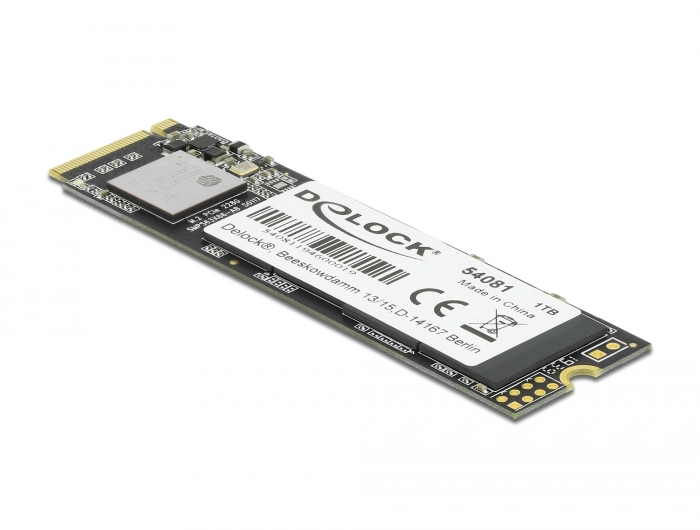

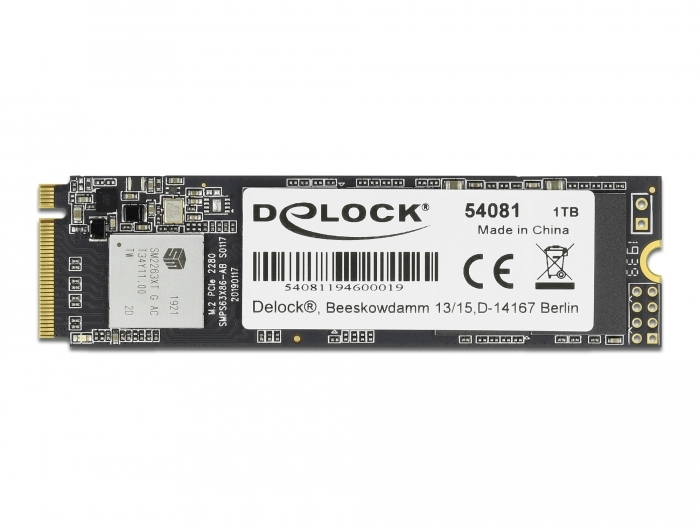

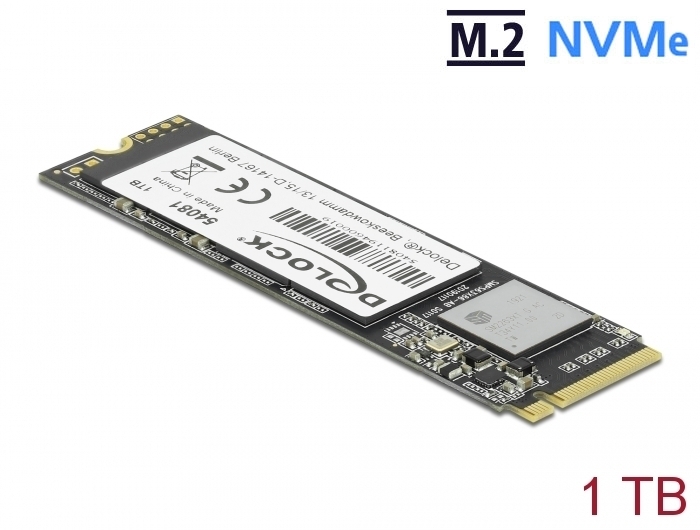

Delock M.2 SSD PCIe / NVMe Key M 2280 - 1 TB

Reference 54081

Condition: New

More info

This flash module by Delock is a memory in the M.2 format for the PCIe / NVMe interface. With its 80 mm length, it has the form factor 2280. The module supports PCIe x4 and has the revision 3.0. The high read and write speed supports fast data transfer even for big amount of data, which is particularly important in the photo and video range.

System requirements:
• A free M.2 key M slot based on PCIe

Specification:
• Connector:
1 x 67 pin M.2 Key M male
• Capacity: 1 TB
• Interface: PCIe x4 Rev. 3.0
• Controller: SMI SM2263XT
• Maximum read speed: 2000 MB/s
• Maximum write speed: 1700 MB/s
• Power consumption: max. 2 W
• MTBF: 1.000.000 hours
• Flash type: TLC
• Maximum write cycles: 1000
• Storage temperature: -55 °C ~ 115 °C
• Operating temperature: 0 °C ~ 70 °C
• Shock: 1500G
• Operating vibration: 16G
• Humidity: 5 ~ 98 %
• Supports TRIM
• Supports S.M.A.R.T.
• Supports NVM Express (NVMe) 1.3
• Dimensions (LxWxH): ca. 80.0 x 22.0 x 2.1 mm

Package content:
• M.2 SSD

Data sheet:
http://www.delock.de/produkt/54081/pdf.html?sprache=en
