Delock M.2 PCIe SSD Toshiba MLC 128 GB (42 mm) -40 °C ~ 85 °C

Reference 54822

Condition: New

More info

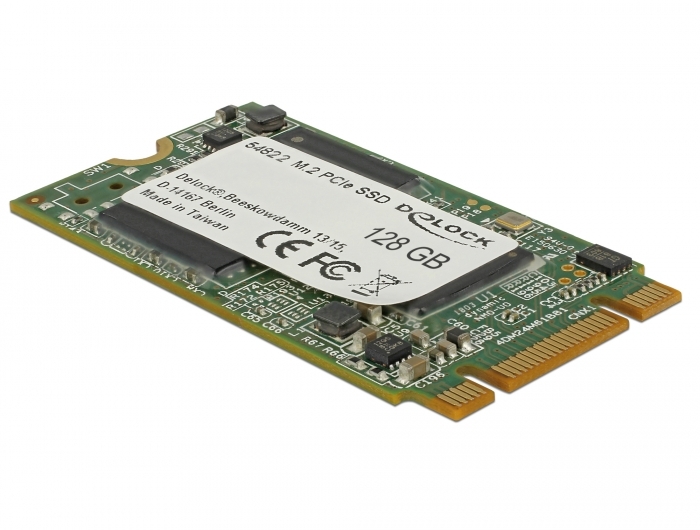

This flash module by Delock is a memory in M.2 format for the PCIe interface. It supports the PCIe x2 revison 3.0 and convinces with an effective boot time and lower power consumption than common hard disk drives.

System requirements:
• A free M.2 port with key B + M
• M.2 slot with PCIe / NVMe interface

Specification:
• Connector: 1 x 59 pin M.2 key B+M male
• Capacity: 128 GB
• Interface: PCIe x2 Rev. 3.0
• Form factor: M.2 2242
• Chipset: Toshiba
• Flash type: MLC
• Channels max.: 4
• Maximum read speed: 1300 MB/s
• Maximum write speed: 190 MB/s
• Maximum write cycles: 3000
• MTBF: 3.000.000 hours
• Power consumption: max. 2.9 W (3.3 V x 880 mA)
• ATA security: no
• Write protection: no
• Thermal sensor: yes
• Vibration: 20G @ 7 ~ 2000 Hz
• Shock: 1500G @ 0.5 ms
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 42.0 x 22.0 x 4.5 mm
• Storage temperature: -55 °C ~ 95 °C
• Operating temperature: -40 °C ~ 85 °C - industry class

Package content:
• M.2 memory

Data sheet:
http://www.delock.de/produkt/54822/pdf.html?sprache=en
