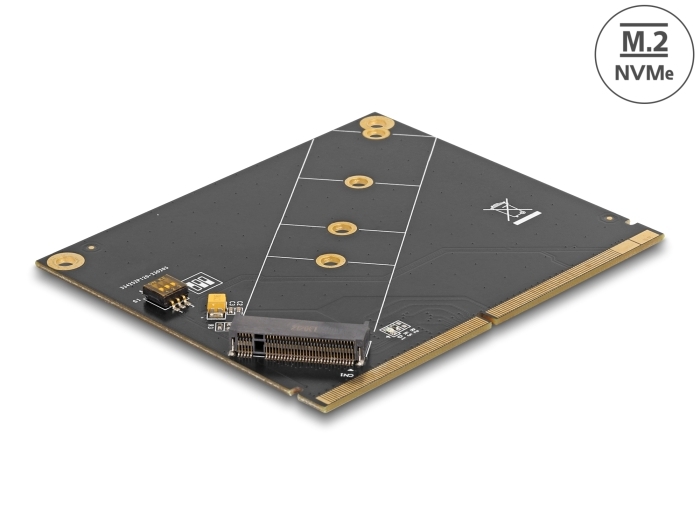

Delock Converter MXM to M.2 NVMe Key M slot

DELOCK

61057

New

This converter by Delock enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through the MXM interface. Thus it is possible to operate an M.2 NVMe SSD on an MXM interface.
System requirements:
• A free MXM 3 interface
Specification:
• Connectors:
  1 x MXM male
  1 x M.2 key M slot
• Form factor: MXM 3 type-A
• Interface: PCIe Rev. 4.0
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Bootable
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Dimensions (LxWxH): ca. 82 x 70 x 5 mm
Package content:
• Converter

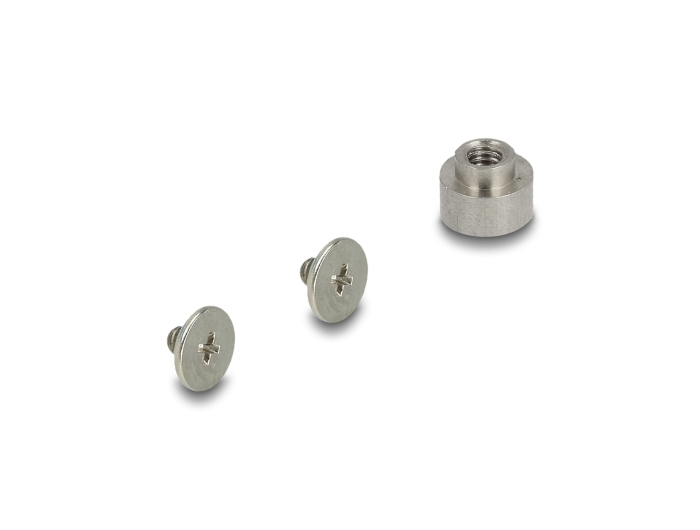

• Mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/61057/pdf.html?sprache=en
