Delock Adapter SATA + DDR3 to M.2 key B

Reference 63960

Condition: New

More info

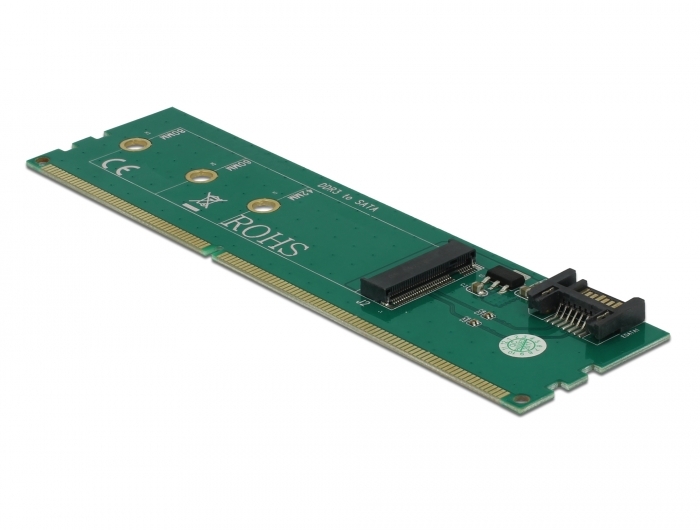

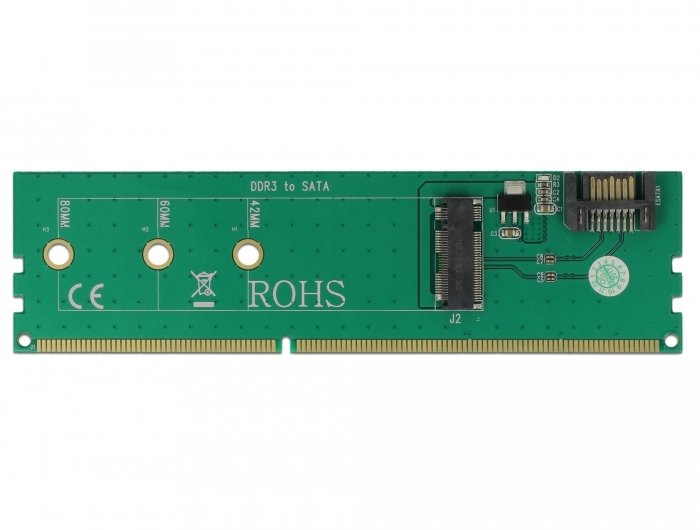

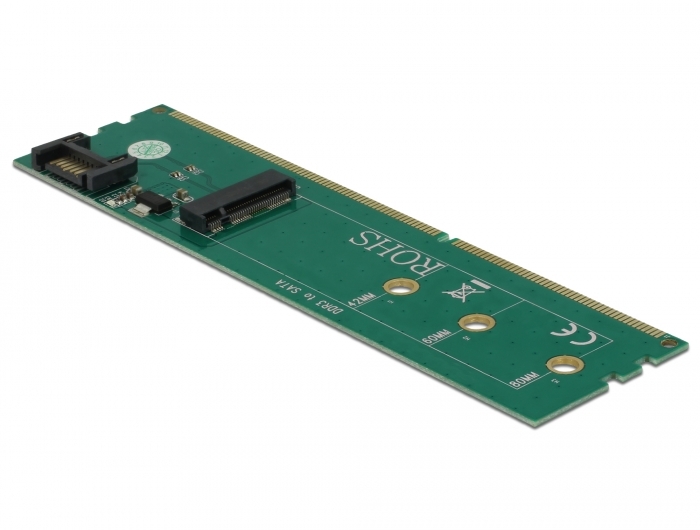

This adapter by Delock enables the connection of an M.2 SSD in 2280, 2260 and 2242 format. The data will be transmitted via the SATA 7 pin interface; power will be supplied via the DDR3 slot.

System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free DDR3 DIMM 240 pin slot
• A free SATA 7 pin interface

Specification:
• Connectors:
  1 x SATA 6 Gb/s 7 pin plug
  1 x DDR3 DIMM 240 pin plug >
  1 x 67 pin M.2 key B slot
• Interface: SATA
• Supports M.2 modules in format 2280, 2260 and 2242 with key B
or key B+M based on SATA
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Bootable
• Dimensions (LxWxH): ca. 133 x 36 x 4 mm

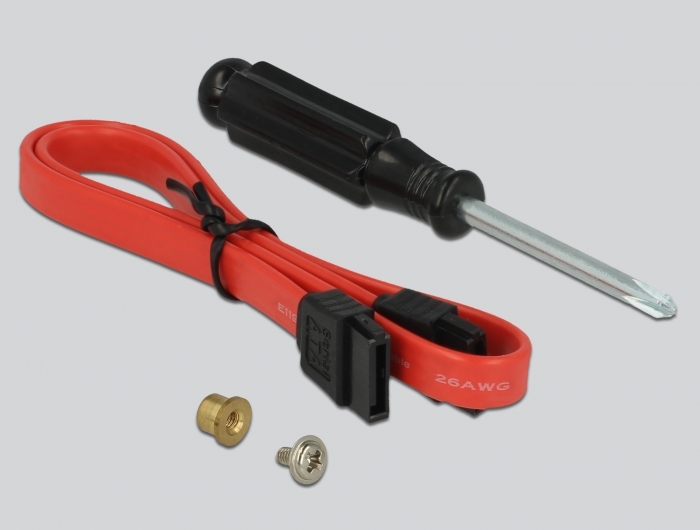

Package content:
• Adapter
• SATA cable, length ca. 40 cm
• M.2 mounting material
• Screwdriver
