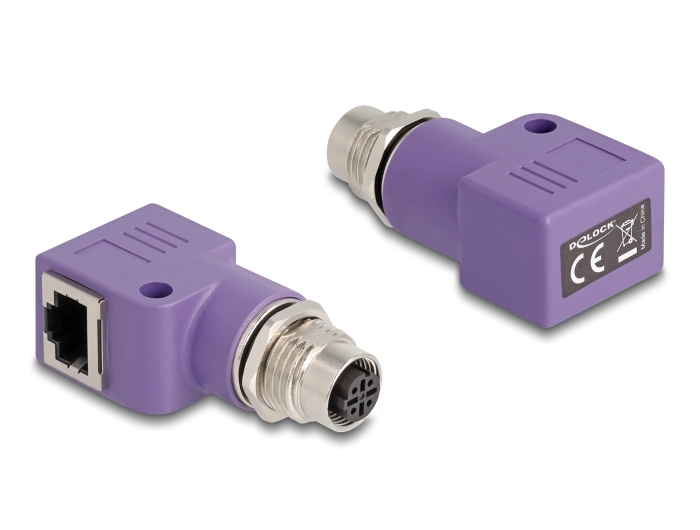

Delock M12 Adapter D-coded 4 pin female to RJ45 jack Cat.5e with mounting hole 90° angled violet

Reference 60680

Condition: New

More info

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

With mounting hole
The adapter can be attached to a plate with a corresponding cut-out.

Specification:
• Connectors:

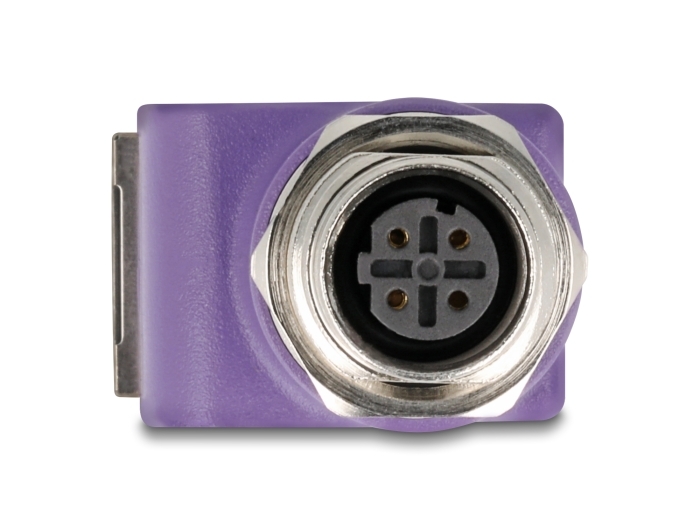

  1 x M12 female 4 pin D-coded
  1 x RJ45 jack 90° angled
• Cat.5e specification
• Installation dimensions: 16.1 x 13.6 mm
• With mounting hole
• Mounting hole diameter: ca. 2.7 mm
• Housing material: PVC / metal
• Shielded (STP)
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 250 V
• Current:
  M12: max. 4 A
  RJ45: max. 1.5 A
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67 (M12), IP20 (RJ45)
• Colour: violet
• Dimensions (LxWxH): ca. 55.9 x 20.0 x 19.0 mm

Package content:
• M12 adapter

Data sheet:
http://www.delock.de/produkt/60680/pdf.html?sprache=en
