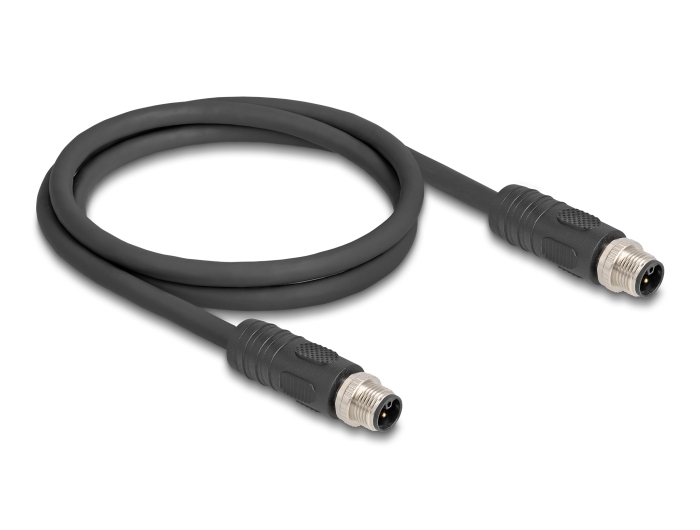

Delock M12 Cable L-coded 4 pin male to male PUR suitable for drag chains 1 m black

DELOCK

80514

New

This M12 sensor cable by Delock can be used for direct current applications. The L-coded version has 4 power contacts with a rated current of 12 A at 63 V with which currents can be reliably transmitted. This can be used to supply power to fieldbus components, power supply units, industrial machines and motors, for e.g., where a high current and low voltage are required.
Specification:
• Connectors:

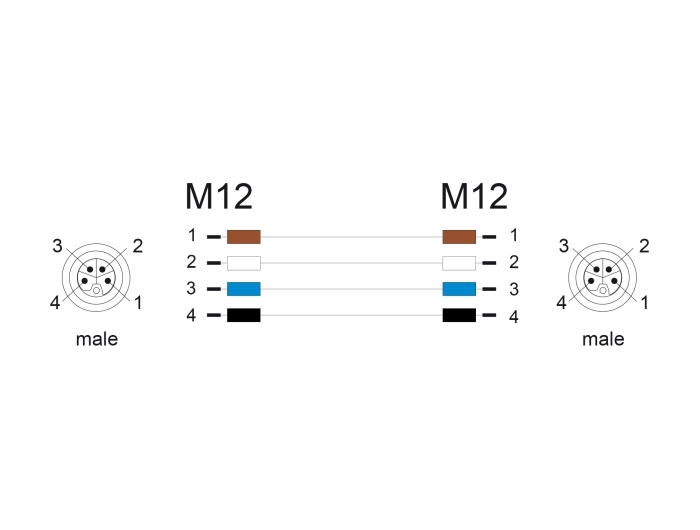

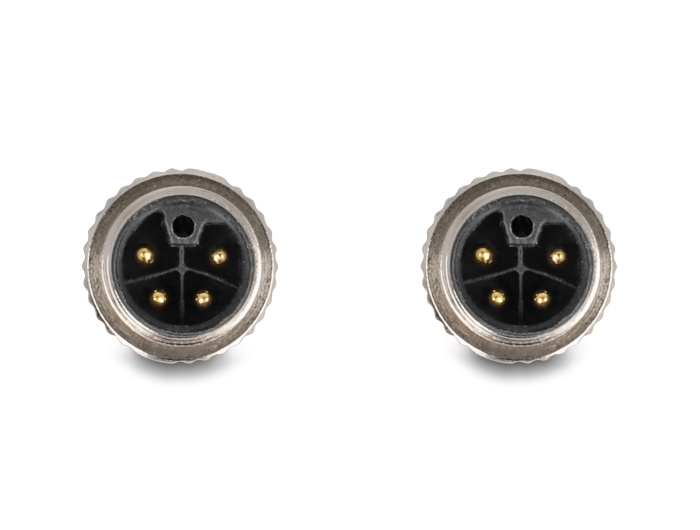

  1 x M12 male 4 pin L-coded
  1 x M12 male 4 pin L-coded
• Copper conductor
• Unshielded
• Cable gauge: 16 AWG (1.5 mm²)
• Rated current: 12 A / 63 V
• Spanner width: SW13
• Cable diameter: ca. 7.2 mm
• Cable jacket material: PUR
• Suitable for drag chains
• Drag chain speed: up to max. 5 m/s
• Tightening torque: 0.6 Nm
• Bending radius (fixed): 5 x outer diameter
• Bending radius (movable): 10 x outer diameter
• Max. number of bending cycles: 5,000,000
• Max. number of torsion cycles: 500,000
• Torsional stress: ± 180 °/m
• Operating temperature (fixed): -40 °C ~ 80 °C
• Operating temperature (movable): -25 °C ~ 70 °C
• Flammability class: UL94HB
• Halogen-free, silicone-free, oil-resistant
• Protection class: IP66 / IP67
• Material thread: zinc diecast
• Colour: black

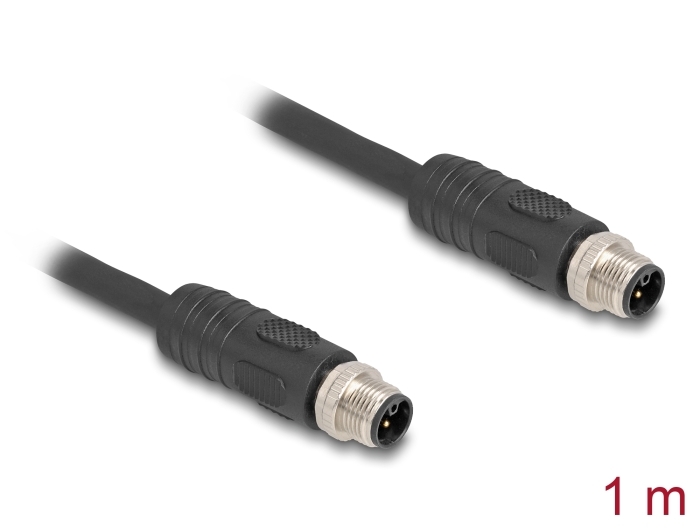

• Length incl. connectors: ca. 1 m
Package content:
• M12 cable
Data sheet:
http://www.delock.de/produkt/80514/pdf.html?sprache=en
