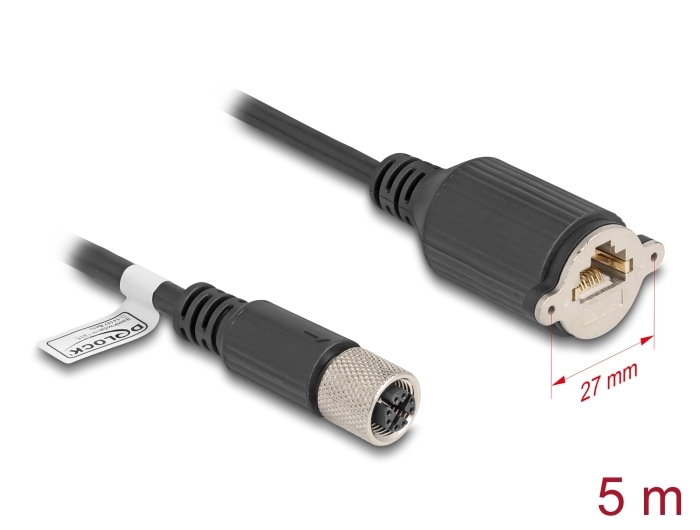

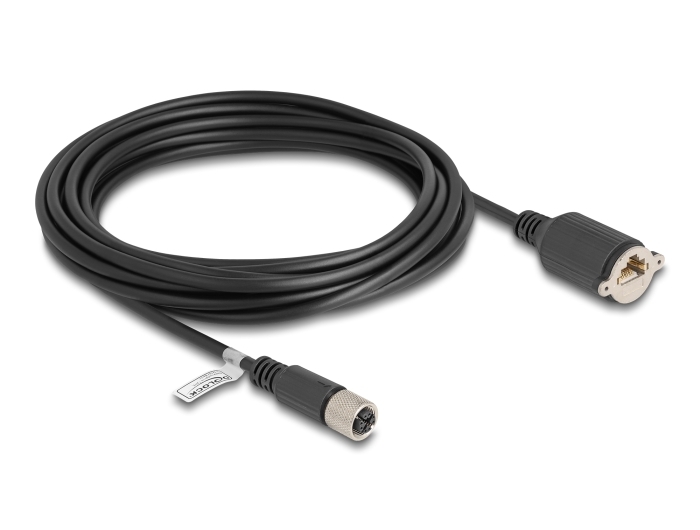

Delock M12 Cable X-coded 8 pin female to RJ45 jack for installation Cat.6A S/FTP 5 m black

Reference 80463

Condition: New

More info

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

With RJ45 panel-mount jack
The RJ45 connector can be attached with two screws, e.g. on a slot bracket or a chassis with the corresponding recess. In this way, it is possible to install the RJ45 connector in an easily accessible position.

Specification:
• Connectors:
1 x M12 female X-coded 8 pin
1 x RJ45 jack for installation
• Pitch of screw hole: ca. 27 mm
• Cat.6A specification
• Shielded (S/FTP)
• Cable gauge: 26 AWG
• Cable diameter: ca. 6.8 mm
• Cable jacket material: PVC
• Flammability class: 94V-0
• Operating temperature: -20 °C ~ 85 °C
• Protection class: IP67
• Colour: black
• Length incl. connectors: ca. 5 m

Package content:
• M12 cable

Data sheet:
http://www.delock.de/produkt/80463/pdf.html?sprache=en
