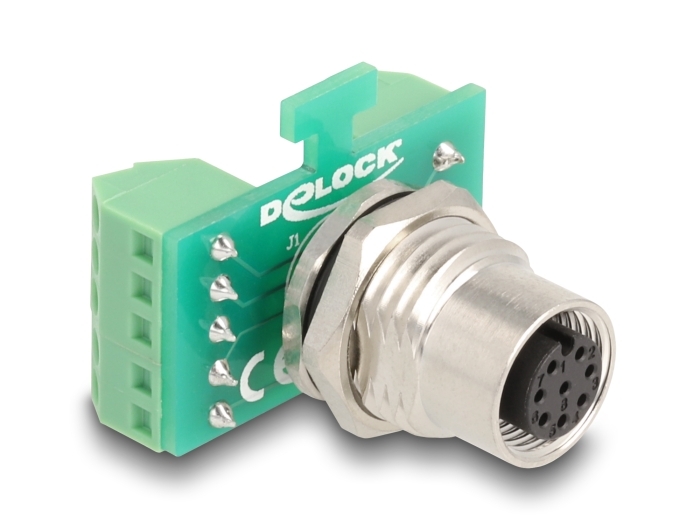

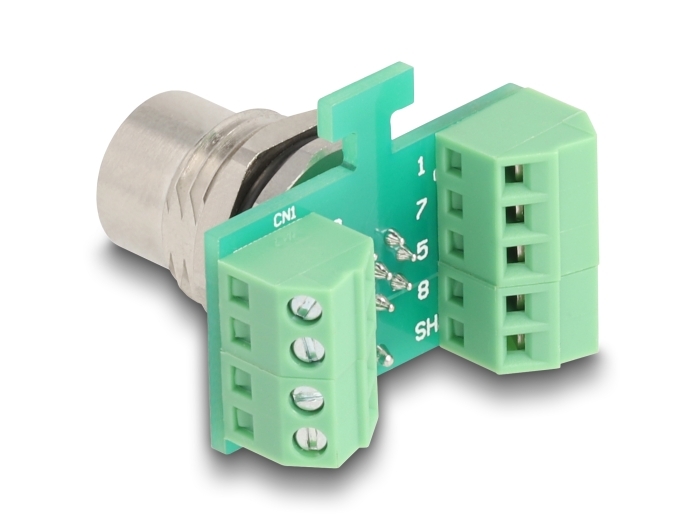

Delock M12 Transfer Module Adapter 8 pin A-coded female to 9 pin terminal block for installation

Reference 60663

Condition: New

More info

The M12 adapter by Delock enables a simple and secure connection between devices with M12 connectors and electrical circuits that use terminal blocks.

Various areas of application
The adapter offers a flexible solution for various applications in industry, automation technology, building automation and other areas where a reliable connection is required.

For installation
Due to its compact dimensions, the module is very well suited for installation in a switch cabinet.

Specification:
• Connectors:
1 x M12 female 8 pin A-coded
1 x 9 pin terminal block
• Installation dimensions: 16.1 x 13.5 mm
• M16 external thread
• Cable gauge: 26 - 16 AWG
• Pitch: 3.50 mm
• Operating temperature: -40 °C ~ 80 °C
• Dimensions (LxWxH): ca. 52.1 x 33.1 x 24.9 mm

Package content:
• M12 adapter

Data sheet:
http://www.delock.de/produkt/60663/pdf.html?sprache=en
