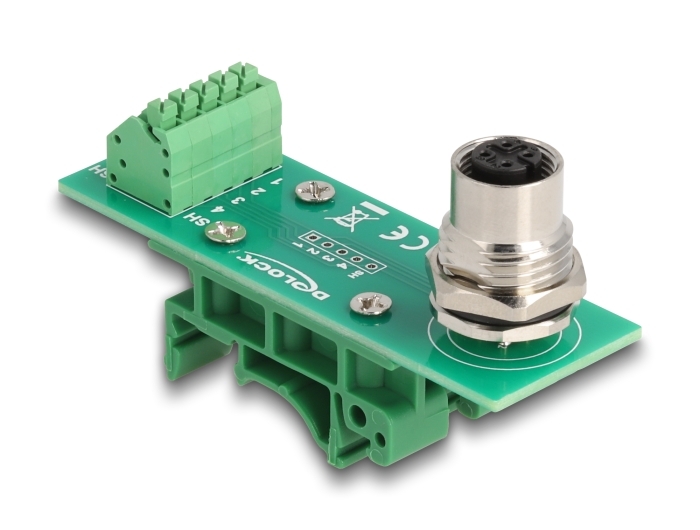

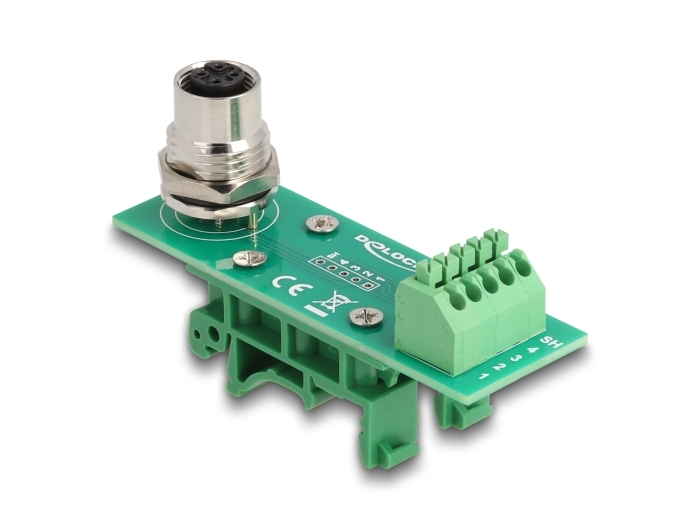

Delock M12 Transfer Module Adapter 4 pin A-coded female to 5 pin terminal block for DIN rail

DELOCK

60658

New

The M12 adapter by Delock enables a simple and secure connection between devices with M12 connectors and electrical circuits that use terminal blocks.

Various areas of application
The adapter offers a flexible solution for various applications in industry, automation technology, building automation and other areas where a reliable connection is required.

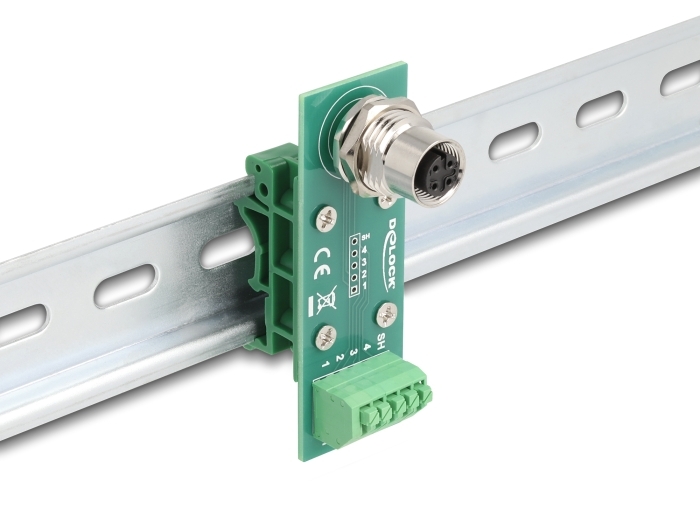

DIN rail mounting
With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail.
Specification:
• Connectors:
  1 x M12 female 4 pin A-coded
  1 x 5 pin terminal block
• DIN rail mounting: 15 mm and 35 mm
• M16 external thread
• Cable gauge: 24 - 20 AWG
• Pin assignment: 1:1
• Pitch: 3.50 mm
• Operating temperature: -40 °C ~ 80 °C
• Dimensions (LxWxH): ca. 76.2 x 43.0 x 25.4 mm
Package content:
• M12 adapter
• 2 x DIN rail clip
• 4 x screw
Data sheet:
http://www.delock.de/produkt/60658/pdf.html?sprache=en
