Delock M12 Adapter X-coded 8 pin female to RJ45 jack Cat.6A STP metal

Reference 60685

Condition: New

More info

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Installation in switch cabinet
Due to its compact dimensions, the adapter is very well suited for installation in a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure.

Specification:
• Connectors:
  1 x M12 female 8 pin X-coded
  1 x RJ45 jack
• Cat.6A specification

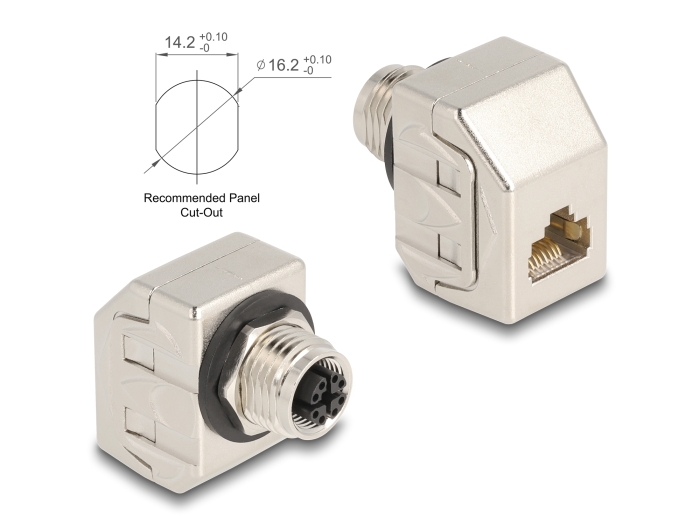

• Built-in hole Ø: 16.2 mm
• Housing material: zinc diecast
• Shielded (STP)
• M16 external thread
• Silicone sealing ring black
• Contacts gold-plated
• Operating voltage: max. 48 V
• Current:
  M12: max. 0.5 A
  RJ45: max. 1.5 A
• Operating temperature: -10 °C ~ 60 °C
• Protection class: IP67 (M12)
• Colour: silver
• Dimensions (LxWxH): ca. 39.6 x 34.0 x 26.0 mm

Package content:
• Adapter

Data sheet:
http://www.delock.de/produkt/60685/pdf.html?sprache=en
