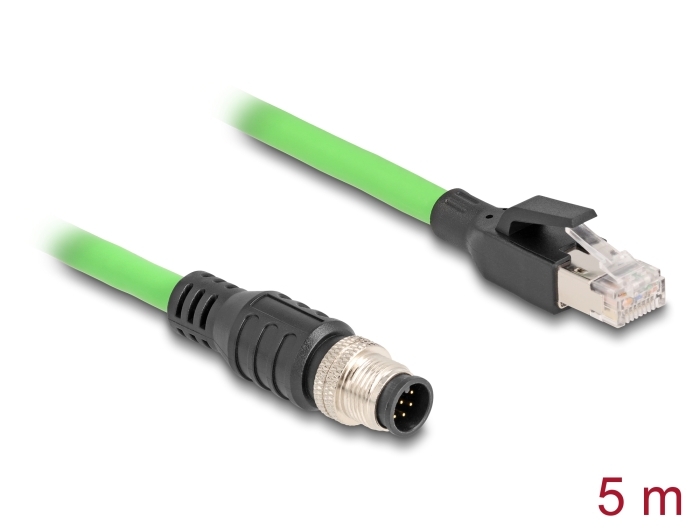

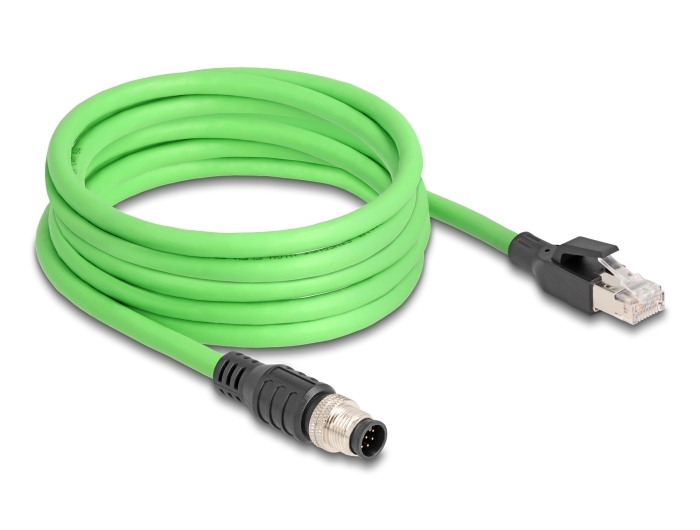

Delock M12 Cable A-coded 8 pin male to RJ45 male PUR (TPU) 5 m

Reference 80424

Condition: New

More info

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Durable PUR (TPU) cable jacket
The material of the cable jacket makes the cable flexible and durable, making it suitable for use in drag chains and harsh environments.

The cable is oil and UV resistant and meets the high requirements for industrial applications.

System requirements:
• A free M12 female port
• A free RJ45 jack

Specification:

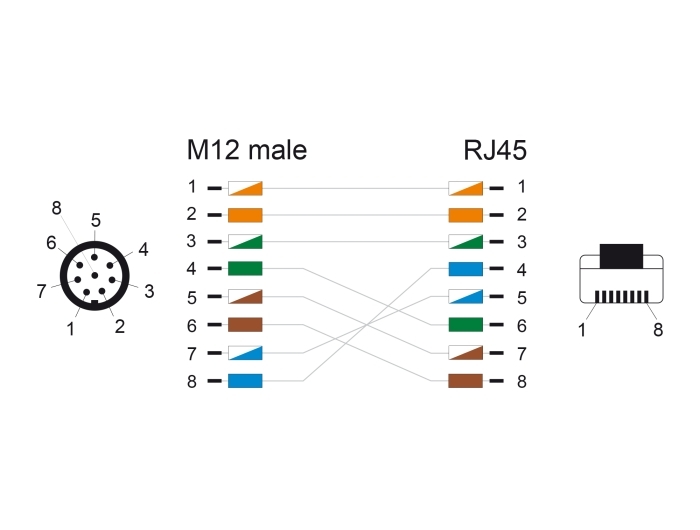

• Connectors:

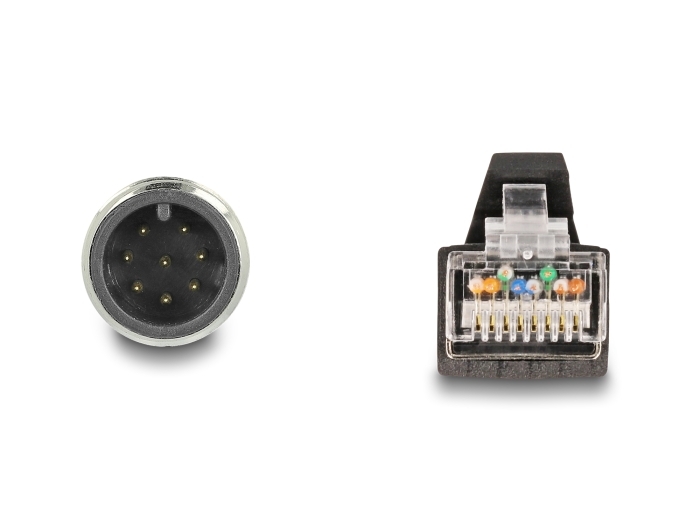

  1 x M12 male A-coded 8 pin
  1 x RJ45 plug
• Suitable for drag chains
• SF/UTP
• Shielding: aluminium foil, tinned copper braiding
• Copper conductor
• Cable gauge: 26 AWG
• Cable diameter: ca. 6.8 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 10,000,000
• Smallest bending radius:
  54.4 mm with fixed installation
  102.0 mm with flexible installation
• Oil-resistant
• UV-resistant
• Flammability class: UL 94
• Operating temperature:
  -25 °C ~ 80 °C with fixed installation
  -25 °C ~ 70 °C with flexible installation
• Protection class: IP67 (M12) / IP20 (RJ45)
• Colour: green
• Length incl. connectors: ca. 5 m

Package content:
• M12 cable

Data sheet:
http://www.delock.de/produkt/80424/pdf.html?sprache=en
