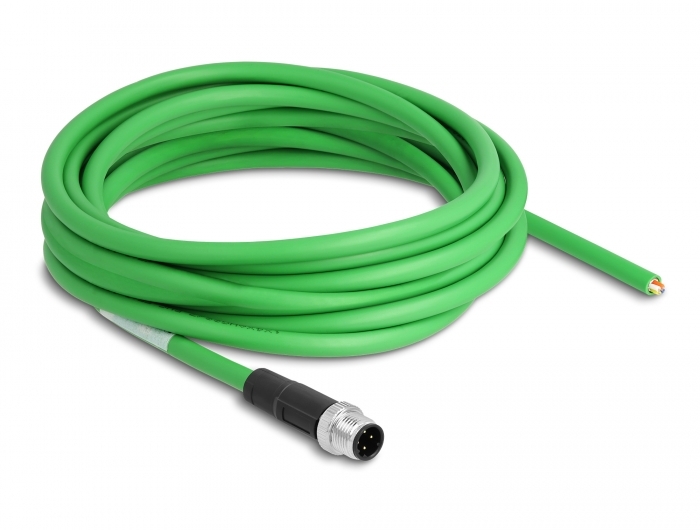

Delock Network cable M12 4 pin D-coded to open wire ends PVC 5 m

Reference 87848

Condition: New

More info

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
With the open wire ends, the cable can be connected directly to a device or e.g. to a distribution box, depending on the application.

System requirements:
• A free M12 female port

Specification:

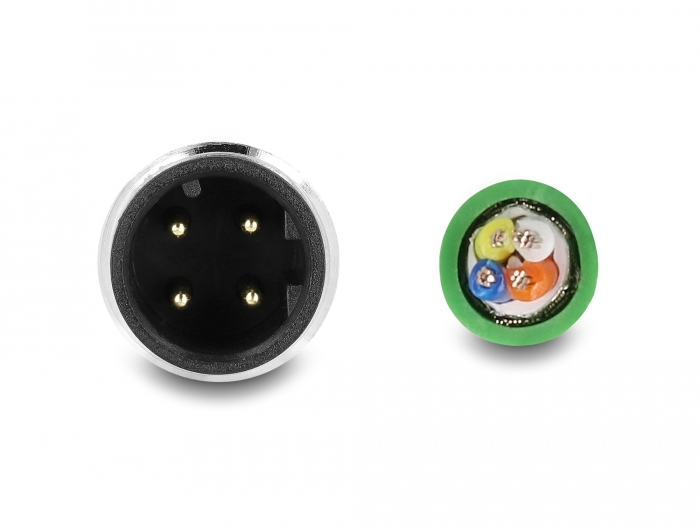

• Connectors:
  1 x M12 male 4 pin D-coded
  4 x open wires
• PROFINET specification
• SF/UTP
• Shielding: aluminium foil, transparent foil, tinned copper braiding
• Tinned copper conductors
• Cable gauge: 22 AWG
• Cable diameter: ca. 6.5 mm
• Cable jacket material: PVC
• Max. number of bending cycles: 1,000,000
• Smallest bending radius:
  19.5 mm with fixed installation
  45.5 mm with flexible installation
• UV-resistant
• Flammability class: FT4
• Operating temperature: -40 °C ~ 70 °C
• Colour: green

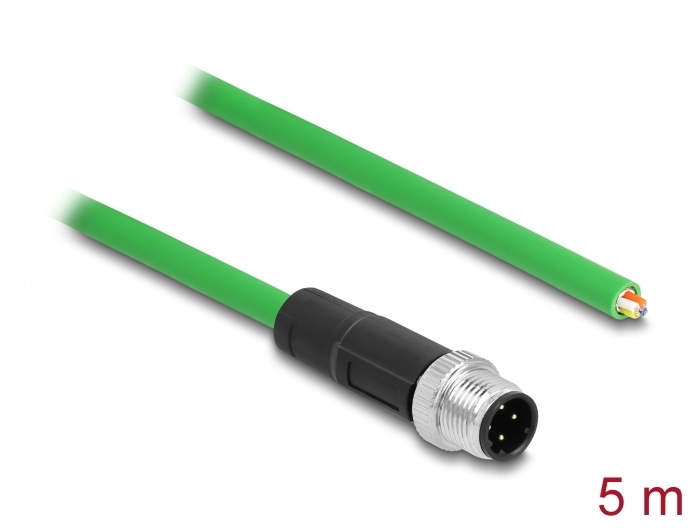

• Length incl. connectors: ca. 5 m

Package content:
• Patch cable

Data sheet:
http://www.delock.de/produkt/87848/pdf.html?sprache=en
