MANHATTAN TV-Wandhalterung 60"-120" 120kg FullMotion

MANHATTAN

462358

New

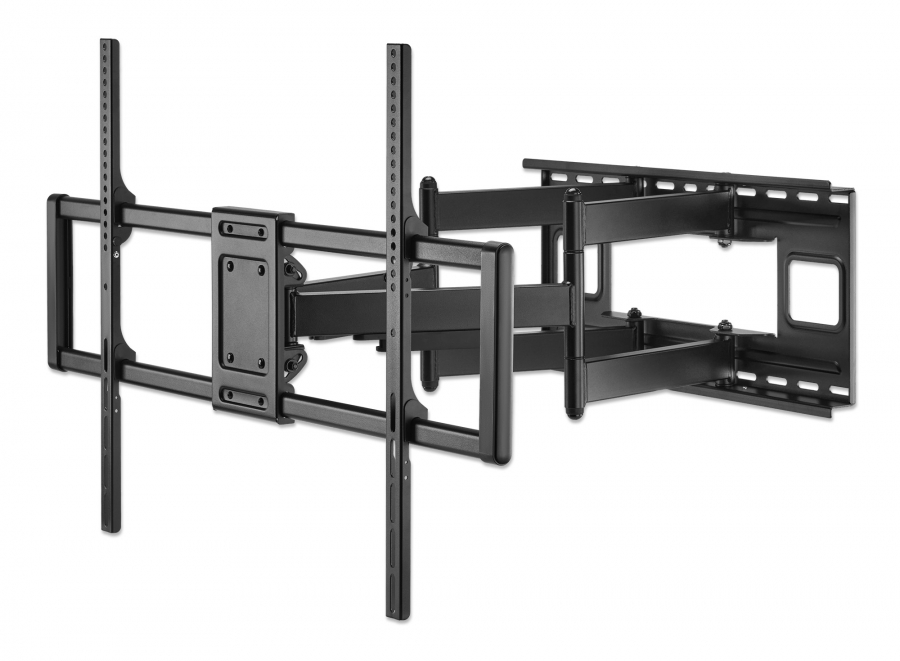

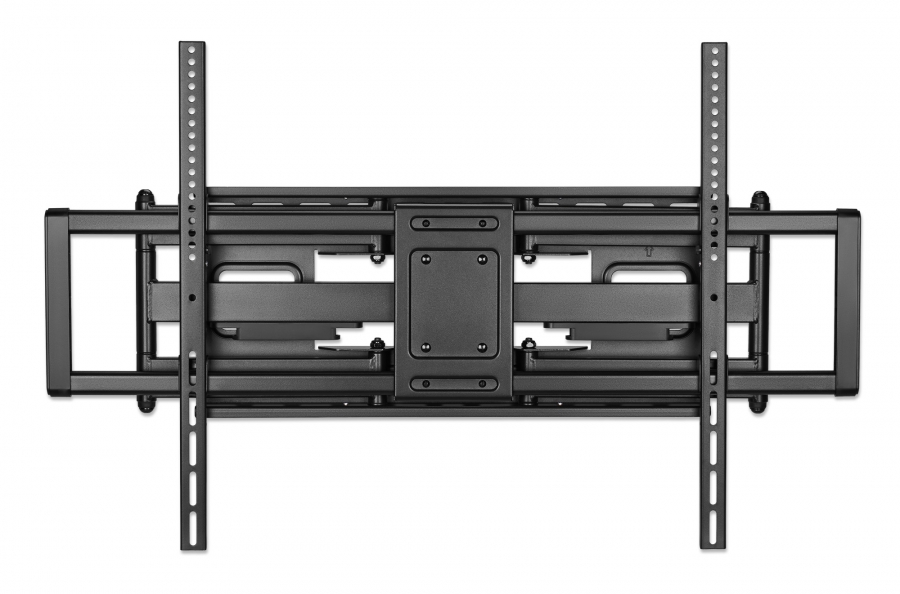

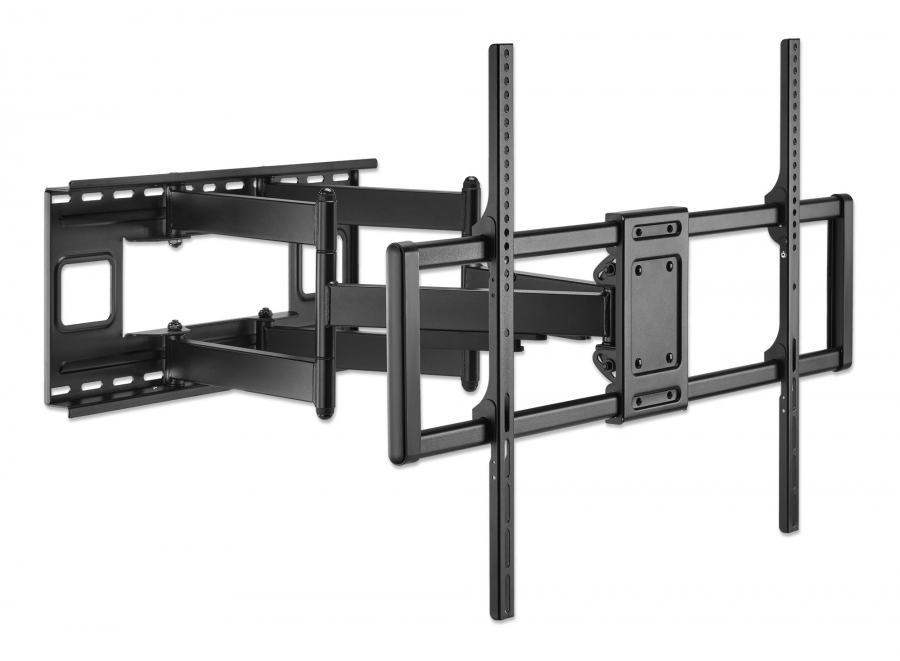

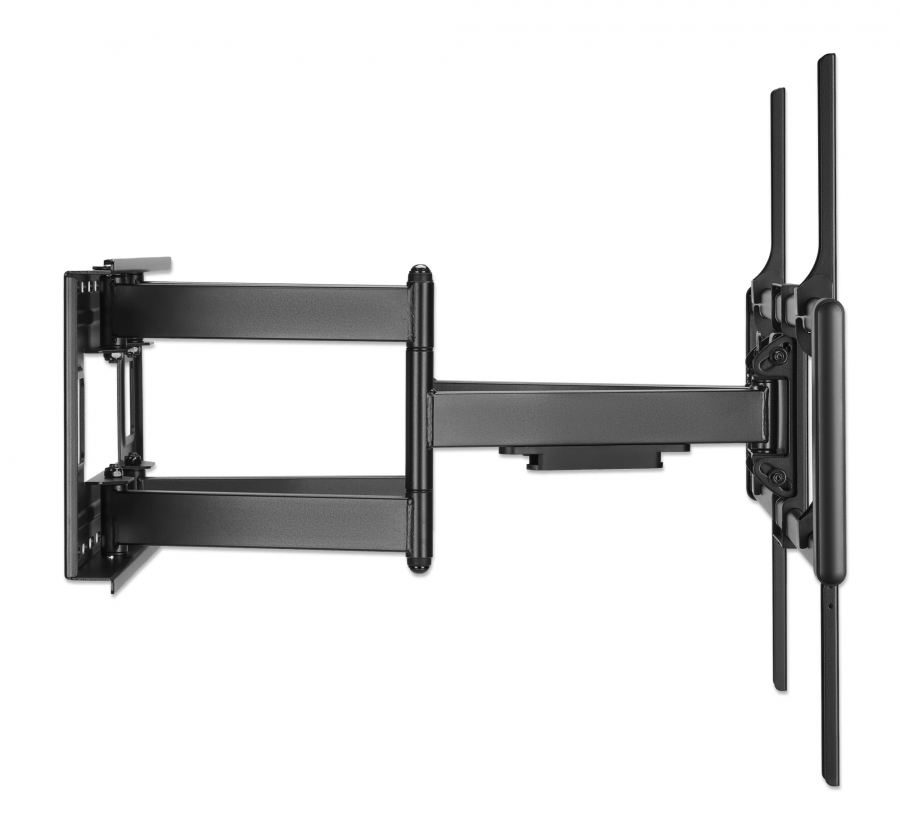

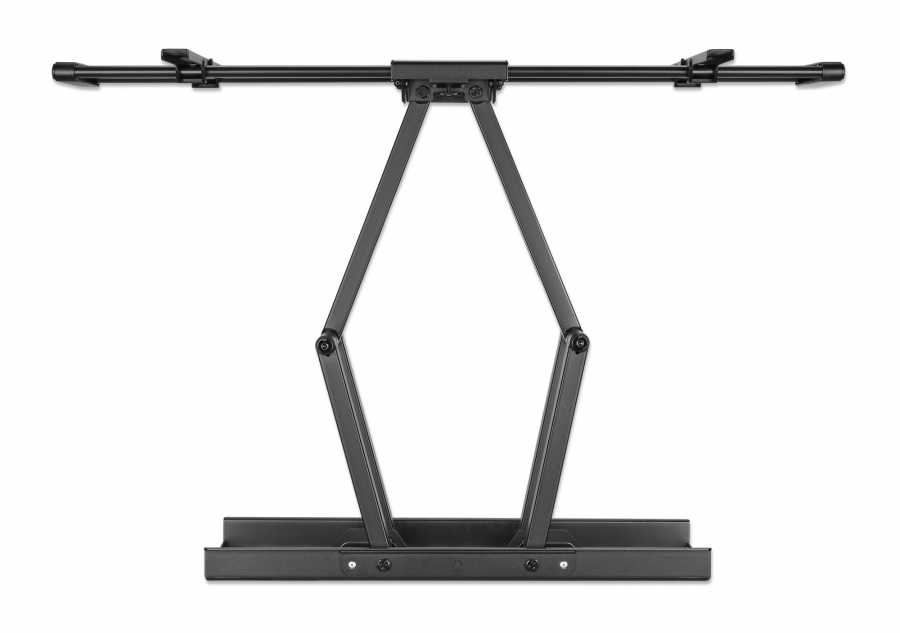

Ultra Heavy-Duty XXL Articulating TV Wall Bracket – fully adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare
This super-strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15° tilt and +/-60° swivel adjustment for optimized views. Constructed of thick reinforced powder-coated steel up to 3 mm, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120"" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level and +/-5° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. Intuitive quick-release latches let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

Maximum weight capacity120 kg
Maximum screen size3.05 m (120")
Mounting typeWall
Minimum VESA mount200 x 200 mm
Maximum VESA mount900 x 600 mm
Minimum screen size152.4 cm (60")
Panel mounting interface200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400,800 x 600,900 x 600
Number of displays supported1
Adjustable depth
Tilt adjustment
Tilt angle range-15 - 5°
Swivelling
Swivel angle range-60 - 60°
Built-in spirit level
Distance to the wall (max)70.3 cm
Distance to the wall (min)7.5 cm
Product colourBlack
Housing materialSteel
Quantity per pack1 pc(s)
Manual
Mounting kit
Packaging contentHeavy-Duty Large-Screen Full-Motion TV Wall Mount Attachable bubble level Installation hardware with instructions
Width1010 mm
Depth (max)70.3 cm
Height630 mm
Weight16.1 kg
Package width1055 mm
Package depth355 mm
Package height95 mm
Package weight18 kg
Package typeBox
Master (outer) case width1055 mm
Master (outer) case length355 mm
Master (outer) case height95 mm
Master (outer) case gross weight18 kg
Products per master (outer) case1 pc(s)

LCD
