Neomounts by Newstar DEH 10"-32" weiß Max.12KG medical 1/2

Reference FPMA-HAC100HC

Condition: New

More info

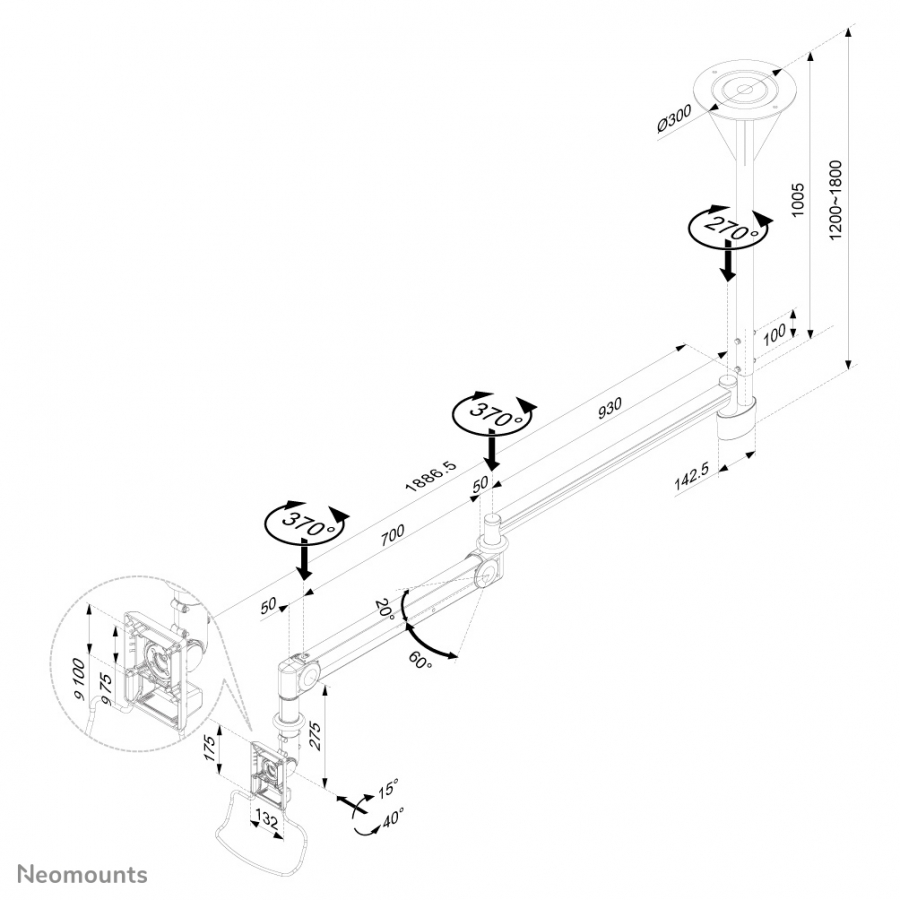

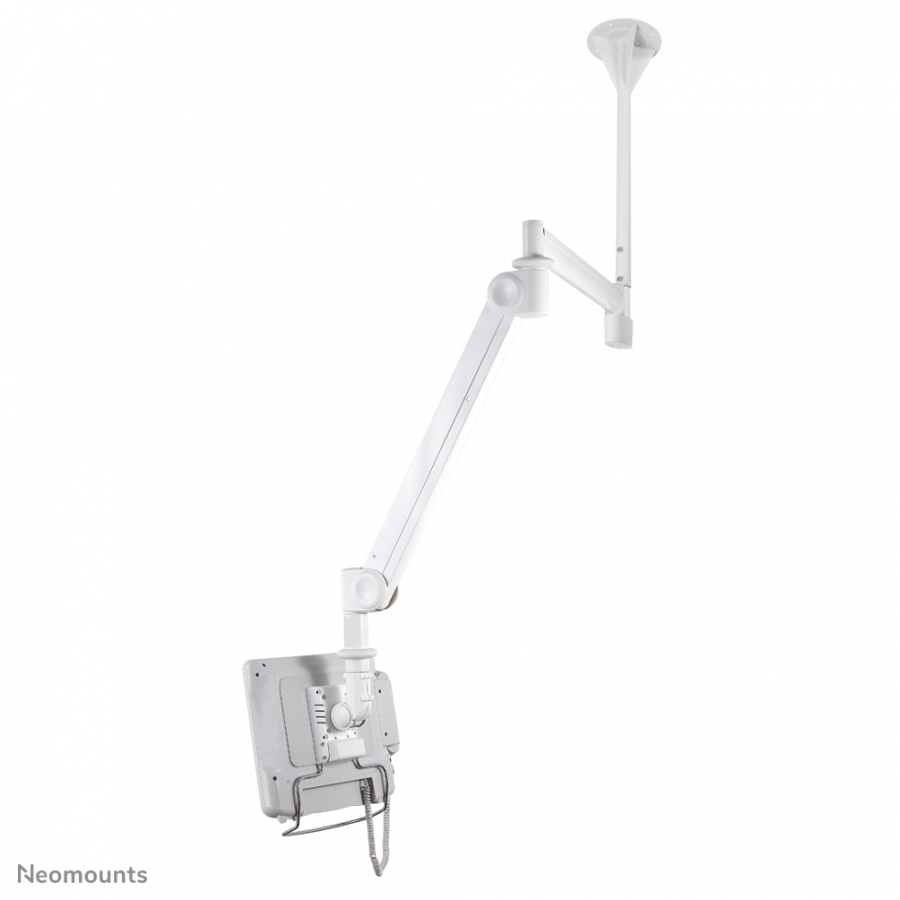

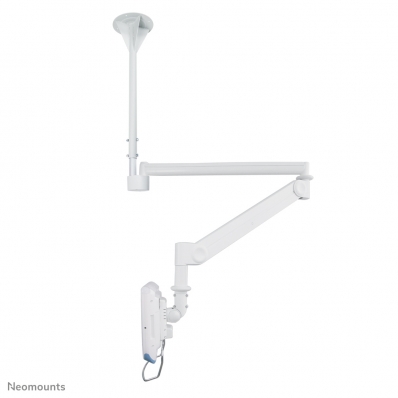

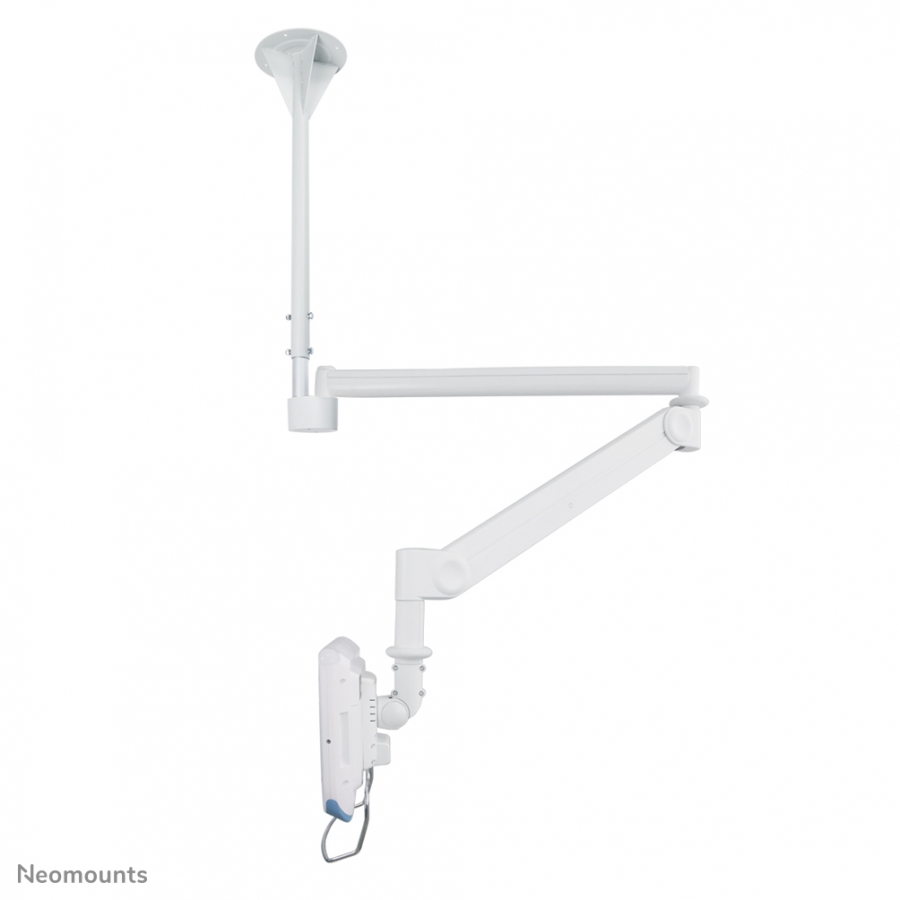

The Neomounts by Newstar ceiling mount, model FPMA-HAC100HC is a tilt- and swivel ceiling mount for medical flat screens up to 32". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.Neomounts by Newstar's versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.Neomounts by Newstar FPMA-HAC100HC has two pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 12 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.All installation material is included with the product.

Maximum weight capacity	12 kg
Maximum screen size	81.3 cm (32")
Mounting type	Ceiling
Minimum screen size	25.4 cm (10")
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	1
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	0 - 1700 mm
Tilt angle range	0 - 55°
Swivel angle	370°
Swivel angle range	0 - 270°
Number of pivot points	3
Product colour	White
Depth	1890 mm
Height	1700 mm
Package width	1010 mm
Package depth	300 mm
Package height	470 mm
Master (outer) case width	1010 mm
Master (outer) case length	300 mm
Master (outer) case height	470 mm
Master (outer) case gross weight	14.1 kg
Products per master (outer) case	1 pc(s)
Master (outer) case net weight	9.82 kg
Harmonized System (HS) code	85299097
Products per pallet (EU)	4 pc(s)
Country of origin	Taiwan
