LINDY 150m USB 2.0 Cat.6 Extender

Reference 43391

Condition: New

More info

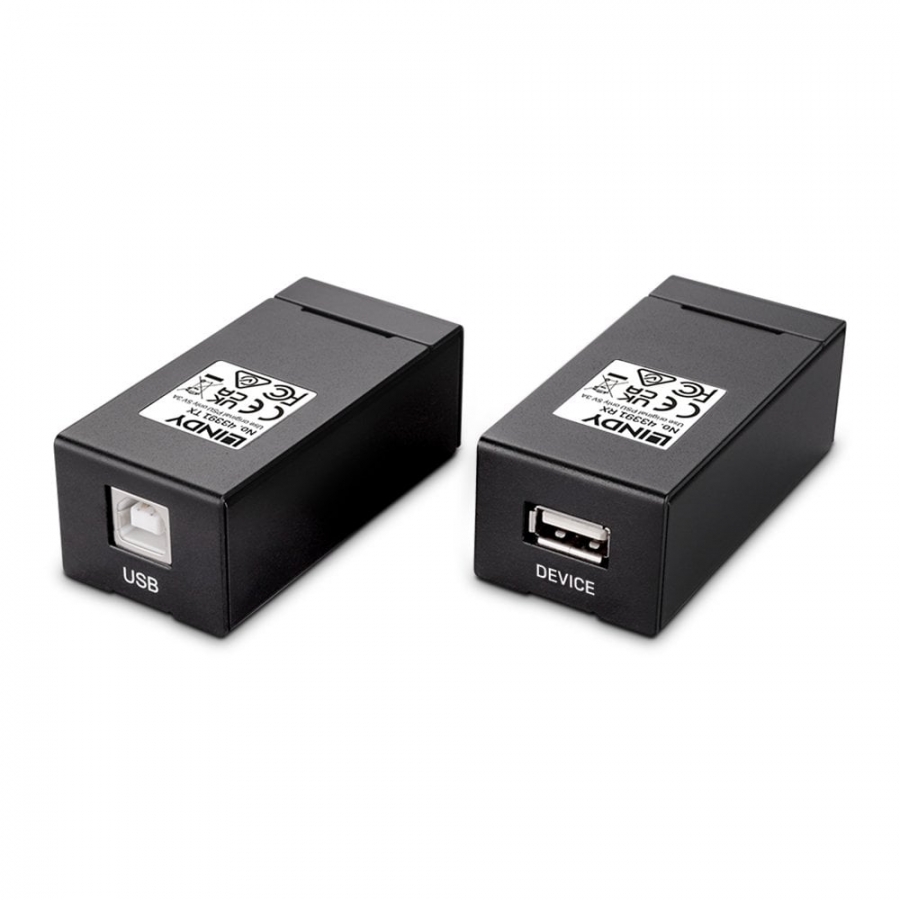

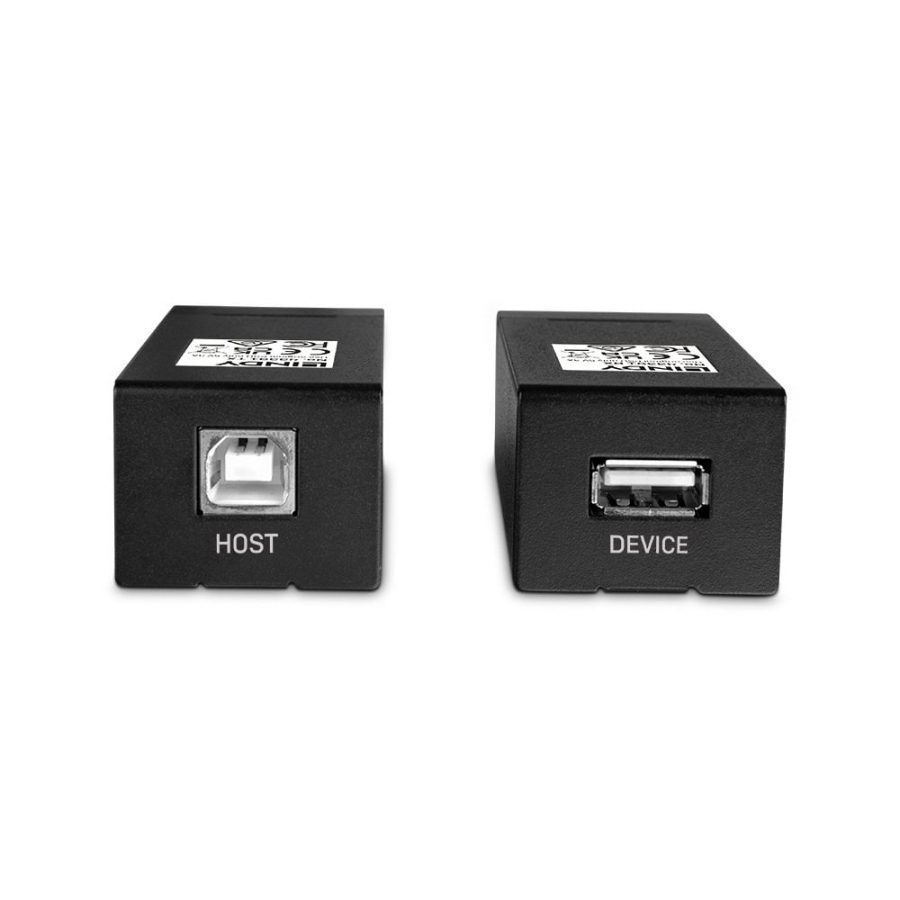

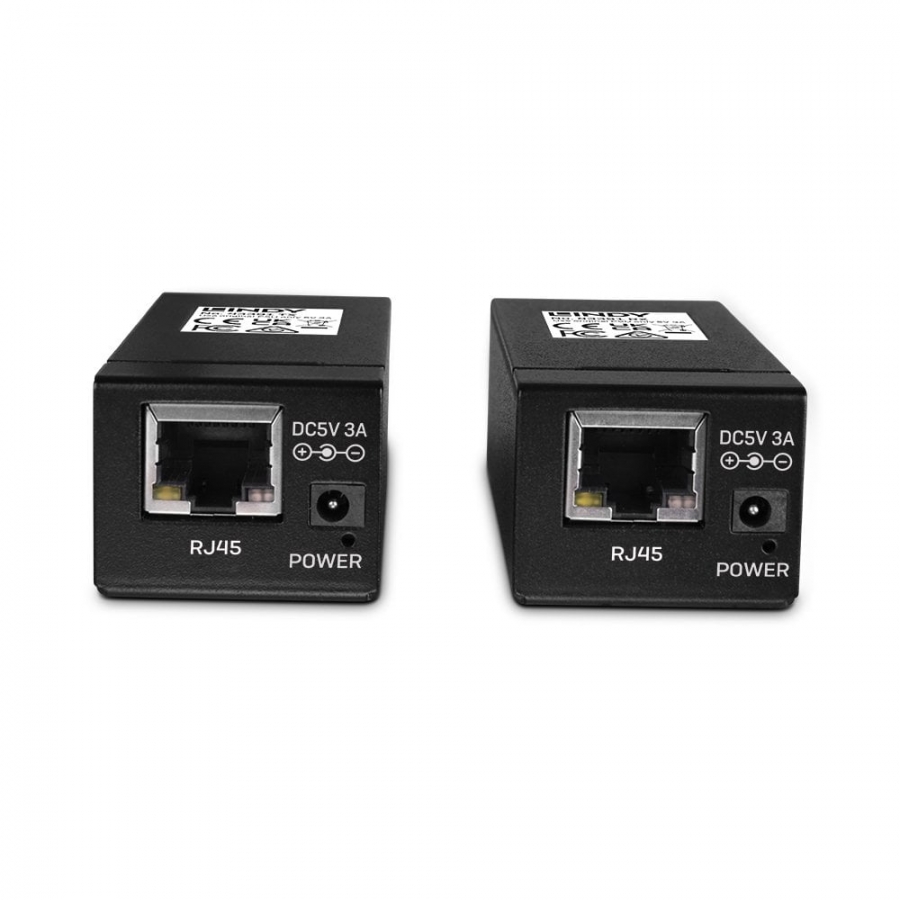

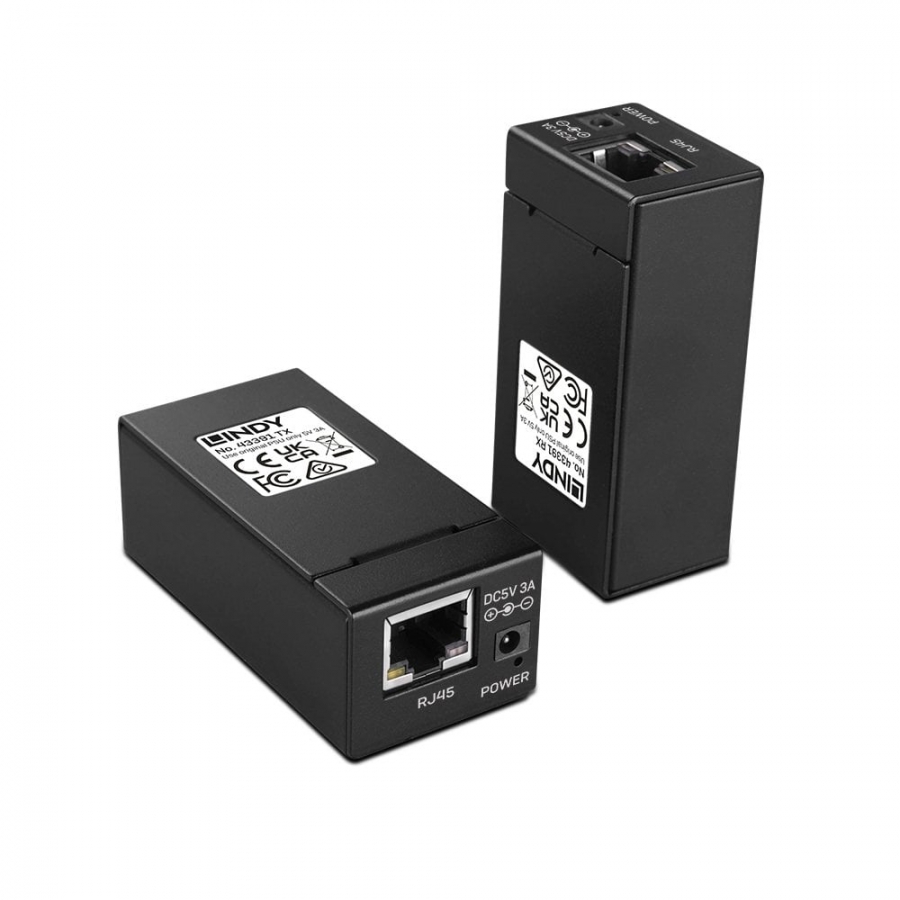

The Lindy 150m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 150m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.

This USB 2.0 Extender is suitable for many long-distance applications like remote printing, camera surveillance or controlling machines. This USB 2.0 Extender is supplied with a power adapter for the receiver unit to ensure secure and uninterrupted power. The robust metal housing makes it ideal for rugged environments.

Type	Console transmitter & receiver
Data transfer rate	480 Mbit/s
Maximum transfer distance	150 m
Product colour	Black
Housing material	Metal
LED indicators	Activity, Power
Cable types supported	Cat6
Sustainability compliance	Jā
Sustainability certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Plug and Play	Jā
USB 2.0 Type-A ports quantity	1
USB 2.0 Type-B ports quantity	1
RJ-45 ports quantity	2
DC-in jack	Jā
Width	67 mm
Depth	32 mm
Height	25 mm
Transmitter weight	84 g
Receiver weight	84 g
Package width	220 mm
Package depth	194 mm
Package height	60 mm
Package weight	600 g
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Manual	Jā
Power source type	DC
Output voltage	5 V
Output current	3 A
