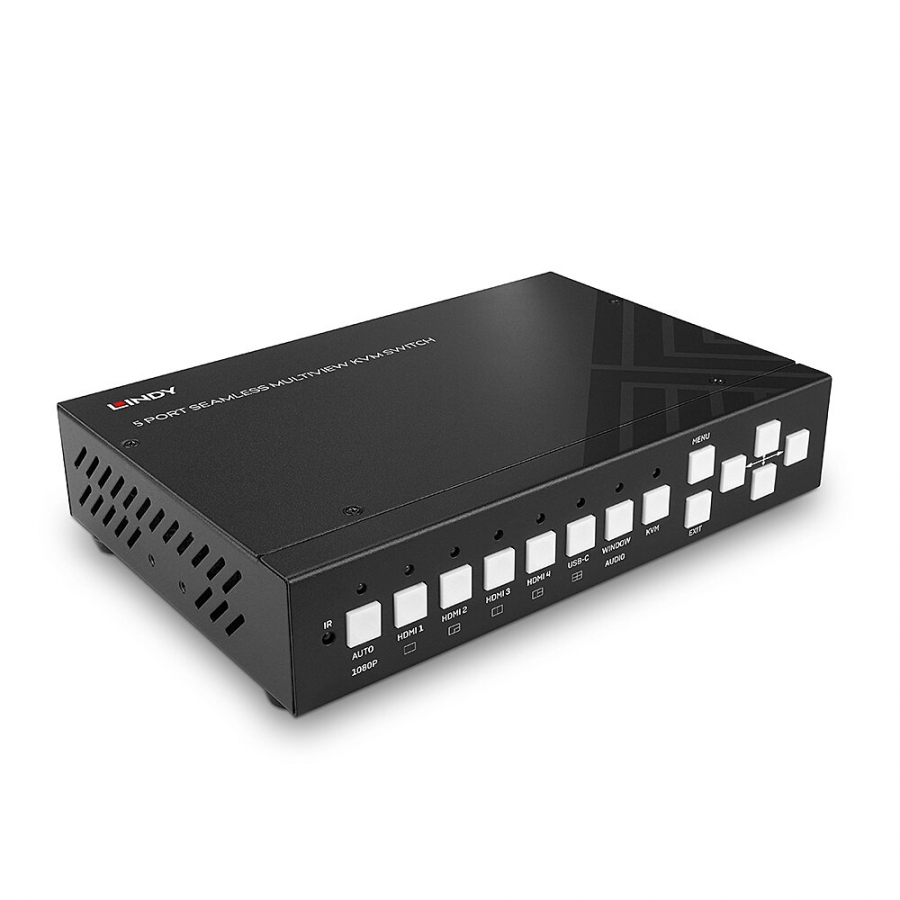

Lindy 5 Port HDMI 4K60 Seamless Multiview KVM Switch

Specifications

• AV Interface: HDMI, Type C
• Console Interfaces: USB
• Interface Standard: HDMI 2.0, USB 2.0
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8Bit
• HDCP Support: 2.2
• Supported Audio: LPCM, AC3, DD+, DTS, DTS-HD Up to 7.1 channel
• Separate Audio Ports: 3.5mm, TosLink (Optical)
• Serial Interface: 4-pin phoenix connector
• Console Number: 1
• Max Number PC/Server: 5
• Cascadable: No
• Switching Method: OSD menu, IR remote control, hot-keys (KVM), TCP/IP and RS-232 commands
• 19" Rack Mountable: No
• Special Features: Multiview, Seamless, USB roaming, Audio volume control

Connectors

• Console Interfaces: 2x HDMI (Female), 2x USB Type A (Female), 3.5mm Audio (Female), TosLink (Female)
• PC/Server Interfaces: 4x HDMI (Female), USB Type C (Female), 4x USB Type B (Female)
• Other Interfaces: RS-232 4-pin phoenix, RJ45, USB Type A (Female) service
• Power: 5.5/2.1mm

Physical Properties

• Dimensions WxDxH: 219x146x44mm (8.62x5x75x1x73in)
• Housing Material: Metal
• Net Weight: 1.39kg (3.06lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 10 - 70% RH (non-condensing)
• Power Requirements: 12VDC 2.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 360x260x75mm (14.17x10x24x2x95in)
• Gross Weight: 1.7kg (3.75lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 5 Port HDMI 4K60 Seamless Multiview KVM Switch
• IR remote control
• 4-Pin Terminal Block
• 2x Mounting ears with screws
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 32330
• EAN: 4002888323307
