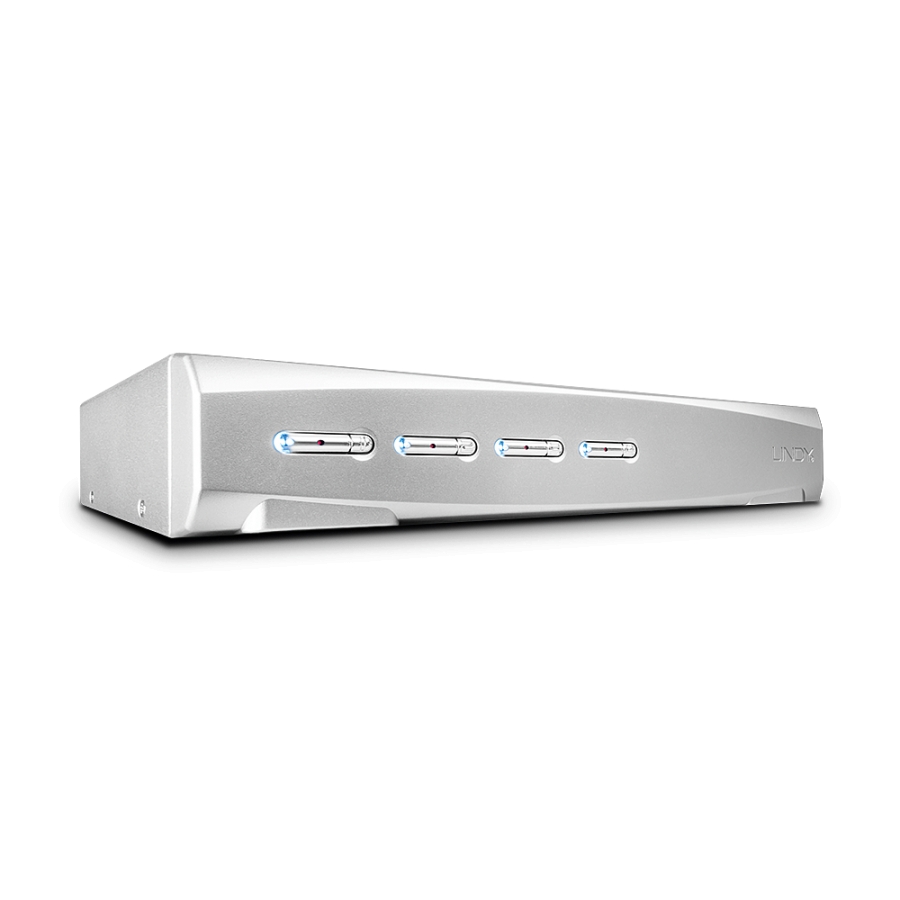

Controls four DVI equipped PCs from a single keyboard, mouse and monitor Switch via the unit’s push buttons or keyboard hot keys Supports DVI-I single link signals, up to 1920x1200 Independent audio switching and 2 ports USB 2.0 Hub for sharing additional USB peripherials 2 year warrantyA KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.The Lindy 4 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four DVI equipped PCs from a single keyboard, mouse and monitor.Supports single link resolutions up to 1920x1200, it can also be used with analogue VGA PCs using adapter cables with support for analogue resolutions up to 2048x1536. The audio output ports on the main unit also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with the 2 ports USB 2.0 hub. Both audio and USB hubs can be switched independently of the computers allowing you to print from one PC whilst working on another for example.It supports True Transparent USB switching, an advanced USB emulation technology that allows the KVM to recognise specific keyboard & mouse models and emulate any of their associated special key and function information. This also provides enhanced support for combined use with KVM extenders.The KVM switch features multiple switching options including push buttons on the unit and configurable hotkeys that provide simple, reliable control for the user, great for both professional and first time users.Please Note: connection cables are not included.
|

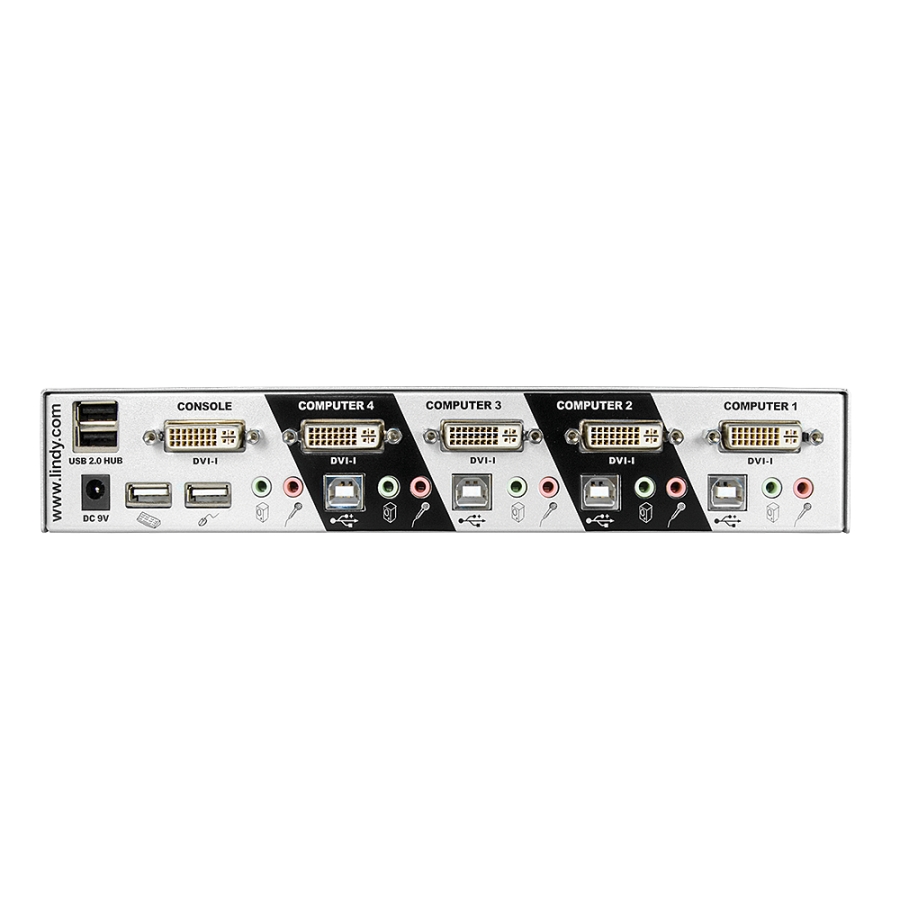

| Number of computers controlled | 4 | | Keyboard port type | USB | | Mouse port type | USB | | Video port type | DVI-I | | Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A | | DVI-I ports quantity | 5 | | USB 2.0 Type-B ports quantity | 4 | | Console USB ports quantity | 2 | | USB hub | Y | | USB 2.0 Type-A hub ports quantity | 2 | | USB connector type | USB Type-A, USB Type-B | | Audio connections | Y | | Headphone outputs | 5 | | Number of microphone inputs | 5 | | DC-in jack | Y | | HD type | Full HD+ | | Maximum resolution | 2048 x 1536 pixels | | Product colour | Silver | | Housing material | Metal, Plastic | | Cascadable | Y | | Display switch button | Y | | Hot keys | Y | | Certification | CE, FCC, REACH | | Built-in display | N | | Power source | DC | | DC input voltage | 9 V | | Input current | 1.1 A | | Sustainability certificates | RoHS | | Operating temperature (T-T) | 0 - 50 °C | | Storage temperature (T-T) | -20 - 60 °C | | Operating relative humidity (H-H) | 0 - 90% | | Width | 255 mm | | Depth | 120 mm | | Height | 46 mm | | Weight | 1.25 kg | | Package width | 310 mm | | Package depth | 215 mm | | Package height | 65 mm | | Package weight | 1.64 kg | | Manual | Y | | AC adapter included | Y | | Harmonized System (HS) code | 85176200 |
|
