LINDY KVM Switch Pro 4Port HDMI 4K Quad View 4k-Konsole

Reference 32329

Condition: New

More info

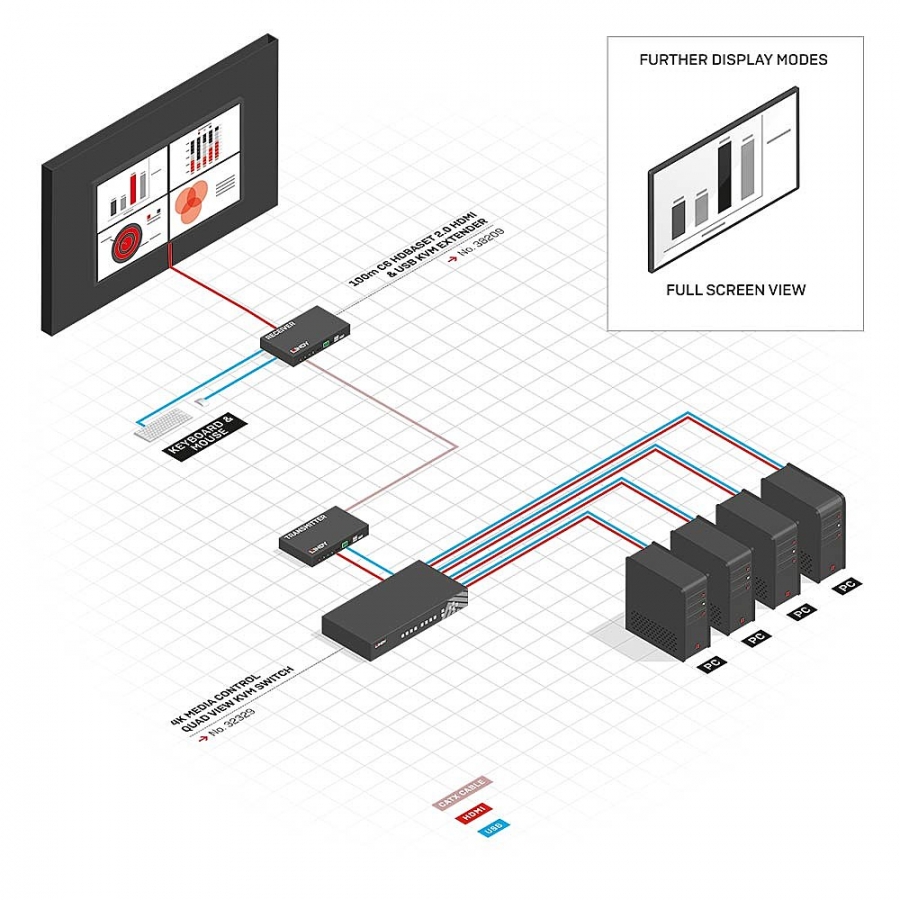

Allows you to connect up to 4 Full HD & USB HID source devices and be displayed and controlled at the same time from a 4K console Supports HDMI 2.0 4K@60Hz 4:4:4 8bit video resolutions & HDCP 1.4 on the output port Supports full screen mode with realtime 4K upscaling and seamless switching between the sources 2 Year WarrantyThis 4K HDMI KVM switch with Quad View feature is able to display 4 FullHD sources like PC, servers or DVR at the same time on a 4K display or projector and switch to a full screen mode with source video signal upscaling in realtime. The user is able to interact with each attached device by simply moving the mouse pointer from one quadrant to another and switch to a full screen view as needed by double clicking the mouse’s scroll wheel.It's also possible to increase the number of the controlled sourced installing one additional switch in a cascade configuration. Thanks to seamless switching capabilities switching from one source to another is completed instantly without any black screen or screen freezing, making it perfect for professional and mission critical applications such as a control room installation.

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	HDMI, USB A
HDMI ports quantity	6
HDMI version	2.0
USB 2.0 Type-B ports quantity	4
Console USB ports quantity	2
USB 2.0 Type-A hub ports quantity	2
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
HDCP	Y
Rack mounting	Y
Product colour	Black
Rack capacity	1U
Housing material	Metal
Cascadable	Y
Certification	CE, FCC, REACH
Power source	DC
DC input voltage	12 V
Input current	5 A
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Width	438 mm
Depth	200 mm
Height	44 mm
Weight	2.7 kg
Package width	570 mm
Package depth	245 mm
Package height	105 mm
Package weight	3.64 kg
Package type	Box
Manual	Y
AC adapter included	Y
Rack mount kit	Y
Harmonized System (HS) code	85176200
