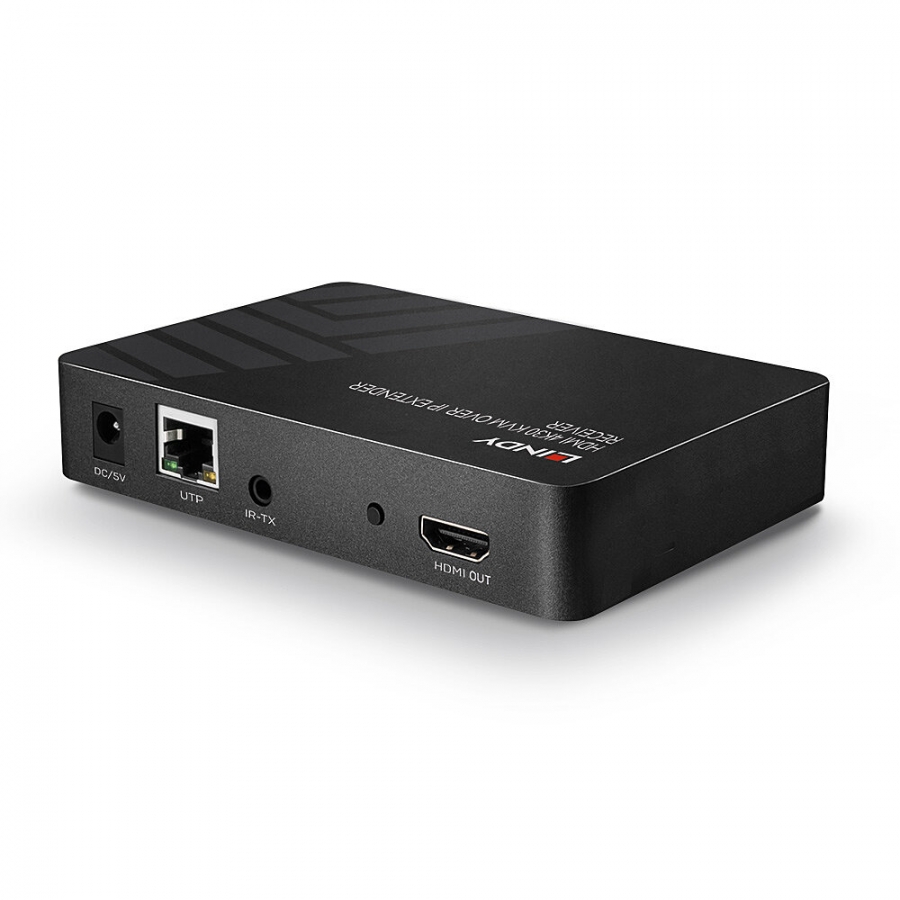

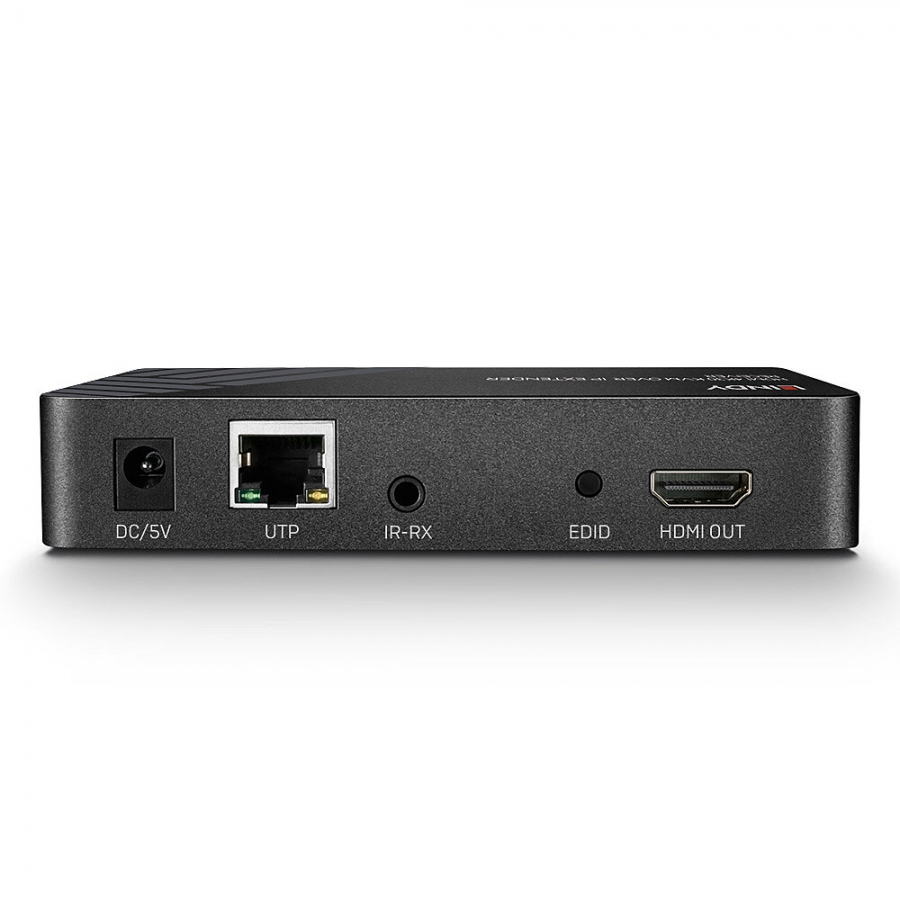

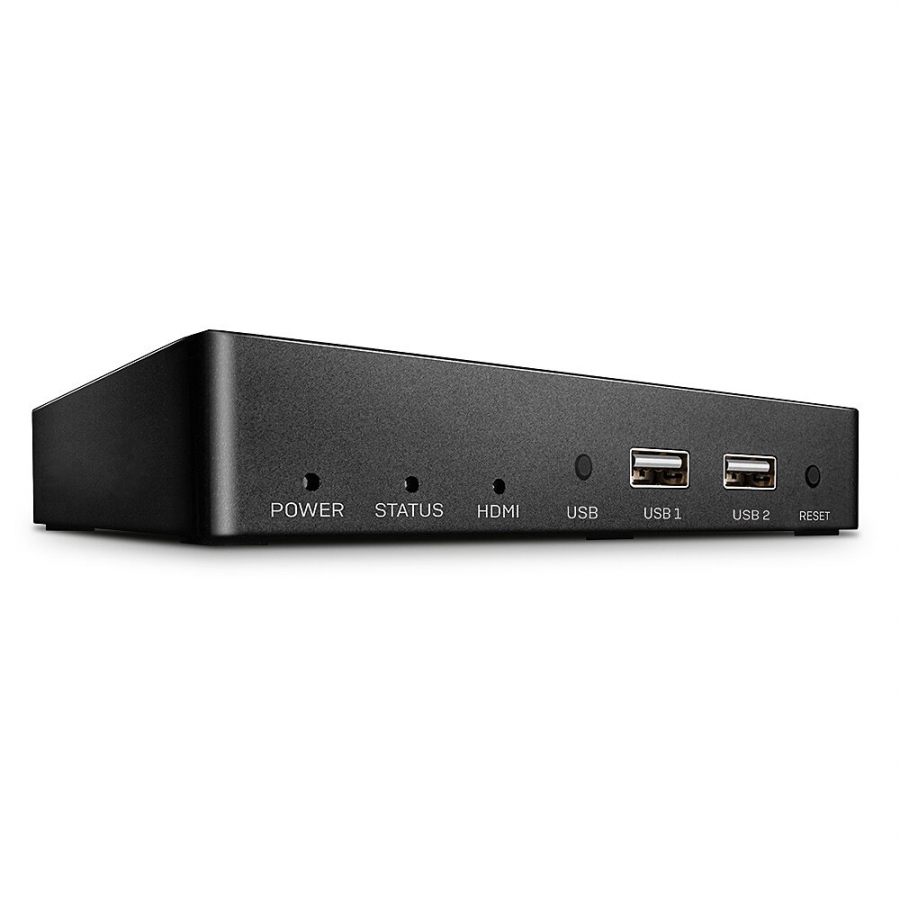

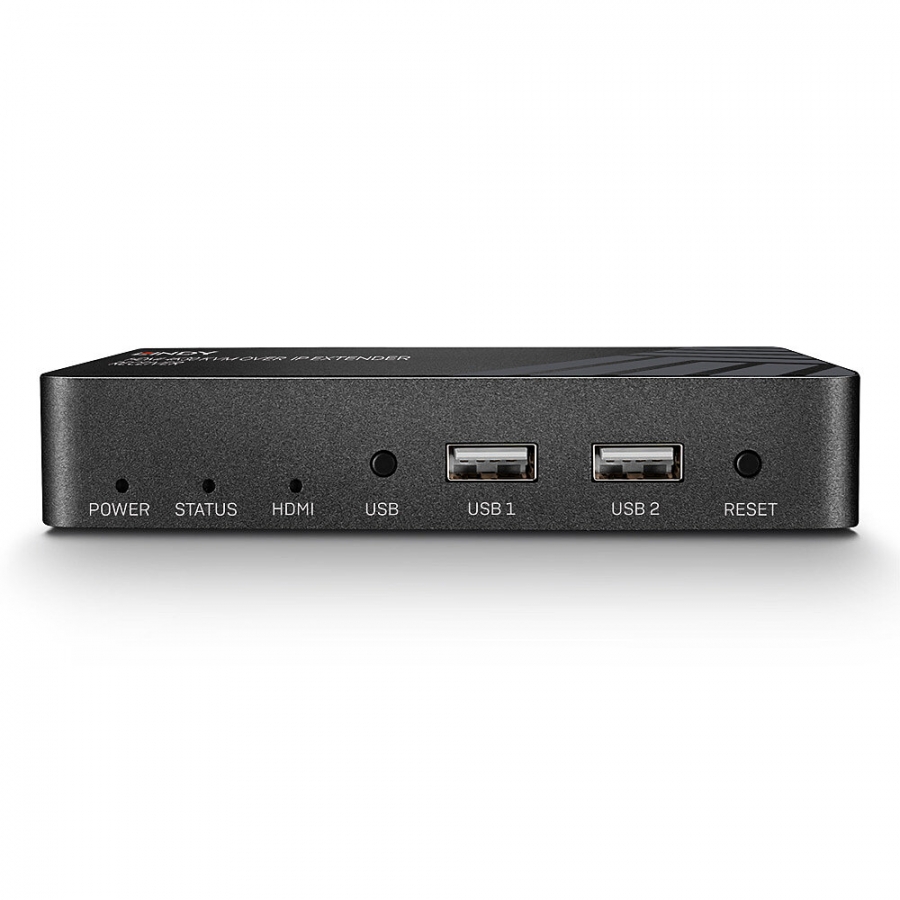

LINDY 4K KVM over IP Extender, Receiver

Reference 38265

Condition: New

More info

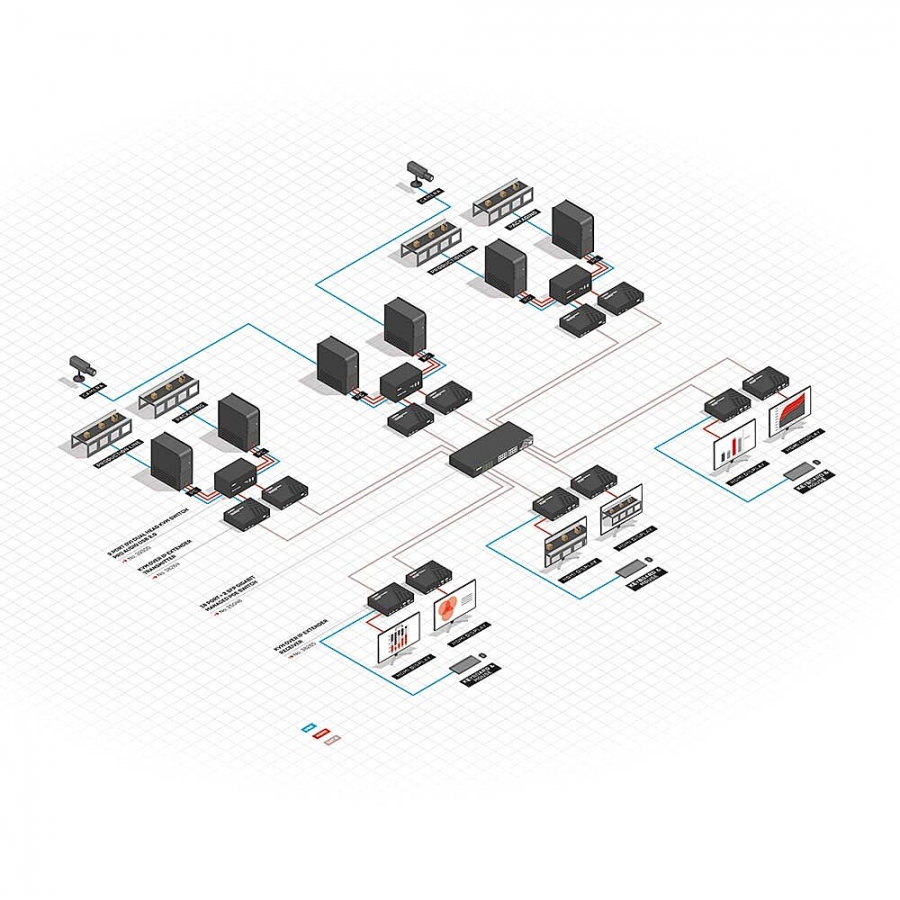

Extends HDMI 4K30, USB HID and IR Over an IP network Supports point to point and point to multipoint installation up to 150m (492.12ft) HDMI 1.4 & HDCP 1.4 compliant Requires a Gigabit Ethernet (1000BaseT) compliant network for multipoint installation 2 year warrantyThe Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This receiver unit must be connected to a transmitter unit (No. 38264 – not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It's also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter Unit (No. 38264 - not included) to be controlled by several consoles each connected to this receiver via a dedicated Ethernet switch or VPN.This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.

Type	AV receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	150 m
Maximum refresh rate	30 Hz
Extended display identification data (EDID)	Y
LED indicators	Y
Bandwidth	10.2 Gbit/s
HDCP	Y
Material	Plastic
Product colour	Black
Certification	CE, FCC, REACH
Connectivity technology	Wired
Ethernet LAN	Y
RJ-45 input ports	1
Number of HDMI outputs	1
HDMI version	1.4
USB ports quantity	2
DC-in jack	Y
Input current	2 A
Operating voltage (receiver)	5 V
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 75 °C
Operating relative humidity (H-H)	10 - 80%
Width	124 mm
Depth	85 mm
Height	24 mm
Weight	200 g
Package width	220 mm
Package depth	170 mm
Package height	60 mm
Package weight	800 g
AC adapter included	Y
Manual	Y
Sustainability certificates	RoHS
