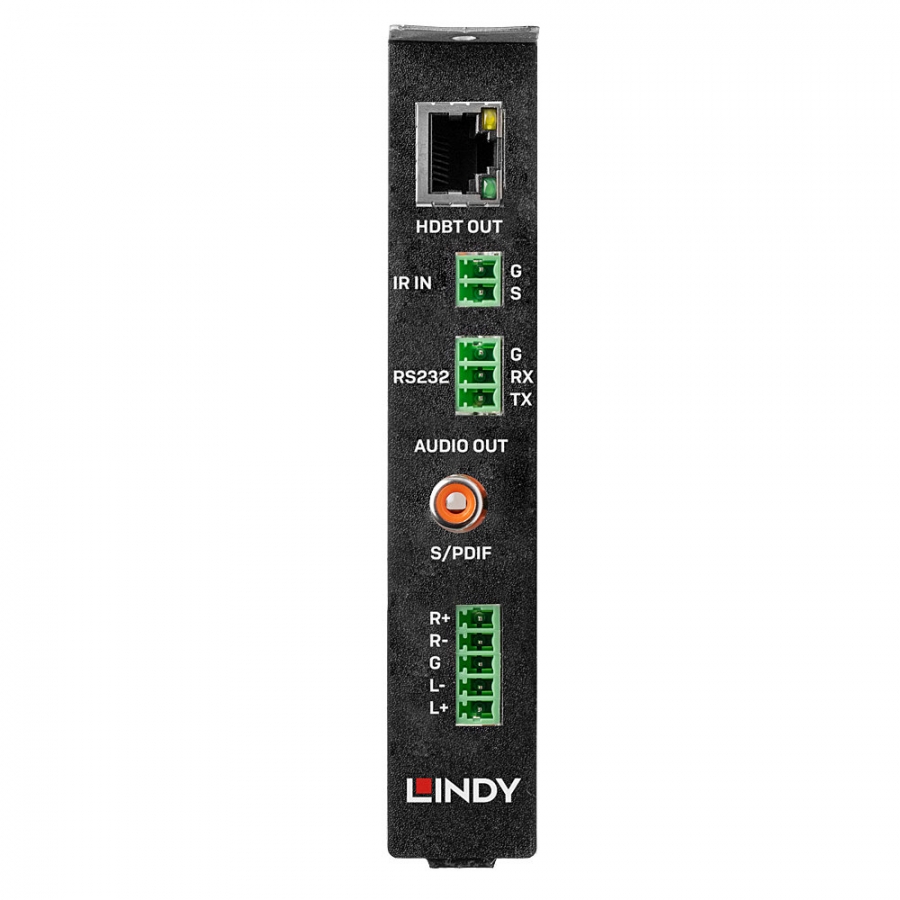

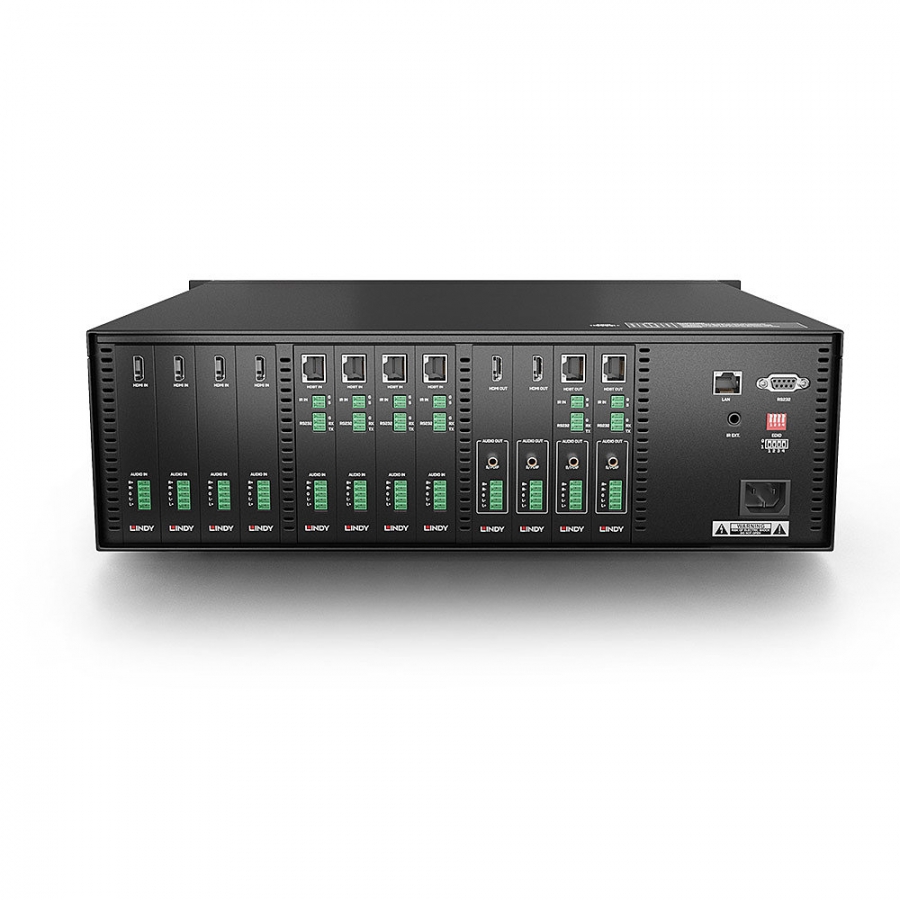

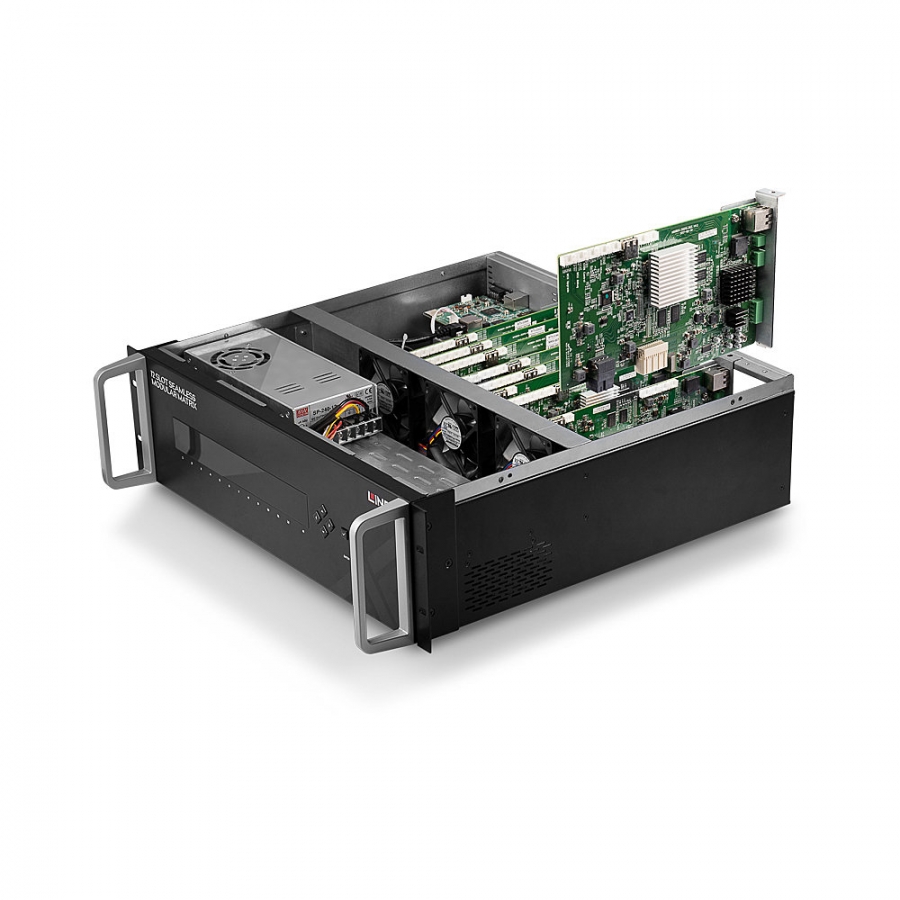

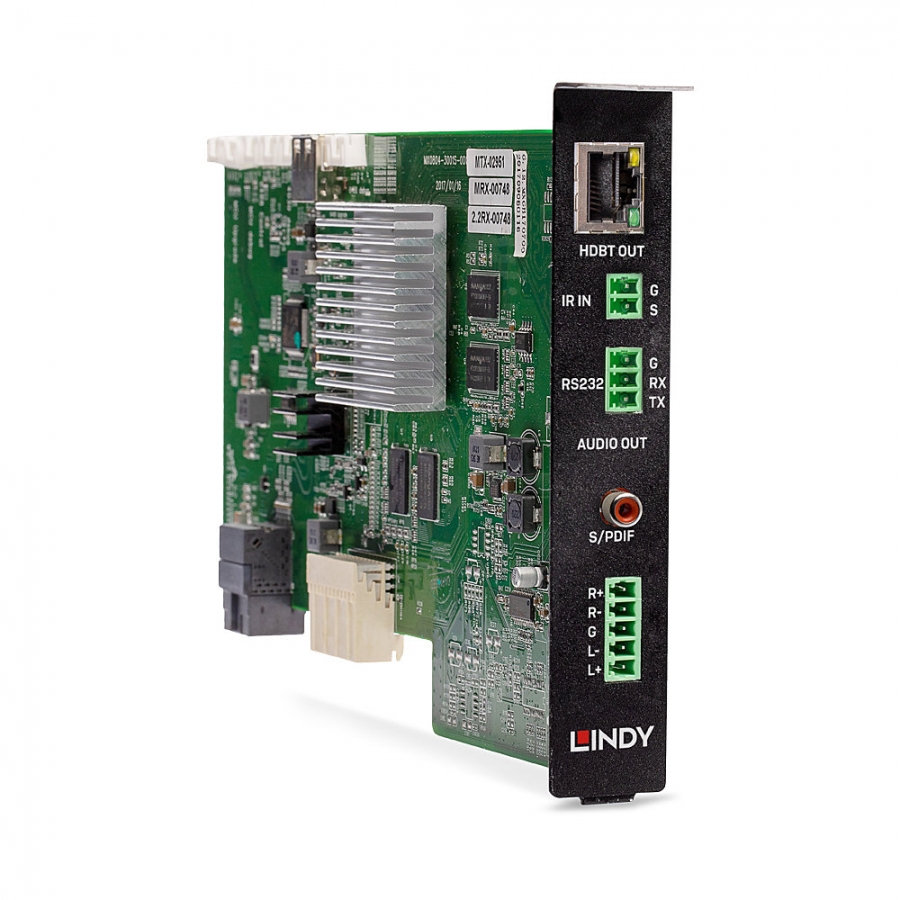

Adds a single HDBaseT output connection to the 12 slot modular matrix chassis (38350) Develop customised 12-slot configurations to suit any installation Extends 4K@60Hz 4:2:0 resolutions, Bi-directional RS-232 & IR Control up to 100m over Cat.X cable Digital & Analogue Audio De-embedding 2 year warrantyThe Lindy 12 Slot Seamless Modular Matrix is a powerful AV device that creates flexible, centralised installations in a variety of environments. With fully customisable configurations of HDMI and HDBaseT boards possible, from 1x11, 6x6, 8x4 and more, this solution can be tailored to meet the requirements of any installation within education, hospitality, corporate or government sectors.This board can be combined with 38351, 38352 or 38353 to create a fully customised 12 slot solution that meets the requirements of any installation. This board includes a single RJ-45 Female port for use with HDBaseT receivers and matricesThis allows for the extension of 4K@60Hz 4:2:0 HDMI signals over distances up to 100m with a compatible HDBaseT transmitter, perfect for remotely placing source devices away from the matrix or providing control options from a distance via RS-232 & IR.The HDBaseT board also includes digital (SPDIF) and analogue audio ports allowing for extraction to separate speakers, soundbars or amplifiers, to add captivating dual-channel audio to the video content, providing an enhanced stereo experience.If desired, Lindy can pre-install the required modular boards that have been purchased, providing a quick and simple installation for the user once the matrix has been received.
|
