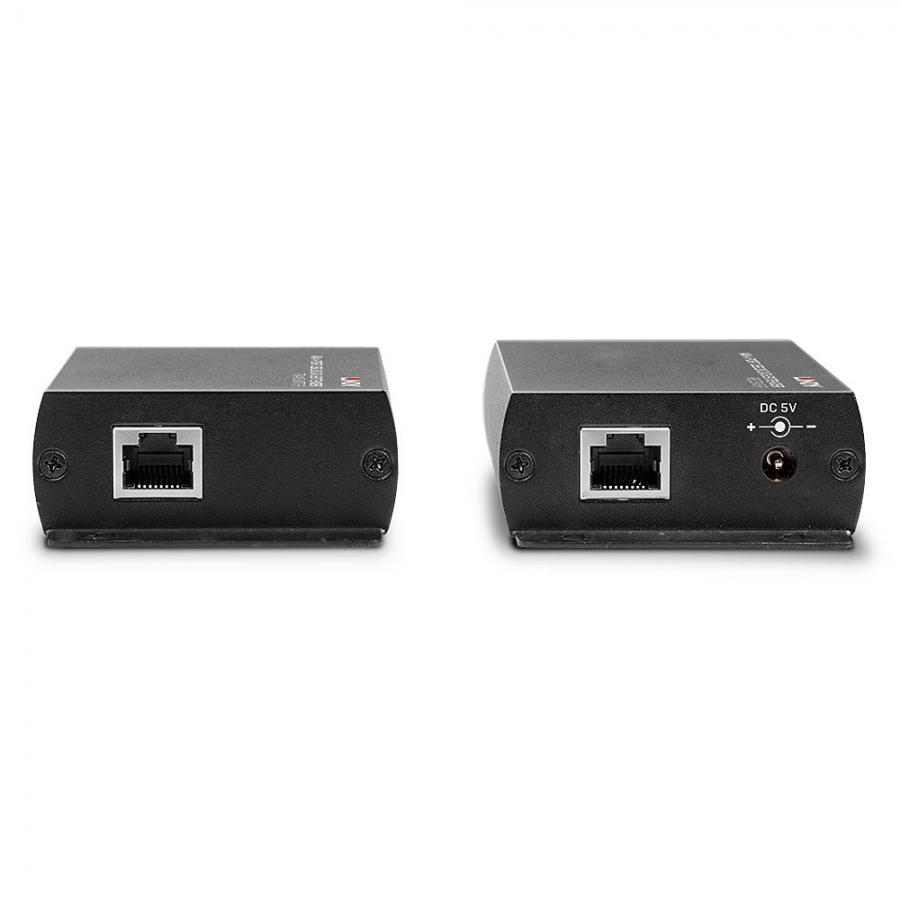

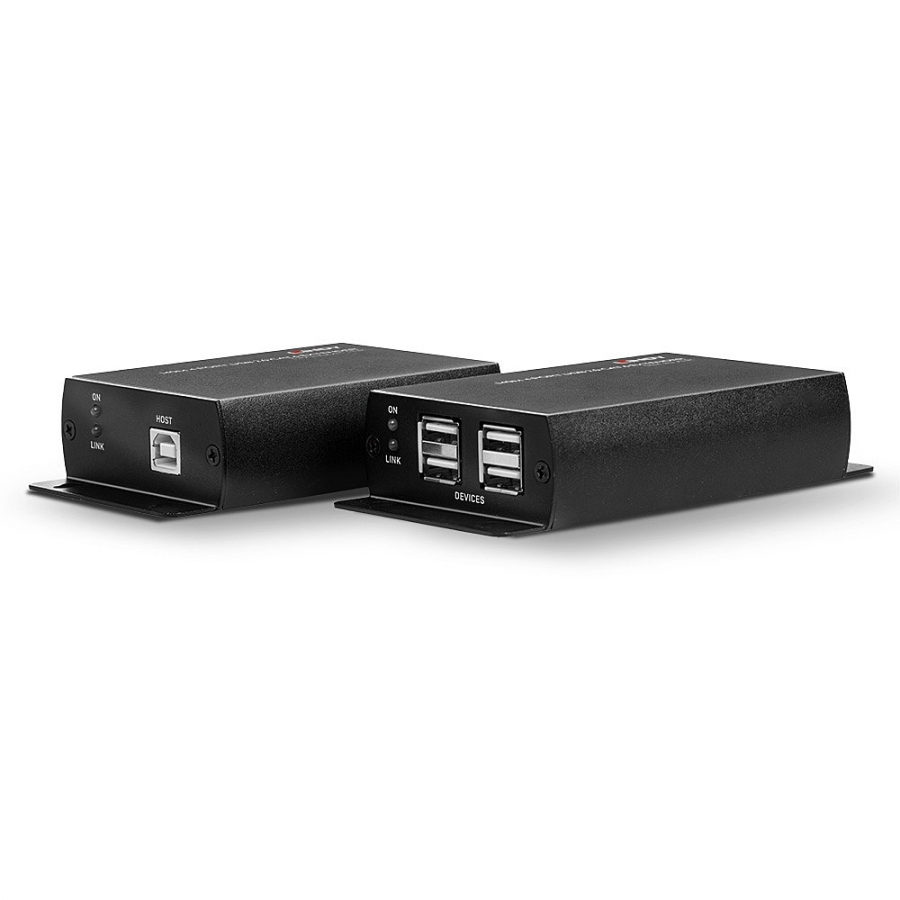

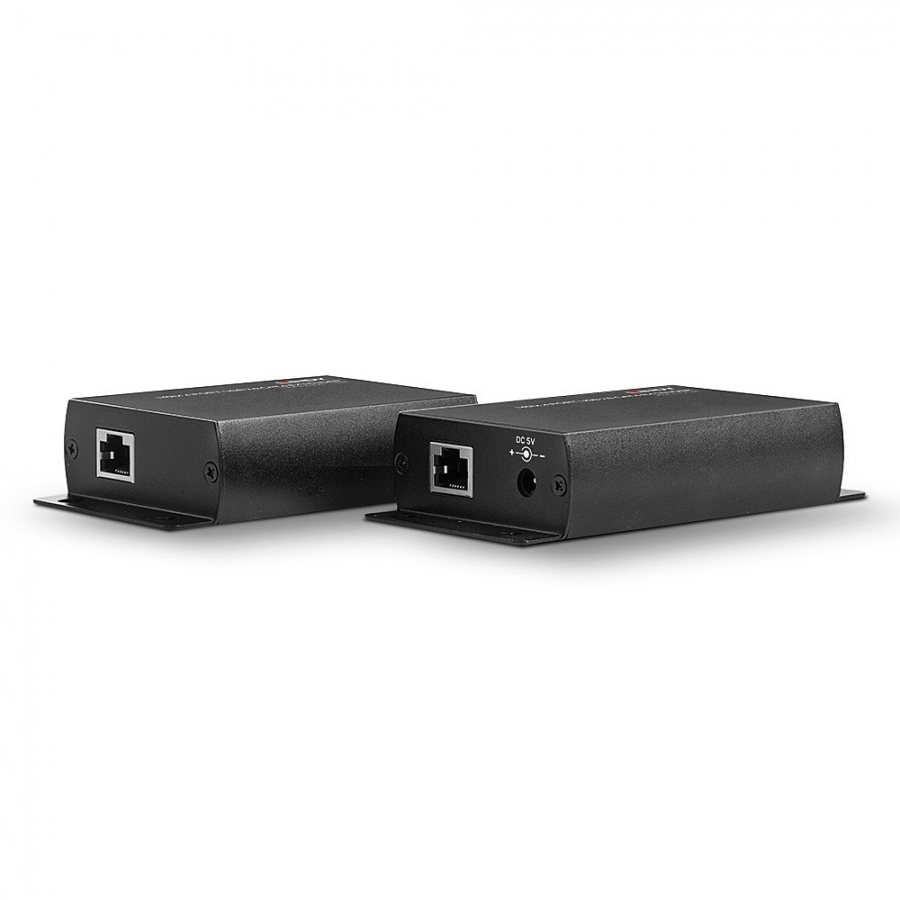

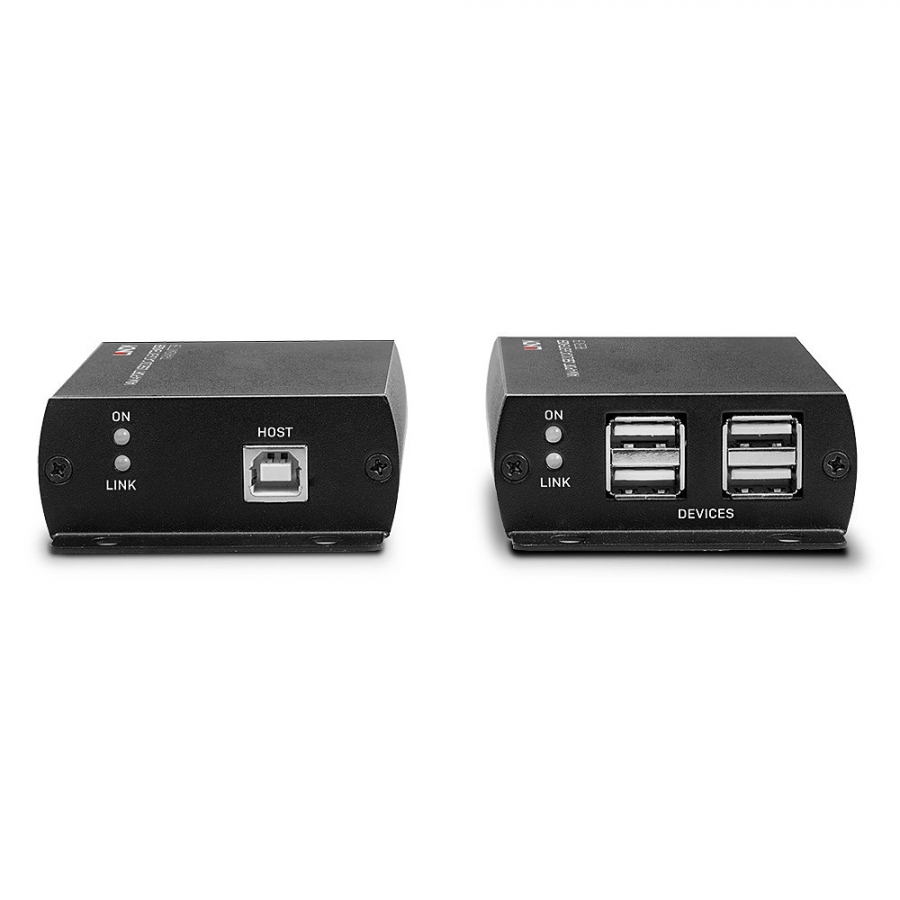

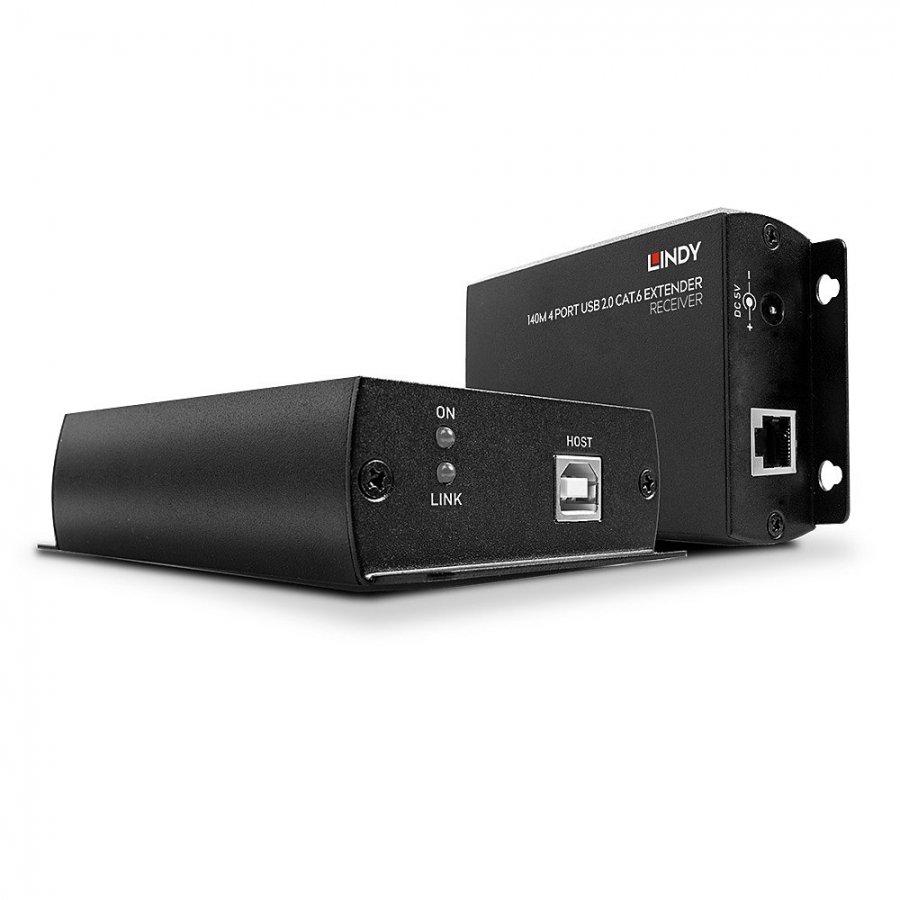

Extends the distance of 4 USB 2.0 peripherals by up to 140m Connect devices using standard Cat.6 UTP or higher network cables (not included) Supports USB 2.0 High Speed transfer rates up to 480Mbps Robust aluminium housing with mounting points 2 year warrantyThe Lindy USB 2.0 Cat.6 Extender extends the distance between four USB peripheral devices and a PC over distances up to 140m using a single Cat.6 UTP or higher network cable. Cat.5e UTP/STP cable can be used in lengths up to a maximum of 120m. For best performance and compatibility, we recommend the use of solid core patched cables.This Extender is a two-part hardware solution comprising of a transmitter that connects directly to your computer and a receiver that connects to the USB device.With a robust aluminium housing and mounting points, it is the ideal solution for providing remote access to printers, scanners, web cams* and external HDD & flash drive storage. The Extender is also perfect for digital signage applications, home network integration, industrial control, security, USB device sharing, and KVM extension. The included power supply for the receiver unit ensures secure and uninterrupted power to all devices.*Tested with Logitech C310, Logitech C920e, V-Gear Talkcam LIVE 09-VTL480, I-Family IF-008BFor the latest firmware fixing compatibility issues please contact our support team.Please note: Through use of the Signal Repeater No. 42709 distances can be doubled up to 280m.
|
| Type | Transmitter & receiver | | Connectivity technology | Wired | | Maximum transfer distance | 140 m | | Cable types supported | Cat5e, Cat6 | | Product colour | Black | | Material | Aluminium | | USB 2.0 ports quantity | 5 | | USB data transfer rates | 480 Mbit/s | | LED indicators | Y | | Certification | CE, FCC, RoHS & REACH, CP65 | | RJ-45 ports quantity (transmitter) | 1 | | RJ-45 ports quantity (receiver) | 1 | | AC adapter output voltage | 5 V | | AC adapter output current | 2.6 A | | Operating temperature (T-T) | 0 - 55 °C | | Storage temperature (T-T) | -20 - 85 °C | | Operating relative humidity (H-H) | 0 - 95% | | Transmitter width | 12 cm | | Transmitter depth | 6.7 cm | | Transmitter height | 2.7 cm | | Transmitter weight | 190 g | | Receiver width | 13 cm | | Receiver depth | 6.7 cm | | Receiver height | 2.7 cm | | Receiver weight | 210 g | | Package width | 240 mm | | Package depth | 150 mm | | Package height | 55 mm | | Package weight | 1.32 kg | | AC adapter included | Y | | Cables included | USB Type-A to USB Type-B | | Manual | Y | | Included power plug types | EU, UK, US | | Harmonized System (HS) code | 84733080 |
|
