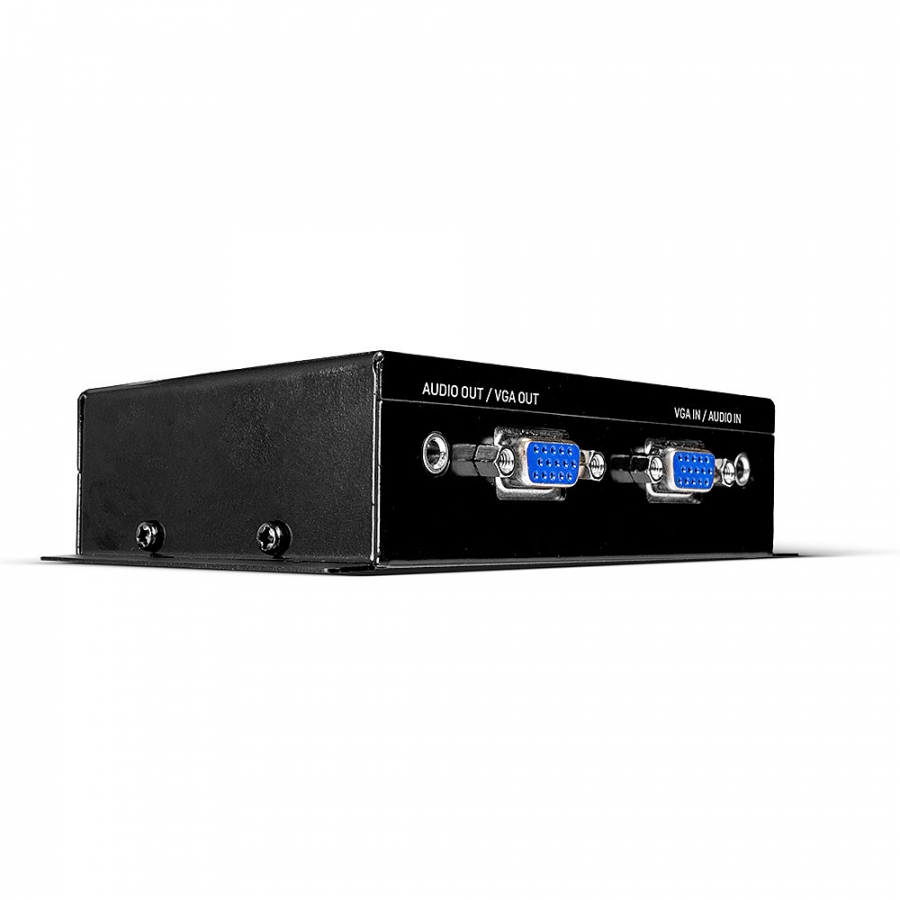

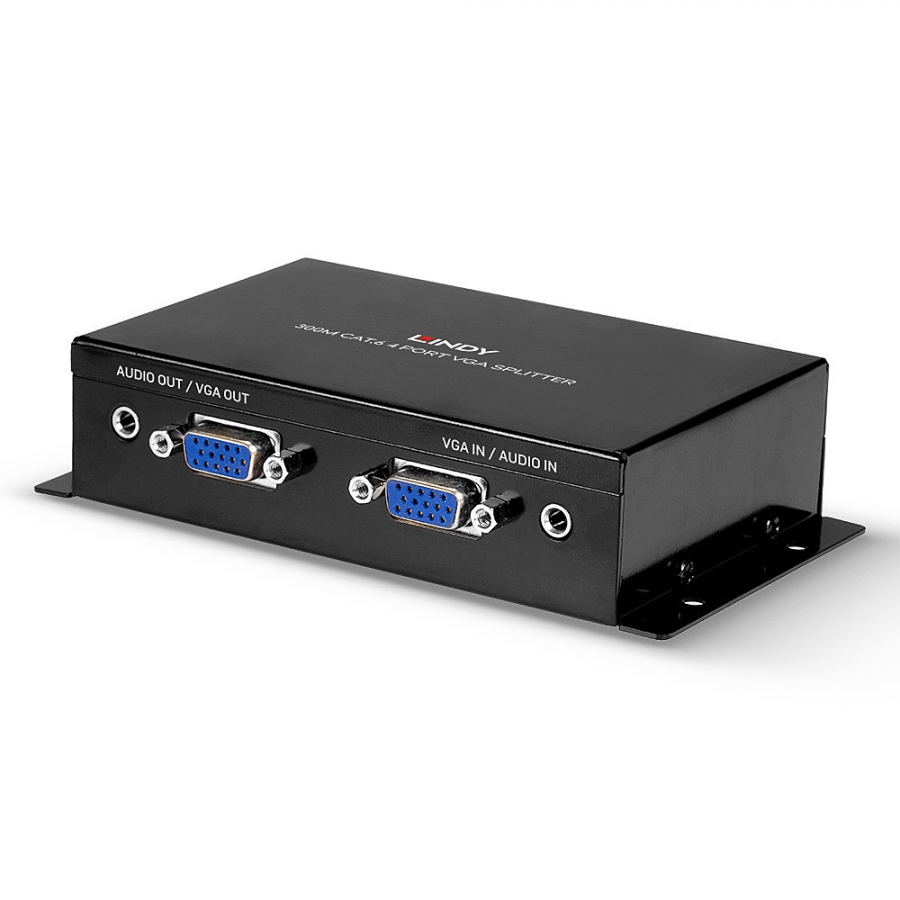

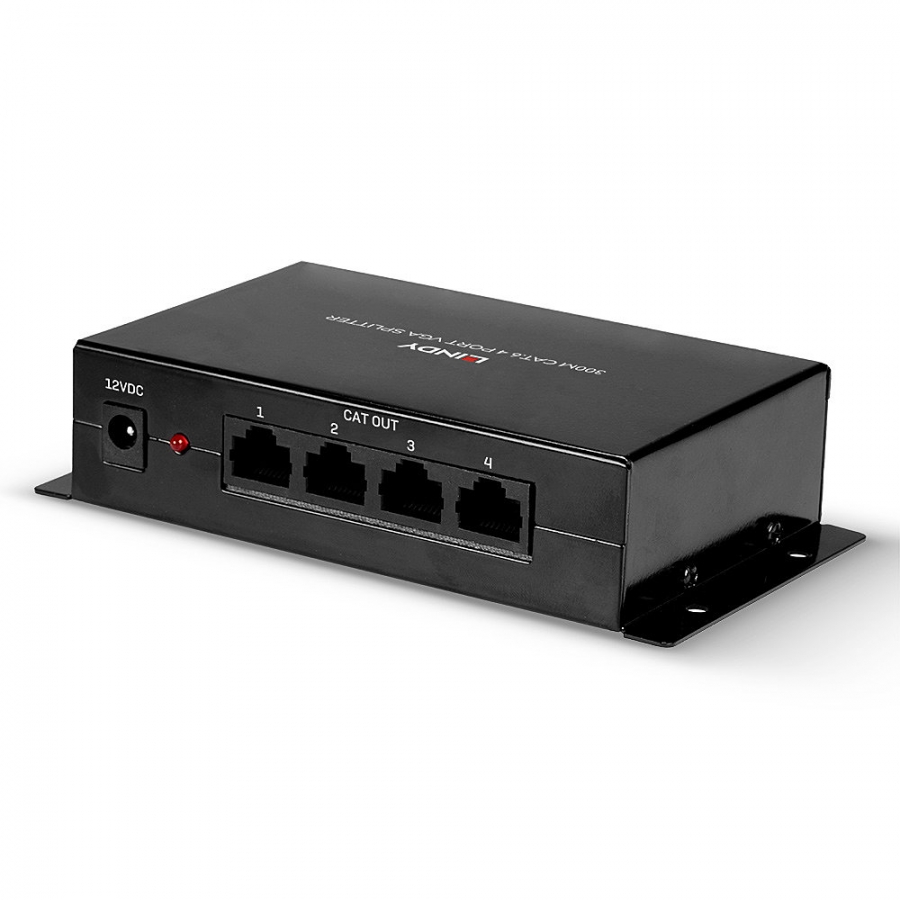

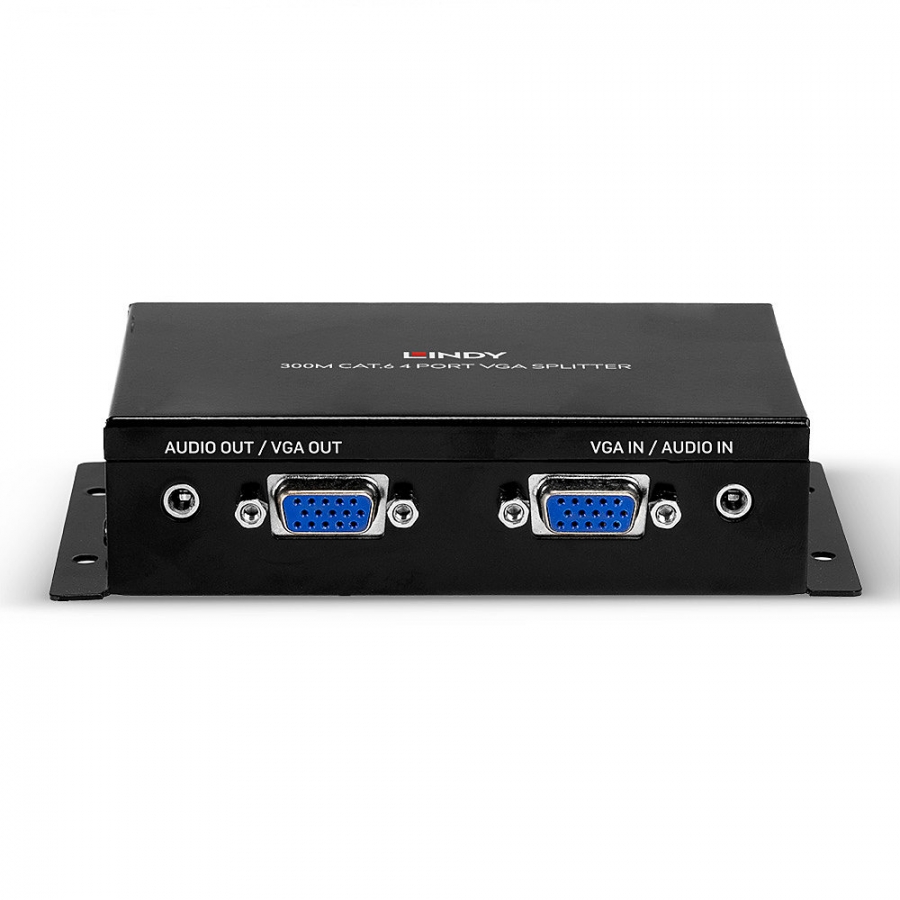

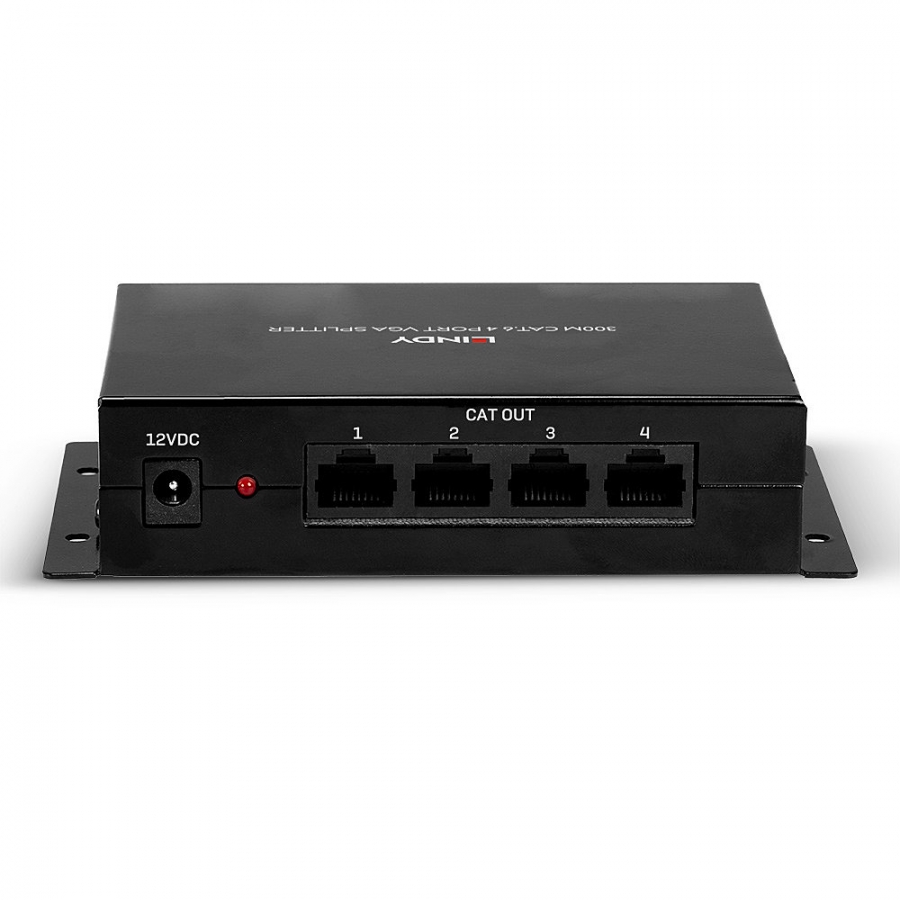

LINDY 300m Cat.6 4Port VGA Extender

Reference 35403

Condition: New

More info

Extends 4 x VGA signals simultaneously up to 300m with standard network cables Combine with the compatible receiver (35404) to create a 4-zone extension solution Supports resolutions up to 1920x1080, with dual mono audio embedding Local VGA loop-out connection with dual mono audio extraction 2 year warrantyVGA splitter extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.The Lindy 300m Cat.6 4 Port VGA Splitter is a high-quality solution for extending 4 separate analogue VGA signals over long distances using standard network cables when combined with the compatible receiver unit (35404). Supporting resolutions up to 1920x1080, this extender splitter provides high quality video for up to 4 separate distribution zones, such as classrooms or in security facilities. A 3.5mm female port ensures source devices or embedded audio can be added within the connection.The VGA loop-out allows for the connection of a local display, great for monitoring and control of the setup. Dual mono audio extraction also provides the possibility of connecting speakers to the local setup.The transmitter has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.

Type	AV transmitter
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	300 m
Chipset	EL4543IUZ
Supported graphics resolutions	800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)
Bandwidth	350 MHz
Material	Metal
Product colour	Black
Certification	CE, FCC, RoHS, REACH
Connectivity technology	Wired
RJ-45 output ports	4
VGA (D-Sub) input ports	1
VGA (D-Sub) output ports	1
Audio input	1
Audio output	1
DC-in jack	Y
Operating voltage	12 V
Input current	1.2 A
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Width	135.4 mm
Depth	73 mm
Height	31 mm
Weight	484 g
Quantity per pack	1 pc(s)
Package width	177 mm
Package depth	75 mm
Package height	110 mm
Package weight	547 g
