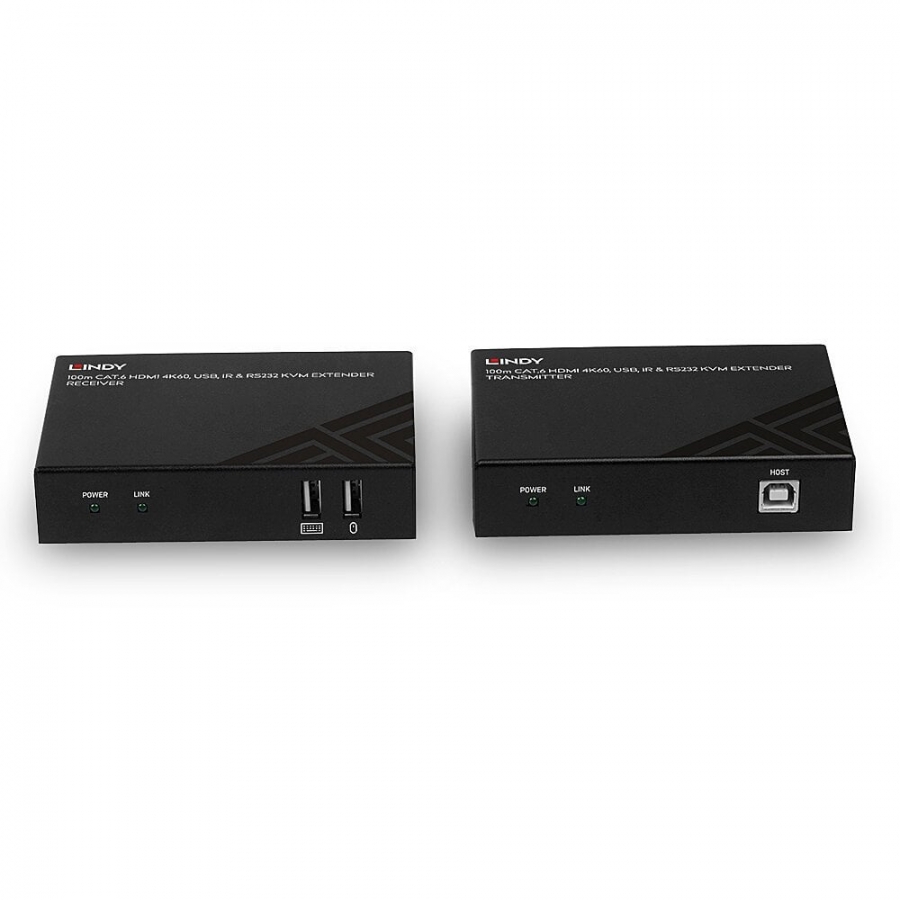

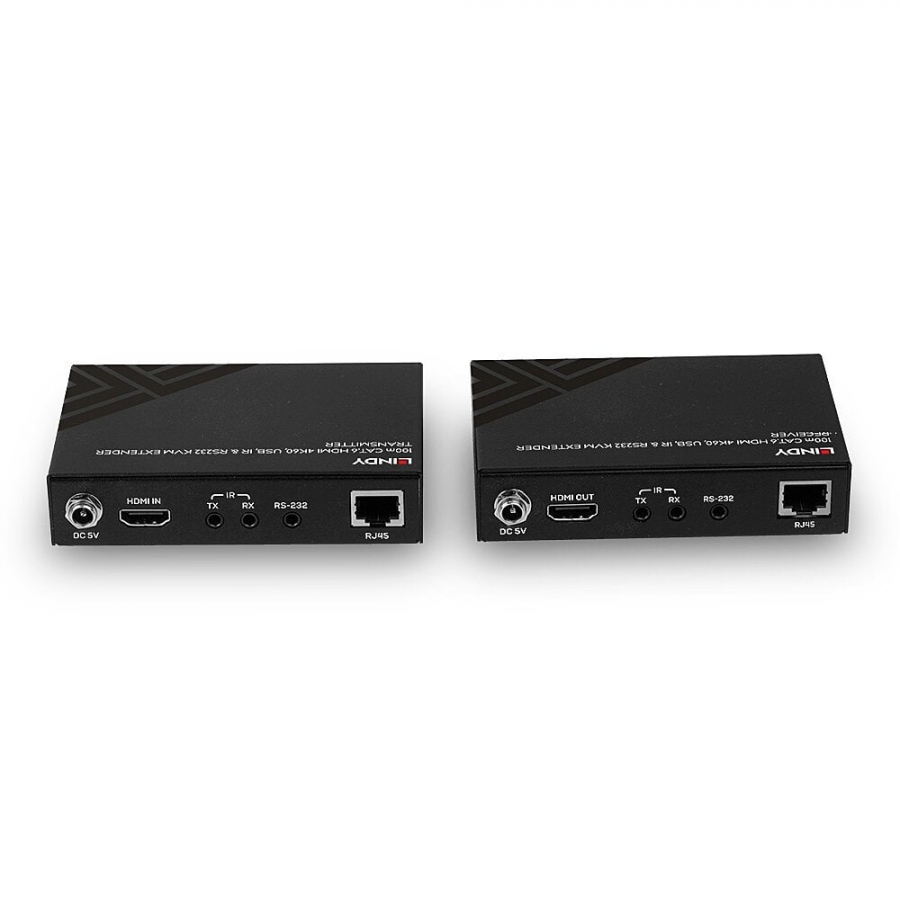

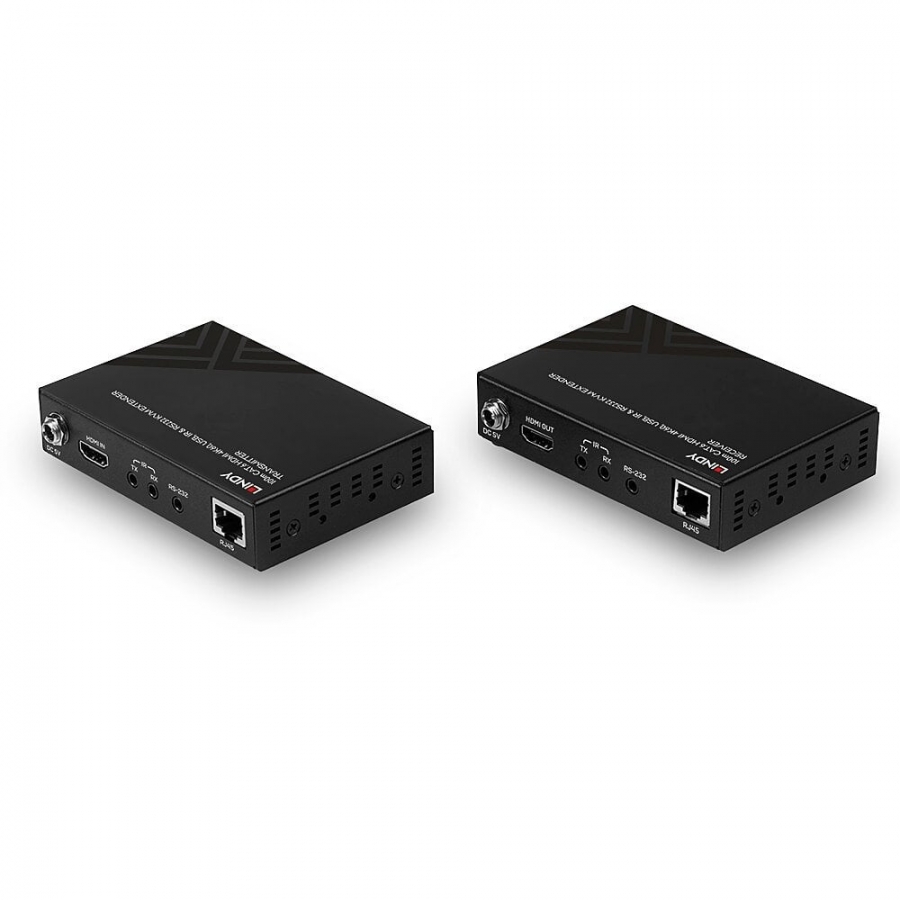

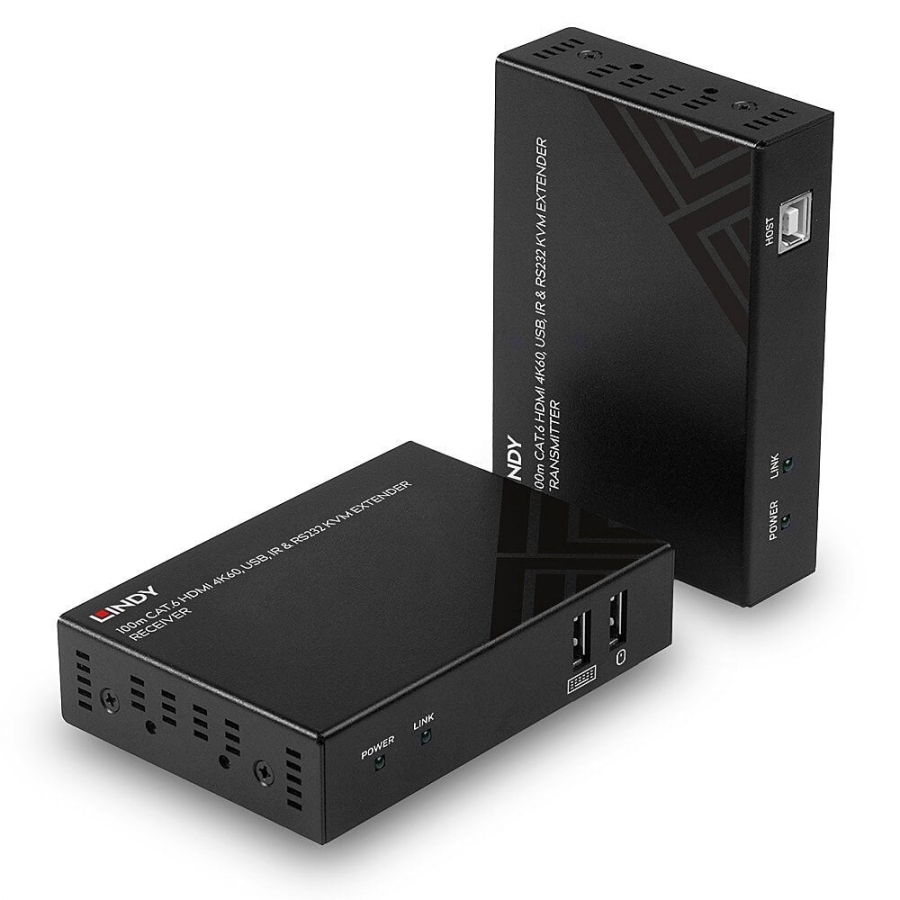

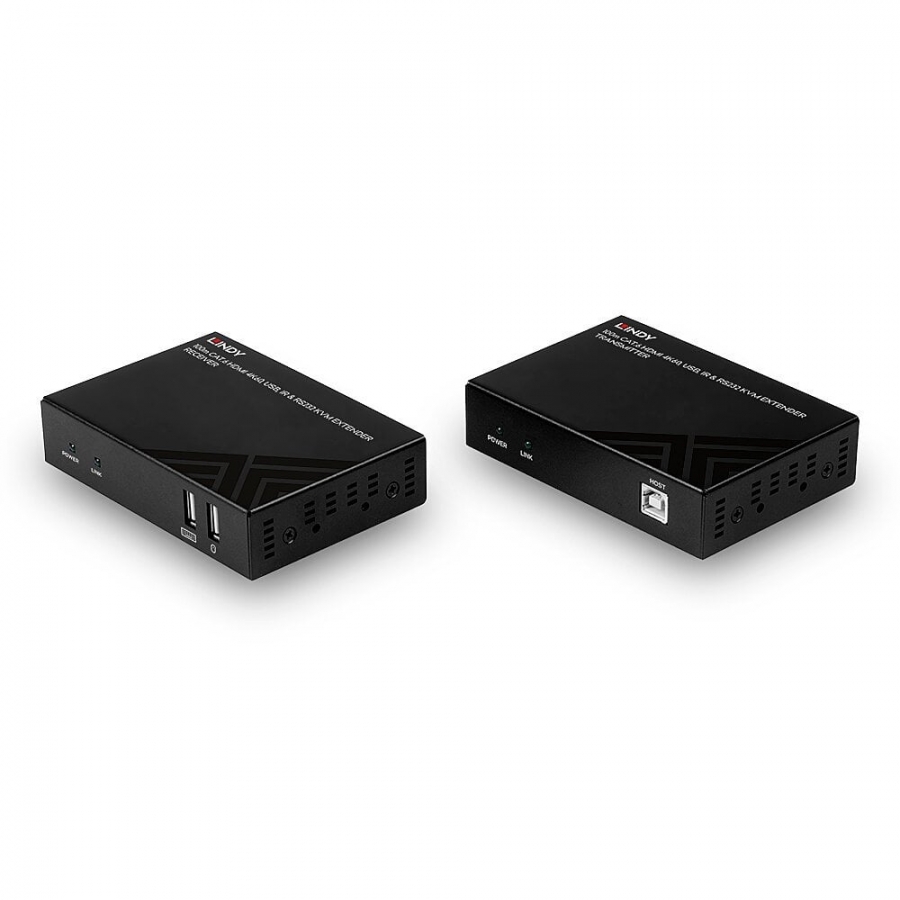

LINDY 100m Cat.6 HDMI 4K60, USB & RS232 KVM Extender

Reference 39382

Condition: New

More info

The Lindy Cat.6 HDMI 4K60, USB, IR & RS232 KVM Extender allow users to control a source device such as a PC from a single keyboard, mouse and display up to 100m using a Cat.6 RJ45 cable. Support for HDMI 18G signals allows for the transmission of highly detailed 3840x2160@60Hz resolutions, perfect for detailed content in control rooms, medical setups or security installations.Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit; the transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver.Featuring bi-directional IR ports at both sides of the setup, the source equipment can be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device. RS-232 connections also allow for integration into pre-installed control systems. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.This extender provides a simple plug & play installation with no additional drivers required, great for both professional and first time users.Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point-to-point connection.

Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Transmitter video port type	HDMI
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
AC adapter output voltage	5 V
AC adapter output current	3 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 55 °C
Operating relative humidity (H-H)	5 - 85%
Transmitter width	11.1 cm
Transmitter depth	7.5 cm
Transmitter height	2.5 cm
Transmitter weight	1.16 kg
Receiver width	11.1 cm
Receiver depth	7.5 cm
Receiver height	2.5 cm
Receiver weight	1.16 kg
Package width	248 mm
Package depth	195 mm
Package height	95 mm
Package weight	1.4 kg
Cables included	AC, IR, RS-232
Manual	Y
Mounting bracket(s) included	Y
