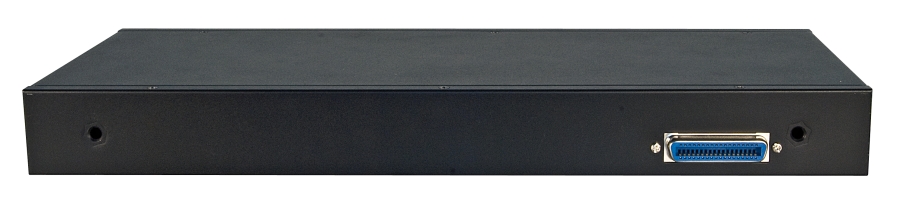

Lindy 32 Port VGA, USB & PS/2 Cat-32 Combo KVM Switch for LCD Console

Specifications:

• AV Interface: VGA
• Console Interfaces: USB
• Interface Standard: VGA, USB 2.0
• Maximum Resolution: VGA: 1920x1200@30Hz
• HDCP Support: -
• Supported Audio:
• Separate Audio Ports:
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 32
• Cascadable: Yes
• Switching Method: OSD, Hotkey (configurable)
• 19" Rack Mountable: Yes (1U - Mounted in the backside of a LCD Terminal Unit)

Connectors:

• Console Interfaces: Centronics CN36 (Female) only for Lindy LCD Terminal
• PC/Server Interfaces: 32 x RJ45 (Female)
• Other Interfaces: 1 x DaisyChain Port (1 x VGA Female)
• Power: 5.5/2.1mm DC socket

Physical properties:

• Dimensions (approx.) WxDxH: 430x180x44mm (16.93x7.09x1.73in)
• Housing Material: Metal
• Net Weight: 1.85kg (4.08lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 9VDC 2A
• Colour: Black

Miscellaneous:

• Packaging Type: Carton box
• Packaging Dimensions: 530x210x55mm (20.87x8.27x4.17in)
• Gross Weight: 2.1kg (4.63lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package content:

• KVM Switch
• 2 x brackets with screws
• Quick Start Guide

Purchasing information:

• No.: 39635
• EAN: 4002888396356
