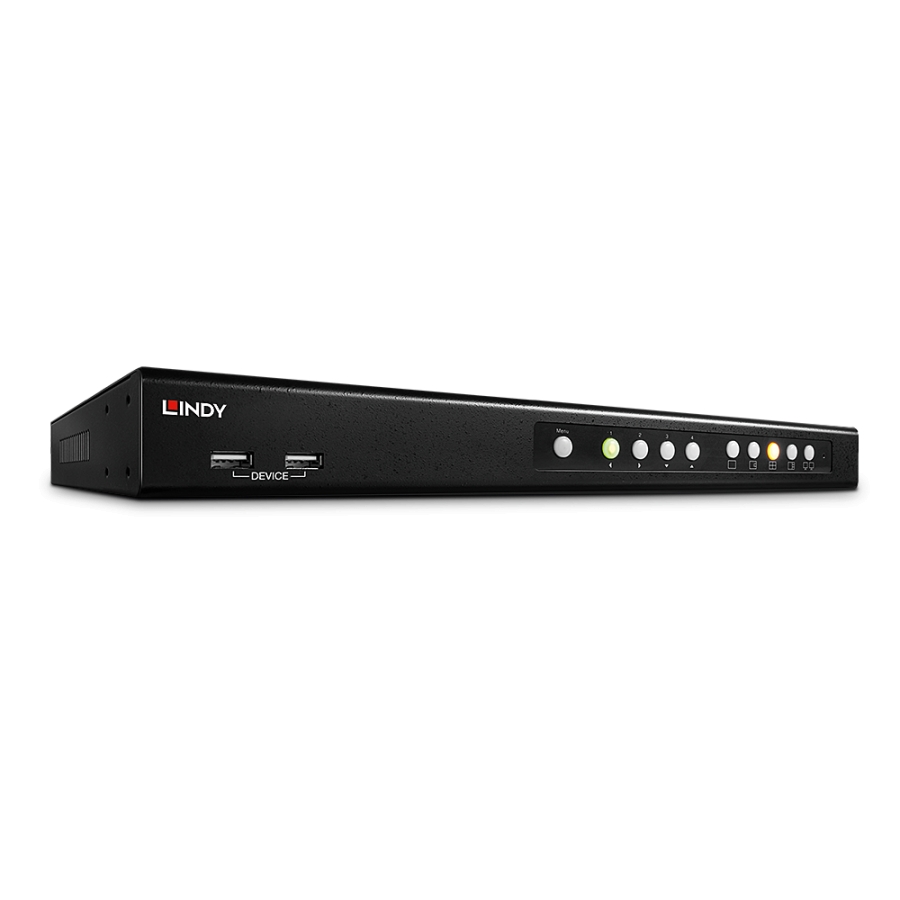

Lindy 4 Port DVI-I Single Link, USB 2.0 & Audio Quad View KVM Switch

Specifications

• AV Interface: DVI-I
• Console Interfaces: USB
• Interface Standard: DVI-I Single Link, USB 1.1
• Maximum Resolution: 1920x1200@60Hz
• HDCP Support: -
• Supported Audio: Analogue Stereo
• Separate Audio Ports: 1 x 3.5mm (Female)
• Serial Interface: Yes (Adapter Cable included)
• Console Number: 1
• Max Number PC/Server: 4
• Cascadable: Yes
• Switching Method: Push Buttons, Hotkey Switching, OSD, serial commands
• 19" Rack Mountable: Yes (1U, rack mount brackets included)
• Special Features: USB 2.0 Hub, Quad View modes, Active LED Indicators

Connectors

• Console Interfaces: 2 x DVI-D (Female), USB Type A HID (Female), 1 x 3.5mm (Female)
• PC/Server Interfaces: 4 x DVI-D (Female), USB 2.0 Type B (Female), 1 x 3.5mm (Female)
• Other Interfaces: 2 x shared USB 2.0 (Female) (front panel)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxDxH: 440x200x45mm (17.32x7.87x1.77in)
• Housing Material: Metal
• Net Weight: 2.7kg (5.95lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 12VDC 5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 500x420x120mm (19.69x16.54x4.72in)
• Gross Weight: 6.5kg (14.33lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• KVM Switch
• 2 x 19" Rack Mount Bracket With Screws
• PSU with IEC cable
• Lindy Manual

Purchasing Information

• No.: 32327
• EAN: 4002888323277
