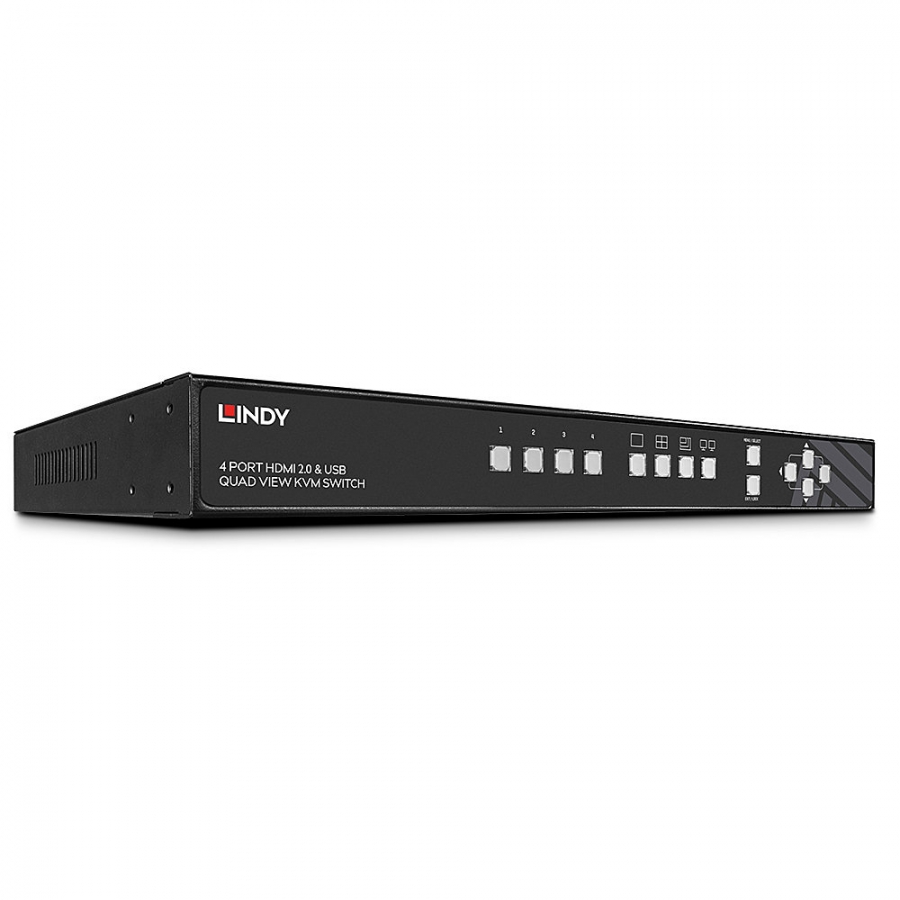

Lindy 4 Port HDMI 4K Quad View KVM Switch Pro

Lindy

LIN32329

New

Specifications

  • AV Interface: HDMI
  • Console Interfaces: USB
  • Interface Standard: HDMI 2.0, USB 1.1
  • Maximum Resolution:
    • Input: 1920x1080@60Hz
    • Output: 4K60Hz
  • HDCP Support: HDCP 1.4
  • Supported Audio: Stereo LPCM and Multichannel Dolby Digital, DTS, Dolby TrueHD, DTS-HD (HDMI Embedded)
  • Separate Audio Ports: -
  • Serial Interface: Yes
  • Console Number: 1
  • Max Number PC/Server: 4
  • Cascadable: Yes
  • Switching Method: Port Buttons, Hotkey Switching (Hotkey Configurable), Serial Interface
  • 19" Rack Mountable: Yes (1U - Rack Mount Brackets Included)
  • Special Features: -



Connectors

  • Console Interfaces: 1 x HDMI (Female), 2 x USB Type A HID (Female)
  • PC/Server Interfaces: 4 x HDMI (Female), 4 x USB 1.1 Type B (Female)
  • Other Interfaces: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 438x200x44mm (17.32x7.87x1.77in)
  • Housing Material: Metal
  • Net Weight: 2.7kg (5.95lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0% - 90% RH (non-condensing)
  • Power Requirements: 12VDC 5A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 570x245x105mm (22.44x9.65x4.13in)
  • Gross Weight: 3.64kg (8.02lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • KVM Switch
  • 2 x 19" Rack Mount Bracket With Screws
  • IEC Power Adapter Including IEC Mains Cable
  • LINDY Manual



Purchasing Information

  • No.: 32329
  • EAN: 4002888323291
