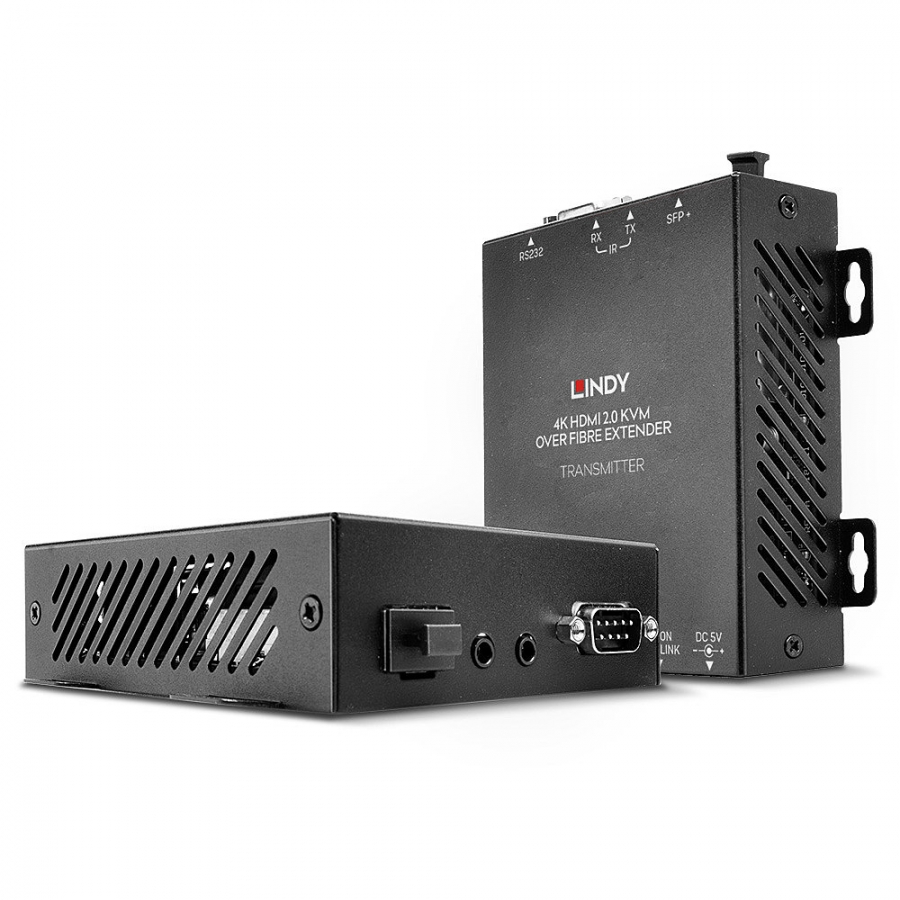

Lindy 300m Fibre Optic HDMI 18G & USB KVM Extender

Specifications

• AV Interface: HDMI
• Console Interface: USB
• Interfaces Standard: HDMI 2.0, USB 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 300m (984.24ft)
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: Digital audio pass-through
• Separate Audio Ports: -
• Transmission Protocol: -
• Transmission Medium: 1 x Duplex LC (50/125µm)
• Laser Class (only for Fibre): Class 1
• Wavelength (only for Fibre): 850nm
• Special Features: Bi-directional IR & RS-232 Pass-through

Connectors

• Transmitter KVM Interfaces: HDMI Type A (Female), USB Type B (Female)
• Transmitter Extension Port: SFP+ Multi-Mode Duplex
• Receiver Console Interface: 2 x USB Type A (Female), HDMI Type A (Female)
• Receiver Extension Port: SFP+ Multi-Mode Duplex
• Bi-directional Ports: DB9 (Female), 3.5mm IR (Female)
• Other Interfaces: -
• Power : 5.5/2.5mm

Physical Properties

• Dimensions (approx.) WxDxH: 110x110x30mm (4.33x4.33x1.18in)
• Housing Material: Metal
• Net Weight: 0.27kg (0.6lb)
• Operating Temperature : -10°C - 45°C (14°F - 113°F)
• Storage Temperature: -30°C - 70°C (-22°F - 158°F)
• Humidity: 0 - 95% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 222x176x80mm (8.74x6.93x3.15in)
• Gross Weight: 1.175kg (2.59lb)
• Warranty (Years): 2
• Certification: CE, FCC, RoHS & REACH

Package Content

• Transmitter Unit
• Receiver Unit
• 2 x SFP+ Fibre Modules
• IR Emitter Cable
• IR Receiver Cable
• 8 x Wall Plugs & 8 x Mounting Screws
• 8 x Rubber Feet
• 2 x 5V/2A Multi-Country Power Supply (UK, EU, US & AUS) Barrel size: 5.5/2.5mm
• Lindy Manual

Purchasing Information

• No.: 39392
• EAN: 4002888393928
