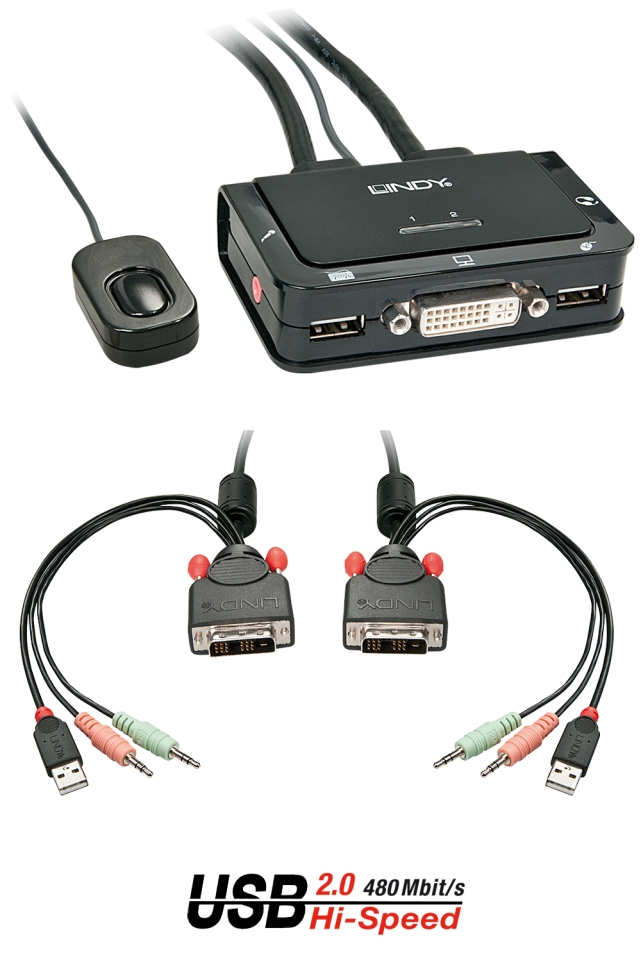

2 Port DVI-D Single Link, USB 2.0 & Audio KVM Switch Compact

Specifications

• AV Interface: DVI-D
• Console Interfaces: USB
• Interface Standard: HDVI-D (Single Link), USB 2.0
• Maximum Resolution: 1920x1200@60Hz
• HDCP Support: 1.4
• Supported Audio: Analog Stereo
• Separate Audio Ports: 2 x 3.5mm (Female)
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 2
• Cascadable: -
• Switching Method: Port Buttons, Hotkey Switching & Software
• 19" Rack Mountable: -
• Special Features: Supports USB 2.0 Hubs And Device Sharing

Connectors

• Console Interfaces: DVI (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)
• PC/Server Interfaces: 2 x DVI-D (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) Integrated Cables
• Other Interfaces: -
• Power: -

Physical Properties

• Dimensions WxDxH: 85x55x25mm (3.35x2.17x0.98in) Cable lenght 0.9m (2.95ft)
• Housing Material: Plastic
• Net Weight: 0.46kg (1.01lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: Powered by USB
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 160x75x165mm (6.3x2.95x6.5in)
• Gross Weight: 0.6kg (1.32lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• KVM Switch (KVM + Audio Cables Integrated)
• LINDY Manual
• CD with Software

Purchasing Information

• No.: 42341
• EAN: 4002888423410
