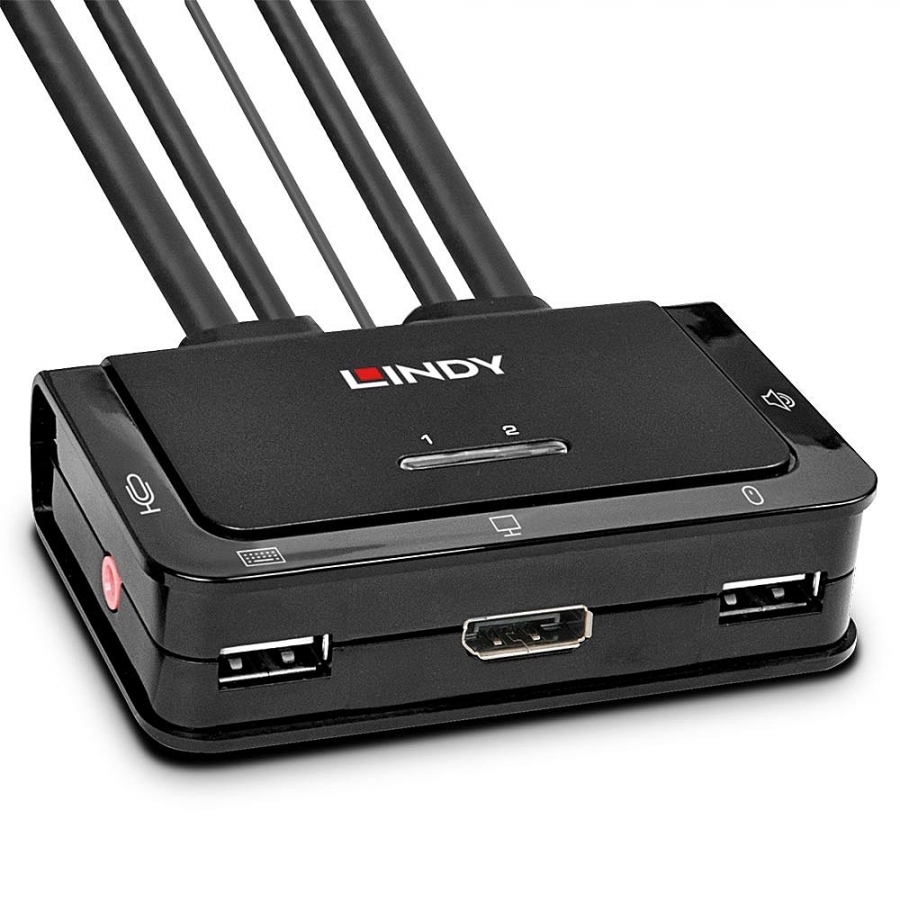

2 Port DisplayPort 1.2, USB 2.0 & Audio Cable KVM Switch

Specifications

• AV Interface: DisplayPort
• Console Interfaces: USB
• Interface Standard: DisplayPort 1.2, USB 2.0
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• HDCP Support: HDCP 1.4
• Supported Audio: Analogue Stereo
• Separate Audio Ports: 2 x 3.5mm (Female)
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 2
• Cascadable: -
• Switching Method: Push Button, Hotkey Switching & Software
• 19" Rack Mountable: -
• Special Features: Supports USB 2.0 Hubs And Device Sharing, Active LED Indicators

Connectors

• Console Interfaces: DisplayPort (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)
• PC/Server Interfaces: 2 x DisplayPort (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
• Other Interfaces: -
• Power: -

Physical Properties

• Dimensions (approx.) WxDxH: 97x25x82.18mm (3.82x0.98x3.24in)
• Housing Material: Plastic
• Net Weight: 0.433kg (0.95lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 5V
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 160x60x250mm (6.3x2.36x9.84in)
• Gross Weight: 0.514kg (1.13lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• DisplayPort KVM switch
• Lindy Manual

Purchasing Information

• No.: 42344
• EAN: 4002888423441
