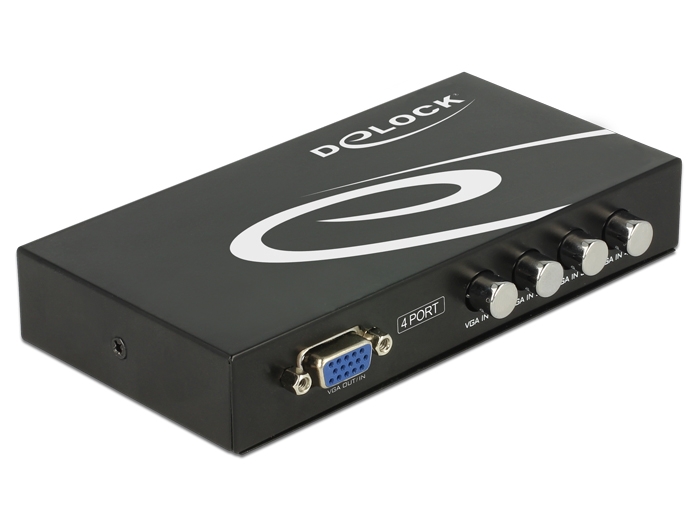

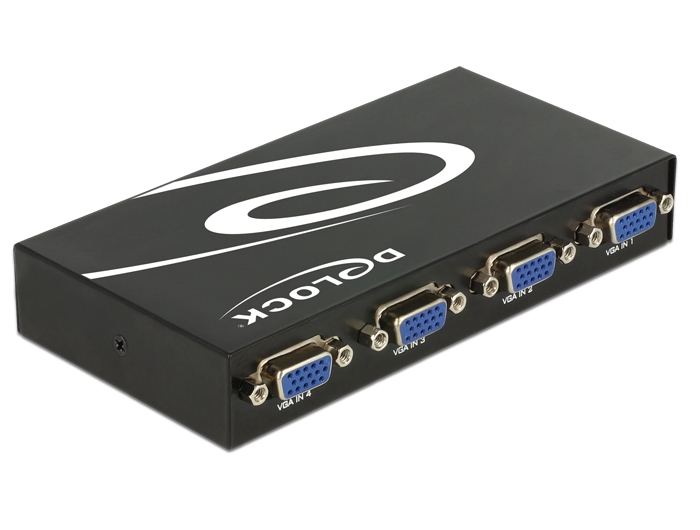

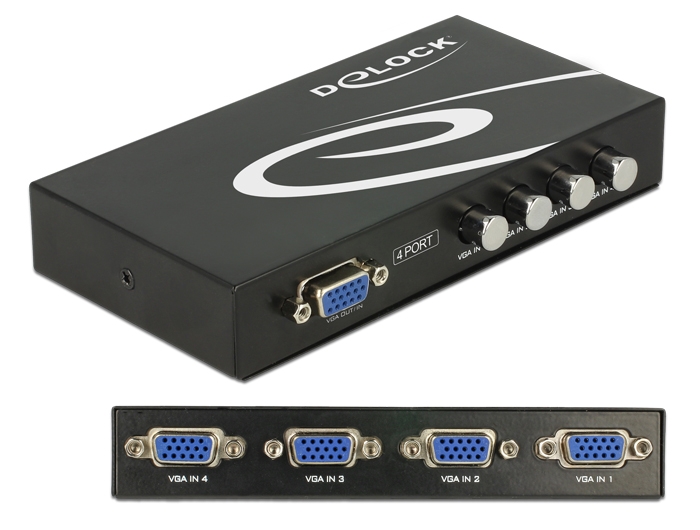

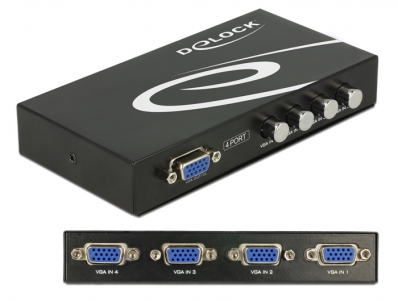

Delock Switch VGA 4 port manual bidirectional

Delock Switch VGA 4 port manual bidirectional

DELOCK

87635

New

This VGA switch by Delock is a manually bidirectional switch for connecting different devices with VGA port. This switch offers two different applications.
  1. You can connect up to four computers with VGA port to one monitor, TV or beamer etc. with VGA input port. By using the button you can select which device should display the signal.
  2. You can connect one computer with VGA port to up to four displays and select the monitor which should display the signal by using the button. (Simultaneous output to multiple screens is not possible)
System requirements:
• PC or notebook with a free VGA port
• VGA connection cables
Specification:
• Connector:
    Function 1
        Input: 4 x VGA 15 pin female
        Output: 1 x VGA 15 pin female
    Function 2
        Input: 1 x VGA 15 pin female
        Output: 4 x VGA 15 pin female
• 4 mechanical buttons
• Resolution: max. 1920 x 1440
• Metal housing
• No external power supply needed
• Dimensions (LxWxH): ca. 142 x 72 x 23 mm
• Colour: black
Package content:
• Switch bidirectional
• User manual
Data sheet:
http://www.delock.de/produkt/87635/pdf.html?sprache=en
