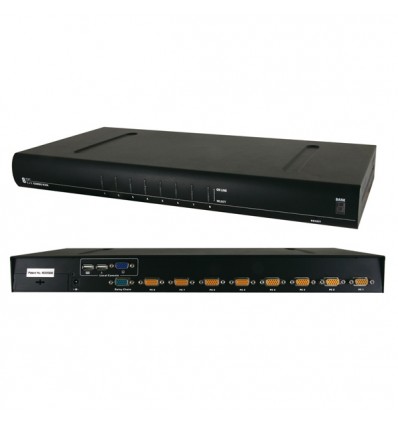

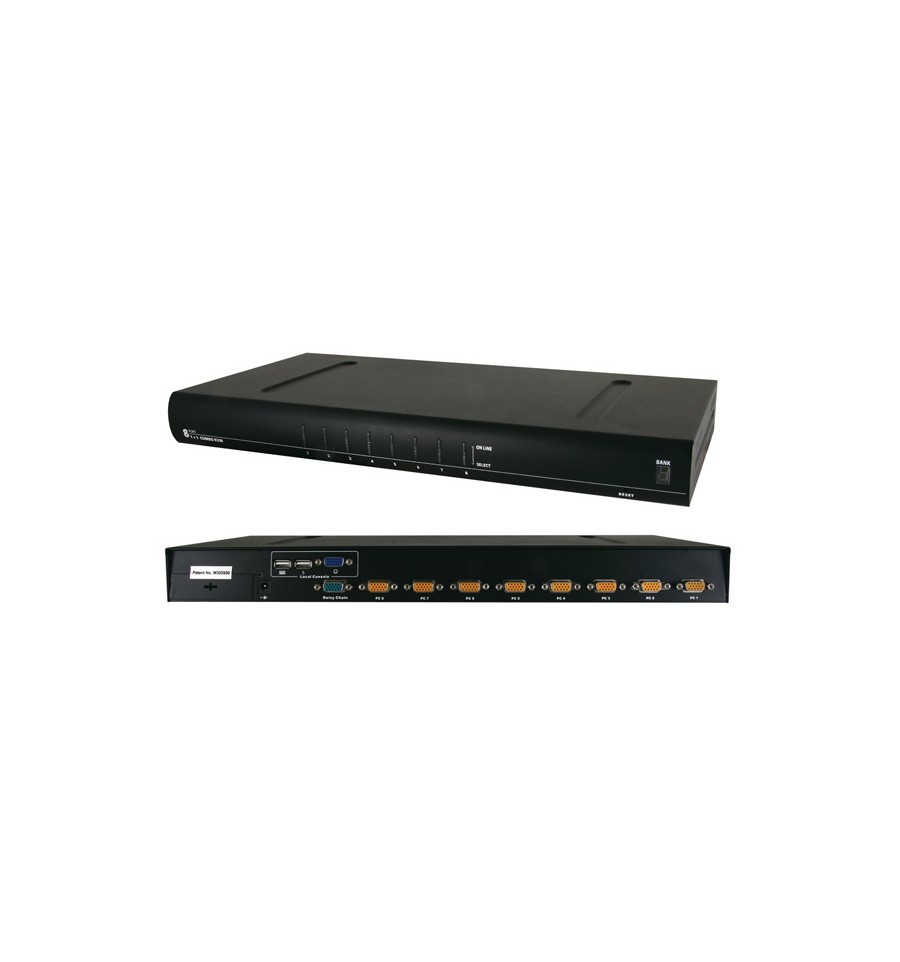

- Automatic KVM Switch

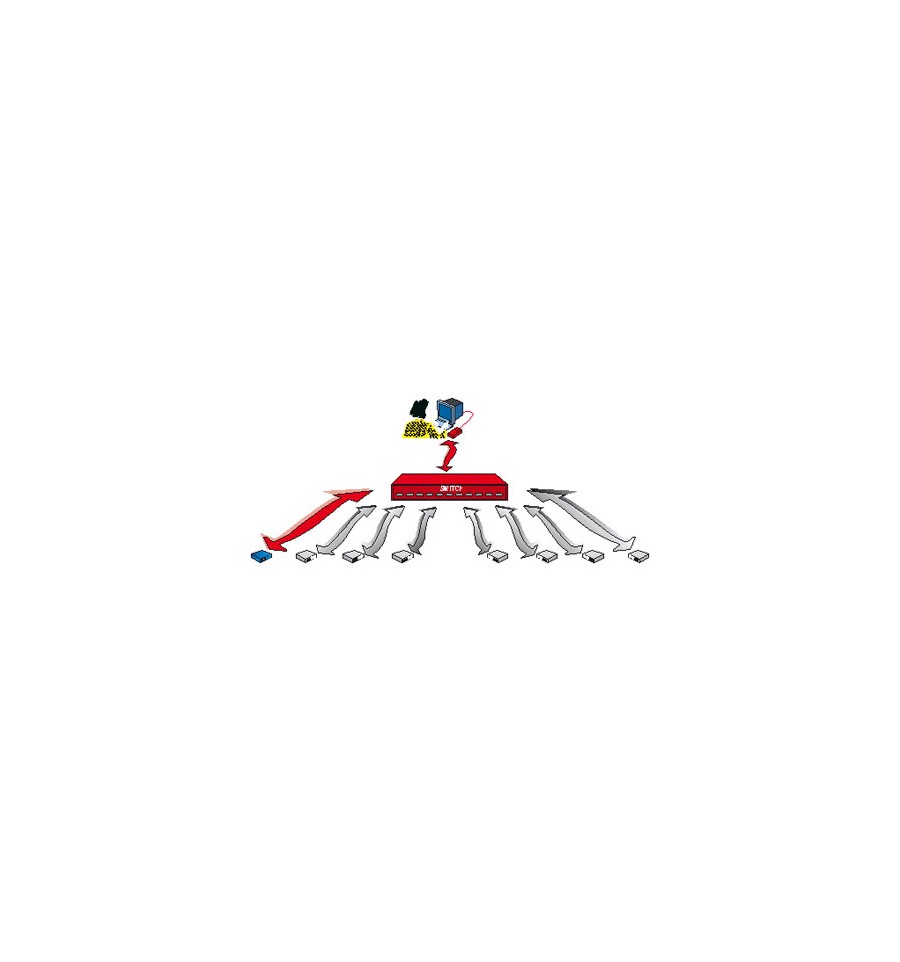

- Up to 8 PCs can be handled with one keyboard, one mouse and one monitor
- The switch is cascadable, up to 64 PCs can be handled with one keyboard, mouse and one monitor
- The switching can be done on several ways:
- Manually by buttons on front side of the switch...
- Automatic KVM Switch
- Up to 8 PCs can be handled with one keyboard, one mouse and one monitor
- The switch is cascadable, up to 64 PCs can be handled with one keyboard, mouse and one monitor
- The switching can be done on several ways:
- Manually by buttons on front side of the switchbox
- Hot key (keyboard combination)
- Through OSD (On Screen Display)
- Max. resolution (nominal): 1280 x 1024 (local unit); 1024 x 786 (remote unit with optional IP module)
- Hot-swappable function
- LEDs for channel display
- 19"-rack mountable
- Supports an optional remote console over VALUE IP Module 14.99.3030
- Remark: For connecting PCs special cables are needed that have to be ordered separately (3 m length, USB: 11.99.5501; 3 m length, PS/2: 11.99.5502)
- Contents: KVM switch, power supply, 19" brackets, manual
| 19" compatible | Yes, optional |
| Analogue Console: Monitor connection | 1x HD 15pol. BU |
| Cascadable | Yes |
| Colour (Design profile) | black |
| Content of delivery | Switch, power supply, 19" brackets ,manual |
| Conveyance good | No |
| Hot plug compatible | Yes |
| Integrated console | No |
| Integrated Hub | No |
| Keyboard layout | not applicable |
| Keyboard/mouse emulation | Yes |
| Manufacturer | VALUE |
| Manufacturer Item No. | 14.99.3222 |
| Material (casing) | metal |
| Monitor size of integrated console | not applicable |
| PC: combi connection | 16x SPHD 15pol. ST |
| PC: connection on moulded cables | No |
| Power supply unit required | Yes |
| Print button on device | Yes |
| Product group | KVM switches / PC shares |
| Product type | KVM-Switch |
| Quantity of analogue consoles | 1 |
| Quantity of PCs | 8 |
| Supported PC-Systems | PS/2, USB |
| Switching over Hot Keys | Keyboard |
| Switching over OSD | Yes |
| Switching over Scan Run | Yes |
| Technical particularity | LED display for port status, special cables have to be ordered separately |
| Trackball/Touchpad integrated console | not applicable |
| USB Hub switching separately | not applicable |
