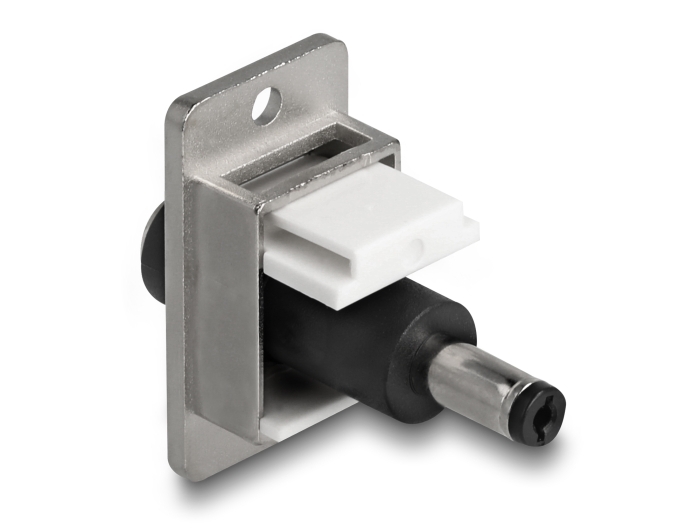

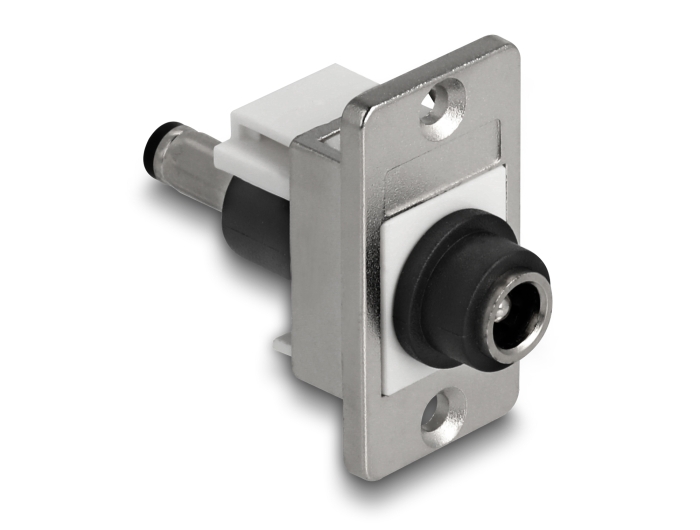

Delock Keystone Module DC 5.5 x 2.5 mm female to DC 5.5 x 2.1 mm male silver / white / black

Reference 90886

Condition: New

More info

This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.

Please Note
To ensure the correct function of the connected device, it must match the specifications for voltage, current and polarity of the power supply.

Specification:
• Connectors:
external: 1 x DC 5.5 x 2.5 mm female
internal: 1 x DC 5.5 x 2.1 mm male
• Gold-plated connectors
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm

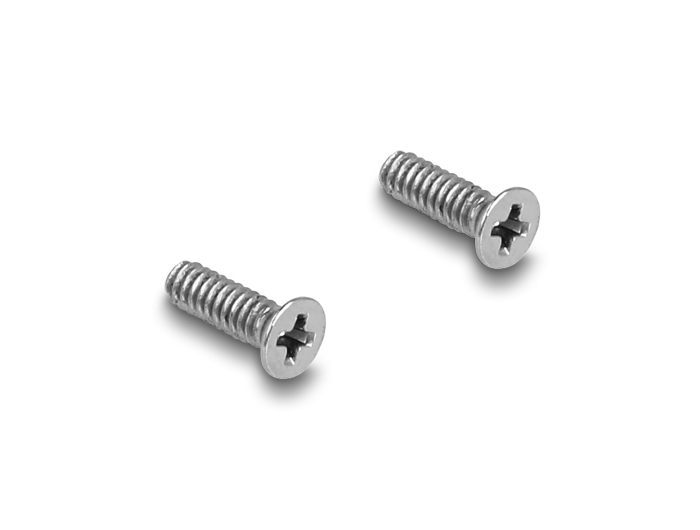

• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: silver / white / black
• Dimensions (LxWxH): 42.3 x 19.0 x 35.5 mm

Package content:
• Panel Mount

Data sheet:
http://www.delock.de/produkt/90886/pdf.html?sprache=en
