Delock D-Type RJ45 built-in connector with LSA connection Cat.6A STP metal

Delock D-Type RJ45 built-in connector with LSA connection Cat.6A STP metal

DELOCK

67064

New

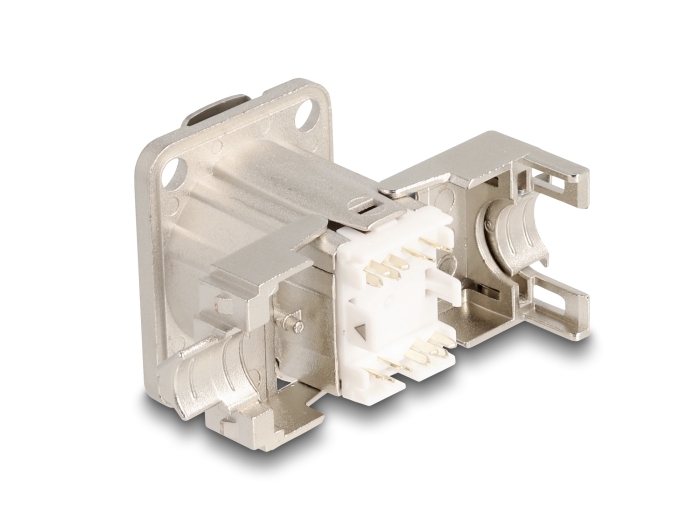

This RJ45 built-in conenctor with D-shaped metal flange by Delock can be used for panel mounting and for installation in a housing.

Special features
• Countersink for cylinder screws
Specification:
• Connectors:
  1 x RJ45 jack
  1 x LSA
• Cat.6A specification
• For D-type ports with 24 x 19 mm

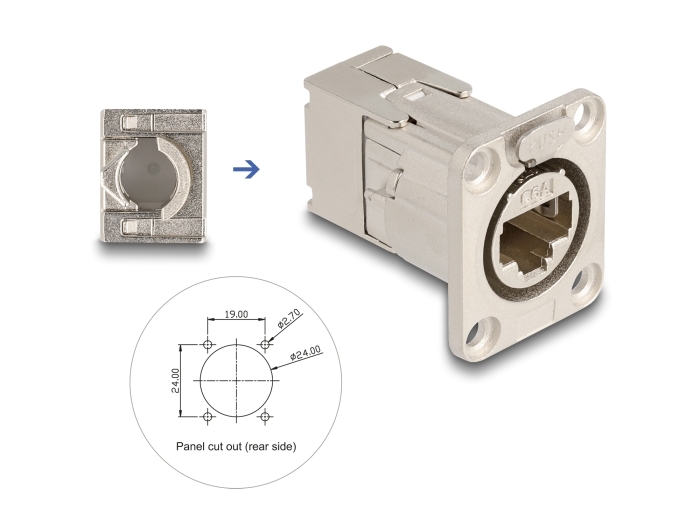

• Panel cut-out (diameter): ca. 24 mm
• Four mounting holes for screw fastening
• For solid or stranded wire (26 - 22 AWG)
• TIA-568A/B pinout
• Shielded (STP)
• Operating temperature: -10 °C ~ 60 °C
• Material: metal
• Colour: silver
• Dimensions (LxWxH): ca. 43.1 x 32.6 x 27.6 mm

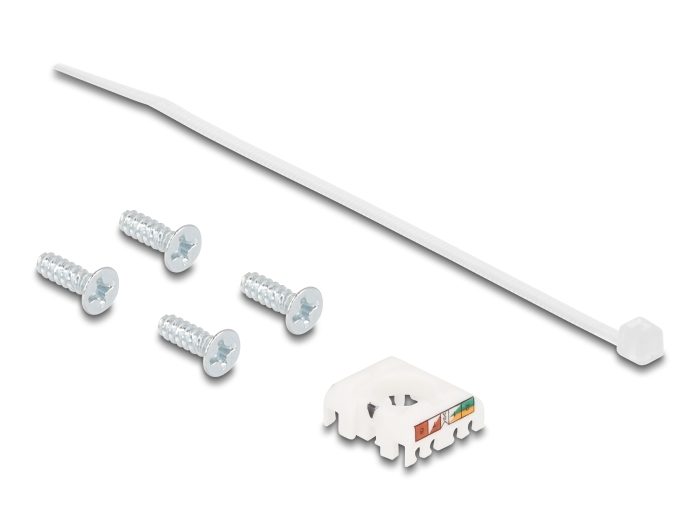

Package content:
• D-Type module
• Cable manager
• Zip-tie
• 4 x screw
• 4 x washer
Data sheet:
http://www.delock.de/produkt/67064/pdf.html?sprache=en
