> >>VALUE Keystone Jack, Cat.8 (Class I), RJ-45, STP, Tool-Free, silver
VALUE Keystone Jack, Cat.8 (Class I), RJ-45, STP, Tool-Free, silver

VALUE Keystone Jack, Cat.8 (Class I), RJ-45, STP, Tool-Free, silver

VALUE

21.99.1807

New

Cat.8 Keystones are ideal for use in 10 Gigabit Ethernet networks.

  • Cat.8 Keystones are ideal for use in Gigabit Ethernet networks
  • Supports data transfer rates up to 10/25/40 Gbit/s with a bandwidth of 2000 MHz

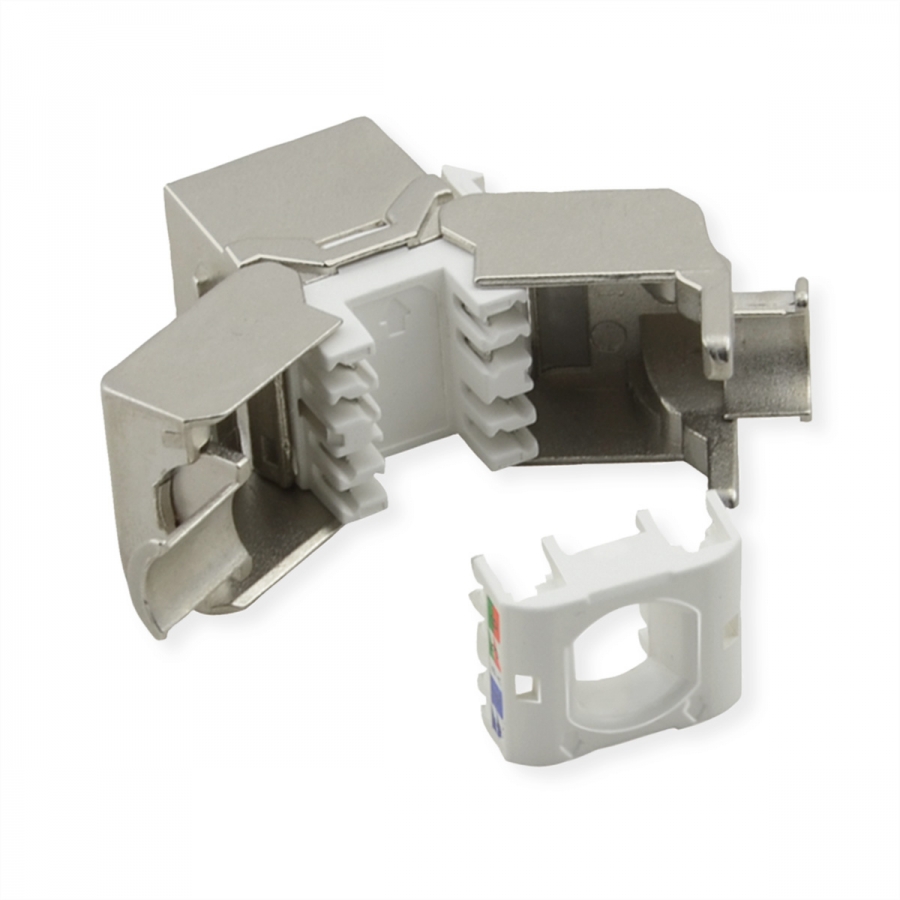

  • Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
  • Cable entrance outer diameter range: 6mm - 8.5mm
  • Solid cable:1/22AWG(0.65MM)-1/26AWG(0.4MM)
  • Stranded cable:22/7-26/7AWG
  • Wire coded scheme: EIA/TIA 568
  • Full shielded with zinc alloy housing

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)



ManufacturerVALUE
Product groupConnection technology TP
Product typeRJ45 Keystone Jack
Coloursilver
Shield typeScreened
Transfer qualityCat8.1 / Class I
AssignmentEIA/TIA 568A & 568B
Connection directionStraight
Operating temperature min.0 °C
Operating temperature max.70 °C

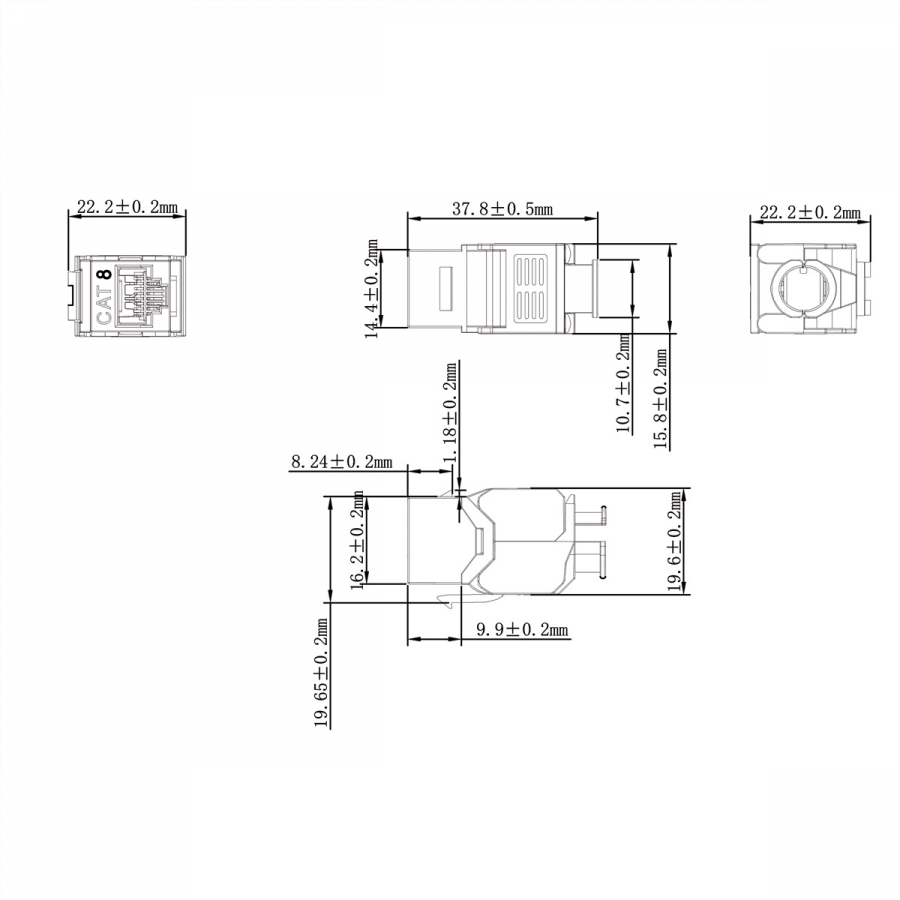

Height22 mm
Width14 mm
Depth38 mm
Weight29 g
Height of packaging (single piece)10 mm
Width of packaging (single piece)30 mm
Depth of packaging (single piece)30 mm
Package weight (single piece)0.002 kg
Current catalog editionC23-New
