Delock Keystone Module RJ45 jack to LSA Cat.6A with LED

Reference 87856

Condition: New

More info

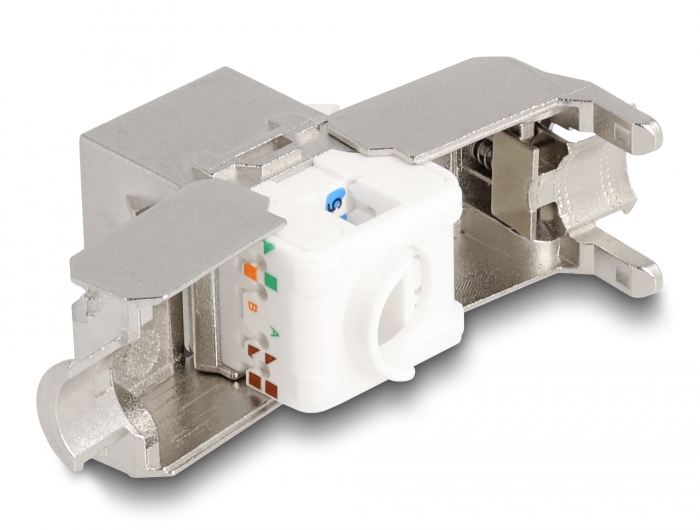

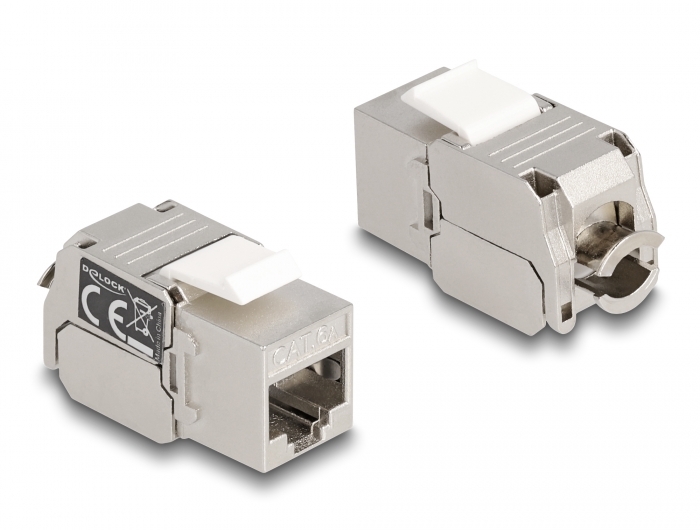

This module by Delock can be used to connect a network cable and is suitable for easy snap-in mounting in various holders, such as keystone patch panels, face plates or surface-mount boxes.

With status LED

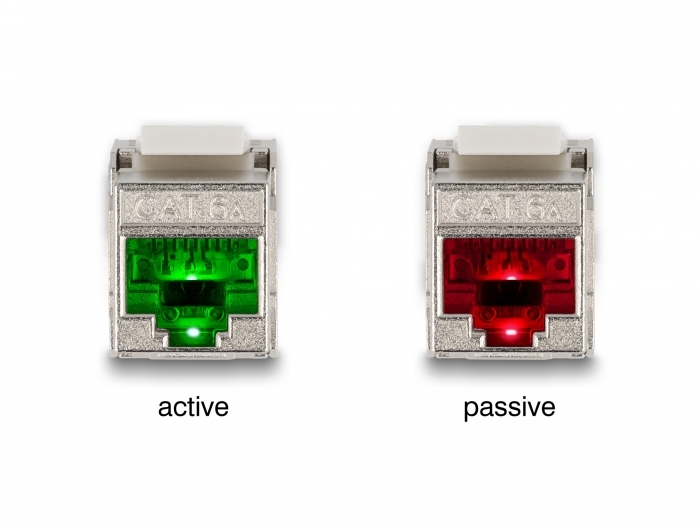

An LED is integrated on the Keystone module to indicate whether there is an active POE connection to the network or not. The LED lights up green for an active connection and red for a passive connection.

Specification:
• Connectors:
1 x RJ45 jack (8P/8C) >
1 x LSA 180° (toolfree)
• Cat.6A specification
• LED indicator: green (active) / red (passive)
• Shielded (STP)
• TIA-568A/B pinout
• For solid or stranded wire (24 - 22 AWG)
• For Keystone ports with 19.2 x 14.9 mm
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): ca. 38 x 20 x 16 mm

Package content:
• Keystone module

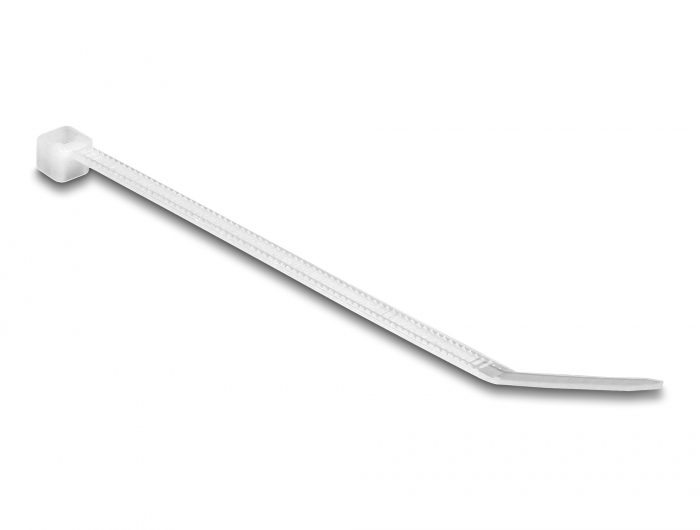

• Zip-tie

Data sheet:
http://www.delock.de/produkt/87856/pdf.html?sprache=en
