Delock DIN rail Adapter with Keystone Module RJ45 jack Cat.6A LSA

Reference 86014

Condition: New

More info

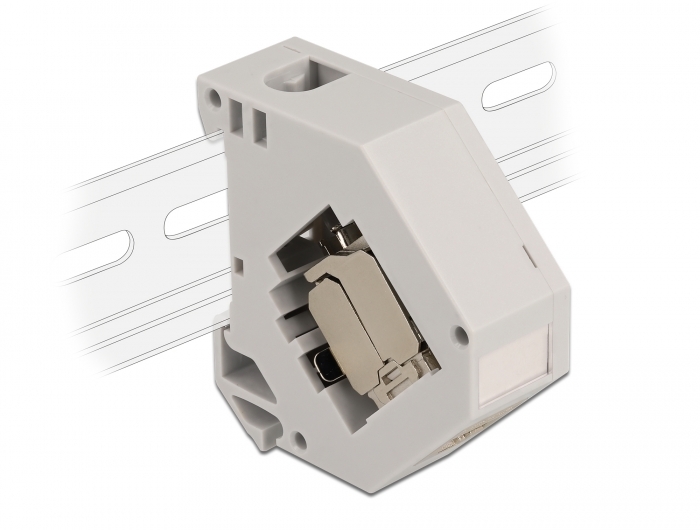

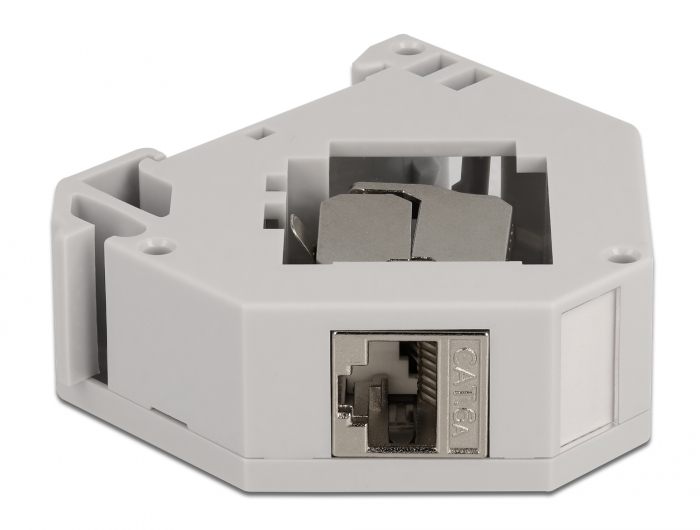

This adapter by Delock contains a suitable keystone module with an RJ45 jack that can be used to connect a network cable. At the same time, the adapter can be attached to a 35 mm wide DIN rail to enable e.g. the installation in a network cabinet. The adapter also has a small labelling field which can be individually labelled or provided with various symbols.

System requirements:
• 35 mm DIN rail

Specification:
• Connectors:
1 x RJ45 jack >
1 x Cat.6A LSA (toolfree)
• Cat.6A specification
• Shielded (STP)
• DIN rail mounting: 35 mm
• Stackable
• With labelling field
• For cable diameter from 6.0 - 8.5 mm
• For solid or stranded wire (23 - 26 AWG)
• Operating temperature: -40 °C ~ 85 °C
• Material: plastic, metal
• Colour: grey
• Dimensions (LxWxH): ca. 60.1 x 59.4 x 21.6 mm

Package content:
• DIN rail adapter with Keystone module

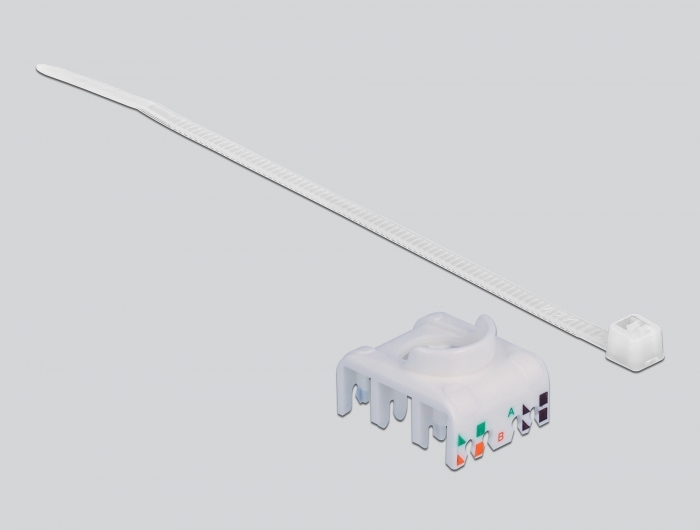

• Cable manager
• Zip-tie
