New

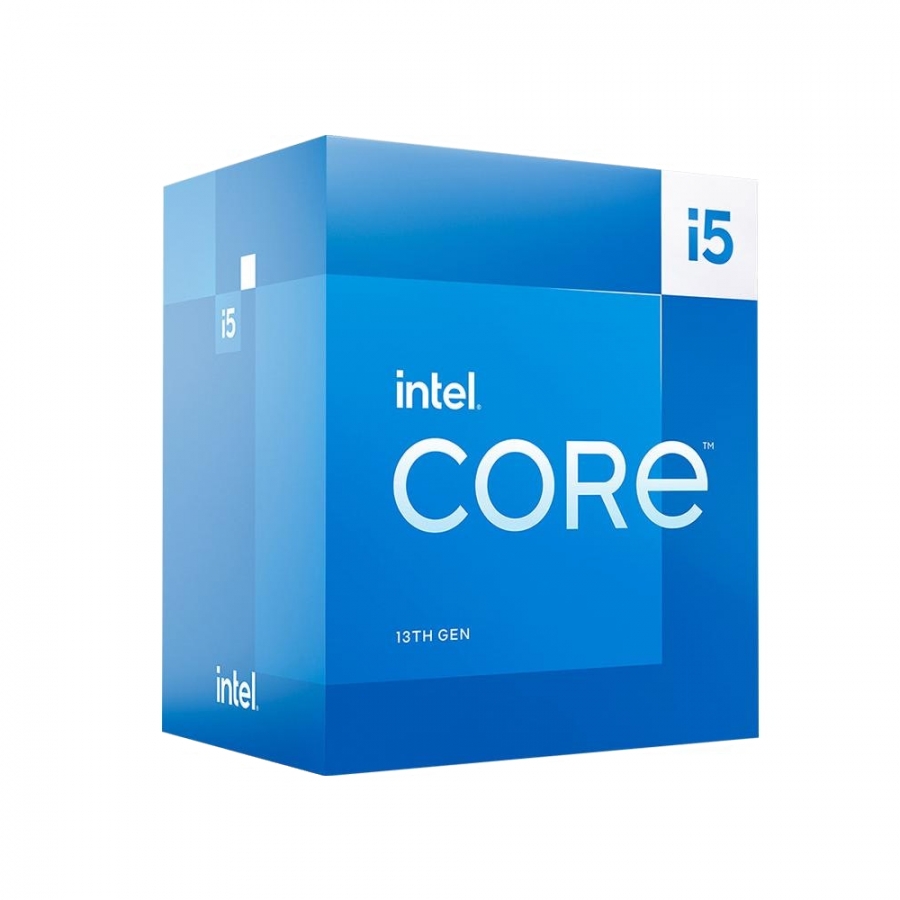

Intel Core i5 13400 LGA1700 20MB Cache 2,5GHz retail

Manufacturer: Intel

Reference BX8071513400

Condition: New

More info

Intel® Gaussian & Neural Accelerator Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.Intel® Deep Learning Boost (Intel® DL Boost) A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.Intel® Turbo Boost Technology Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.Intel® 64 Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.Idle States Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.Thermal Monitoring Technologies Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.Intel® Volume Management Device (VMD) Intel® Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.

Processor family	Intel® Core™ i5
Processor cores	10
Processor socket	LGA 1700
Box	Y
Processor manufacturer	Intel
Processor model	i5-13400
Processor operating modes	64-bit
Processor generation	13th gen Intel® Core™ i5
Processor threads	16
Performance cores	6
Efficient cores	4
Processor boost frequency	4.6 GHz
Performance-core boost frequency	4.6 GHz
Performance-core base frequency	2.5 GHz
Efficient-core boost frequency	3.3 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Processor base power	65 W
Maximum turbo power	154 W
Maximum number of DMI lanes	8
Processor codename	Raptor Lake
Processor ARK ID	230495
Memory channels	Dual-channel
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Memory bandwidth (max)	76.8 GB/s
On-board graphics card	Y
Discrete graphics card	N
On-board graphics card model	Intel UHD Graphics 730
Discrete graphics card model	Not available
On-board graphics card outputs supported	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1550 MHz
Number of displays supported (on-board graphics)	4
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	120 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card ID	0x4682/0xA782
Number of execution units	24
Multi-Format Codec Engines	1
Execute Disable Bit	Y
Idle States	Y
Thermal Monitoring Technologies	Y
Market segment	Desktop
Use conditions	PC/Client/Tablet
Maximum number of PCI Express lanes	20
PCI Express slots version	4.0, 5.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
CPU configuration (max)	1
Embedded options available	Y
Direct Media Interface (DMI) Revision	4.0
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Y
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Enhanced Intel SpeedStep Technology	Y
Intel® Speed Shift Technology	Y
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Y
Intel® Control-flow Enforcement Technology (CET)	Y
Intel® Thread Director	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel® Secure Key	Y
Intel® OS Guard	Y
Intel 64	Y
Intel Virtualization Technology (VT-x)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel Turbo Boost Max Technology 3.0	N
Intel® Boot Guard	Y
Intel® Deep Learning Boost (Intel® DL Boost)	Y
Intel® Volume Management Device (VMD)	Y
Mode-based Execute Control (MBE)	Y
Intel® Standard Manageability (ISM)	Y
Tjunction	100 °C
OpenCL version	3.0
Harmonized System (HS) code	8542310001
Processor package size	45 x 37.5 mm
L2 cache	9728 KB
Launch date	Q1'23
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1
