Level One LevelOne IPCam FCS-3403 Dome Out 4MP H.265 IR 9W PoE

LEVEL ONE

FCS-3403

New

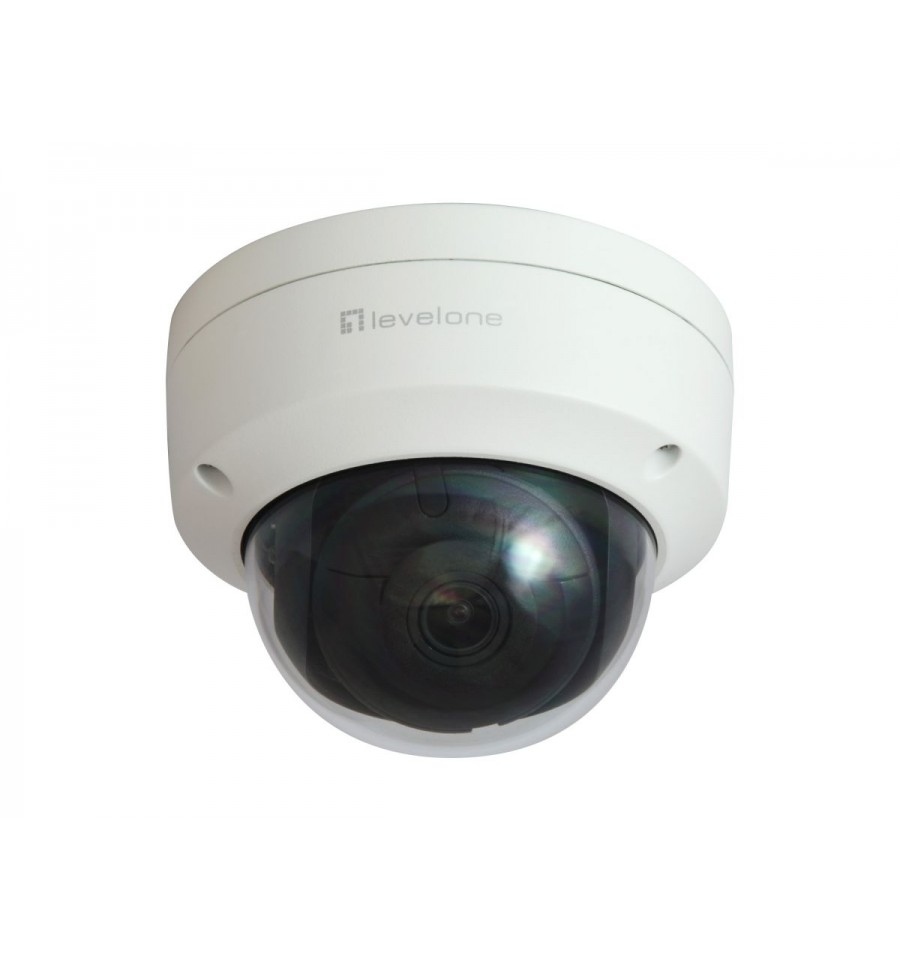

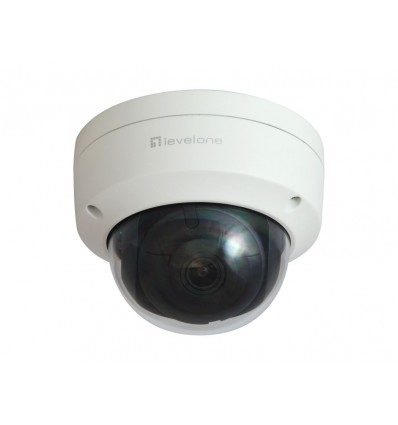

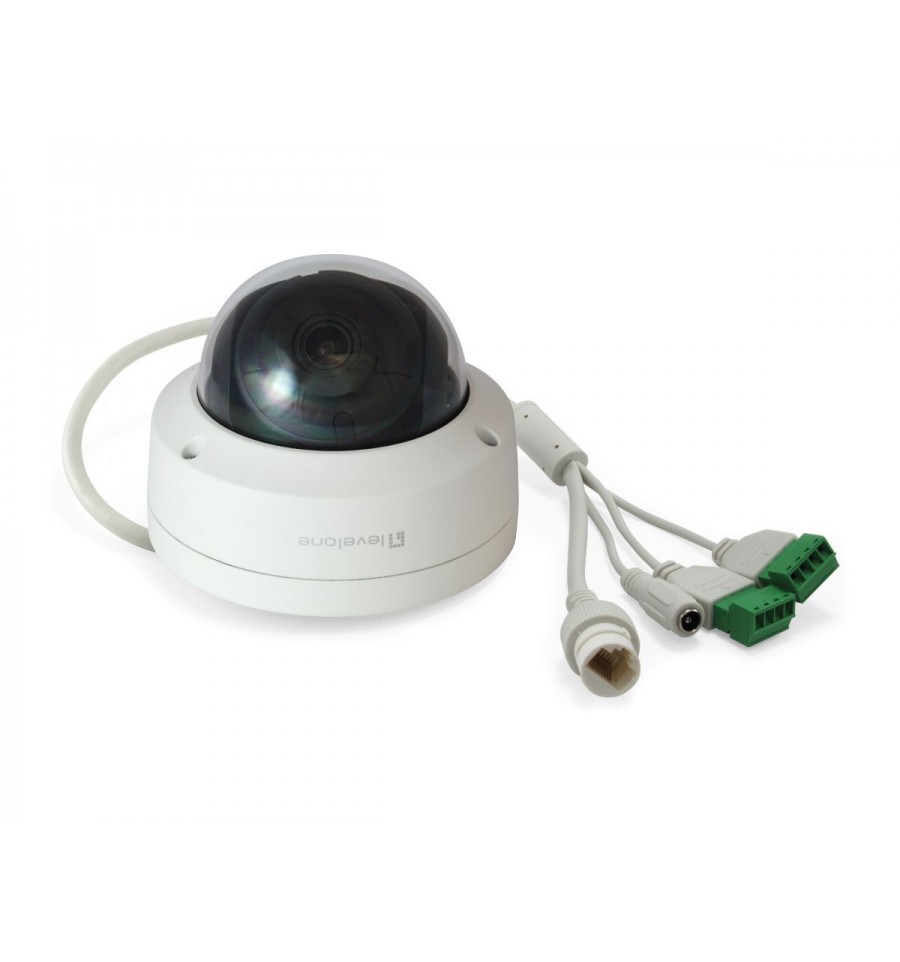

FCS-3403 GEMINI Fixed Dome IP Camera, 4-MP, H.265

Model Number
FCS-3403
SKU
57304907
  • Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
  • Free CMS (Central Management System) software with 64-channel license
  • Built-in Micro SD/SDHC/SDXC card slot for local storage
  • Built-in infrared LEDs for night viewing up to 30m
  • 4-Megapixel high-definition resolution
  • Video compression: H.264, H.265, MJPEG
  • Weatherproof IP66-rated housing

The LevelOne FCS-3403 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Other

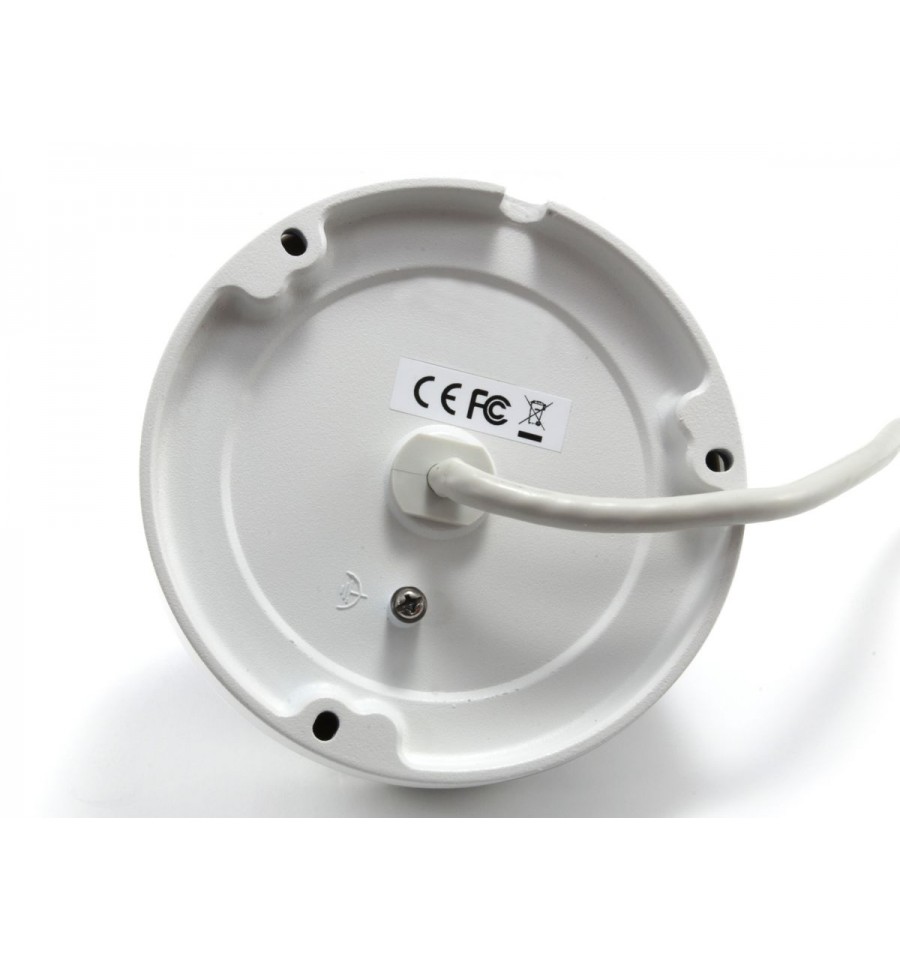

Approval and complianceCE,FCC,TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection,IP67,IK10,RoHS
Supported browsersIE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
Operating temperature-30°C ~ 60°C
Storage temperature0°C ~ 95°C
System specifications
Angle of View (°)Horizontal field of view: 86 Vertical field of view: 46ﾡ Diagonal field of view: 102ﾡ
Audio formatG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Image sensor1/2.7" Progressive Scan CMOS
IndicatorsPower
IR cut filterYes
IR rangeUp to 30 meter
LensLens Mount:M12 4 mm @F2.0
ResolutionMain Stream:
50Hz: 25fps (1920 * 1080, 1280 * 960, 1280 * 720)
60Hz: 30fps (1920 * 1080, 1280 * 960, 1280 * 720)
Sub Stream:
50Hz: 25fps (640 * 480, 640 * 360, 320 * 240)
60Hz: 30fps (640 * 480, 640 * 360, 320 * 240)
Third Stream:
50Hz: 25fps (1920 * 1080, 1280 * 720, 640 * 360, 352 * 288)
60Hz: 30fps (1920 * 1080, 1280 * 720, 640 * 360, 352 * 240)
Shutter time1/3 s to 1/100,000 s

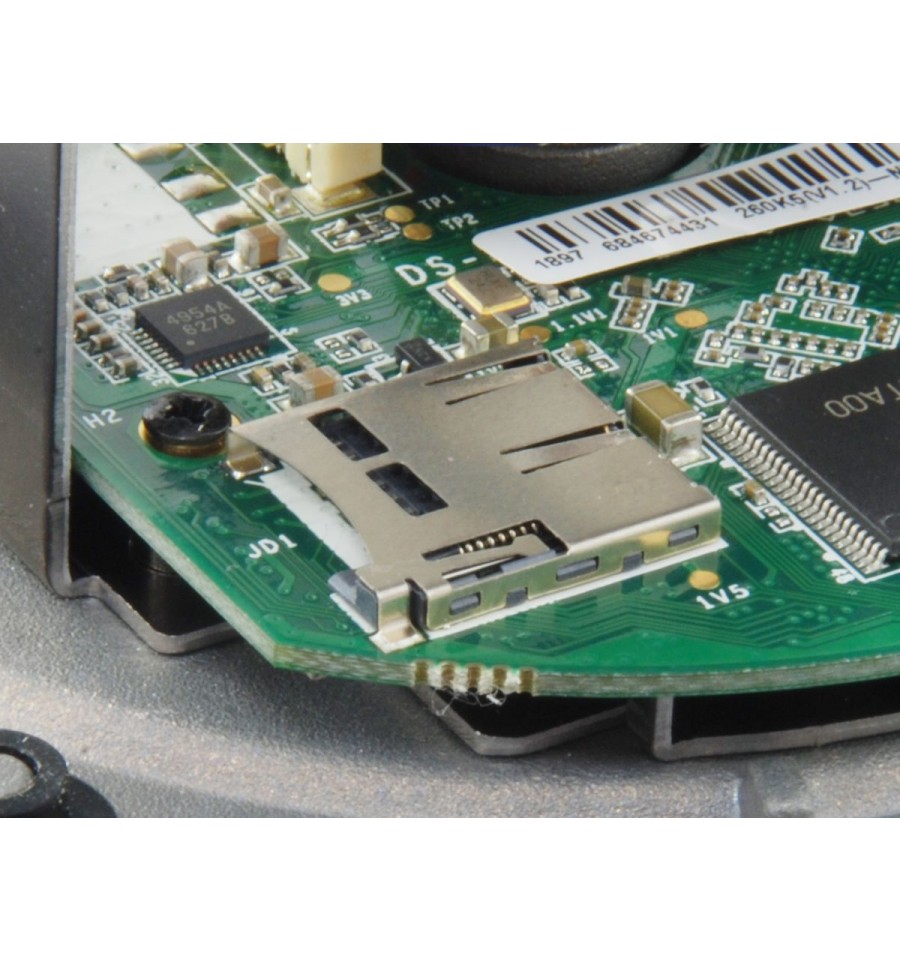

Storage capacityBuilt-in MicroSD/SDHC/SDXC slot, up to 128G
StandardsIPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP,SNMP, QoS
Video formatMain stream: H.265/H.264 Sub stream: H.265/H.264 /MJPEG Third stream: H.265/H.264
Features
FeaturesOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Physical Specifications
Product weight (kg)0,5
Default
ColorWhite
EAN4015867207703
Model NumberFCS-3403
Package contentsFCS-3403
Screw Kit
Quick Installation Guide
Resource CD (User Manual, Utility, QIG)
Filter
Camera TypeDome
ResistanceWeatherproof
Zoom TypeFixed
2-way AudioYes
IR Leds for night visionYes
PoE SupportedYes
Max. Resolution4 Megapixels
IP Camera seriesGEMINI
Akeneo
Power consumption12 VDC, 0.7 A, max. 8.5W, ? 5.5mm coaxial plug power
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Dimensions (W x D x H)111 x 111 x 82 mm
