Zyxel Switch 5x GE GS105S v2 Kunststoff

ZYXEL

GS-105SV2-EU0101F

New

High-performance Gigabit for Optimized Video and Online Gaming Experience
The ZyXEL GS-105S v2 5-Port Desktop Gigabit Ethernet Media Switch can easily connect multiple media devices to home networks at blazing-fast Gigabit simultaneously. Moreover, the newly designed GS-105S v2 allow smooth video streaming and online gaming activities.

Plug-and-play, stylish design
With the easy plug-and-play features, you can connect the ZyXEL GS-105S v2 to VoIP, media players, game consoles, TV set-top box or Web browsing devices to your home network without any configuration effort. The stylish modern look and streamlined design also make the GS-105S v2 fits nicely in the house.

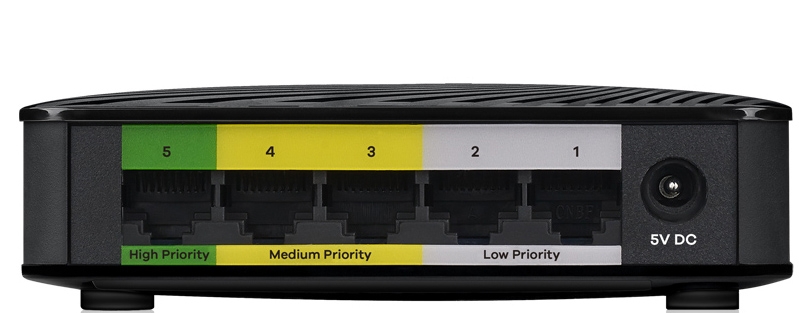

Bi-color LED indicators for Ethernet port status
The ZyXEL GS-105S v2 features auto-sensing function and front Gigabit Ethernet ports with easy-to-understand LED indicators, which allows users to quickly check link and activity status at a glance.

Blazing-fast Gigabit data transmission
The ZyXEL GS-105S v2 10/100/1000 Mbps switch is designed to provide reliable high-performance media network connectivity 10 times faster than Fast Ethernet. It perfectly fulfills the demands for multimedia streaming and online gaming at the same time.

Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Power connectorDC-in jack
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Full duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address table2000 entries
Switching capacity10 Gbit/s
Store-and-forward
Jumbo frames support
IGMP snooping
Product colourBlack
LED indicators
CertificationCE, FCC Class B, BSMI
Internal memory0.128 MB
Buffer size128 KB
Plug and Play
AC input voltage100 - 240 V
Power consumption (typical)2.5 W
Power over Ethernet (PoE)
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width106 mm
Depth75 mm
Height32 mm
Weight105 g
User guide
Package width127 mm
Package depth82 mm
Package height95 mm
Package weight205 g
Harmonized System (HS) code85176990
